'Gi3'310
~3.11
4.
Connect possible accessories and check they are functioning.
If the automation encounters an obstacle during closure, it is detected and the automation opens again.
If the automation encounters an obstacle during opening, it is detected and the automation stops.
if the obstacle is detected twice in a row, it is considered as the new stop until it is removed.
Warning: check fhe operafing force and fhat the contacf force between fhe door and fhe obstacle is lower fhan that indicated
by the DIN 18650-1 standard.

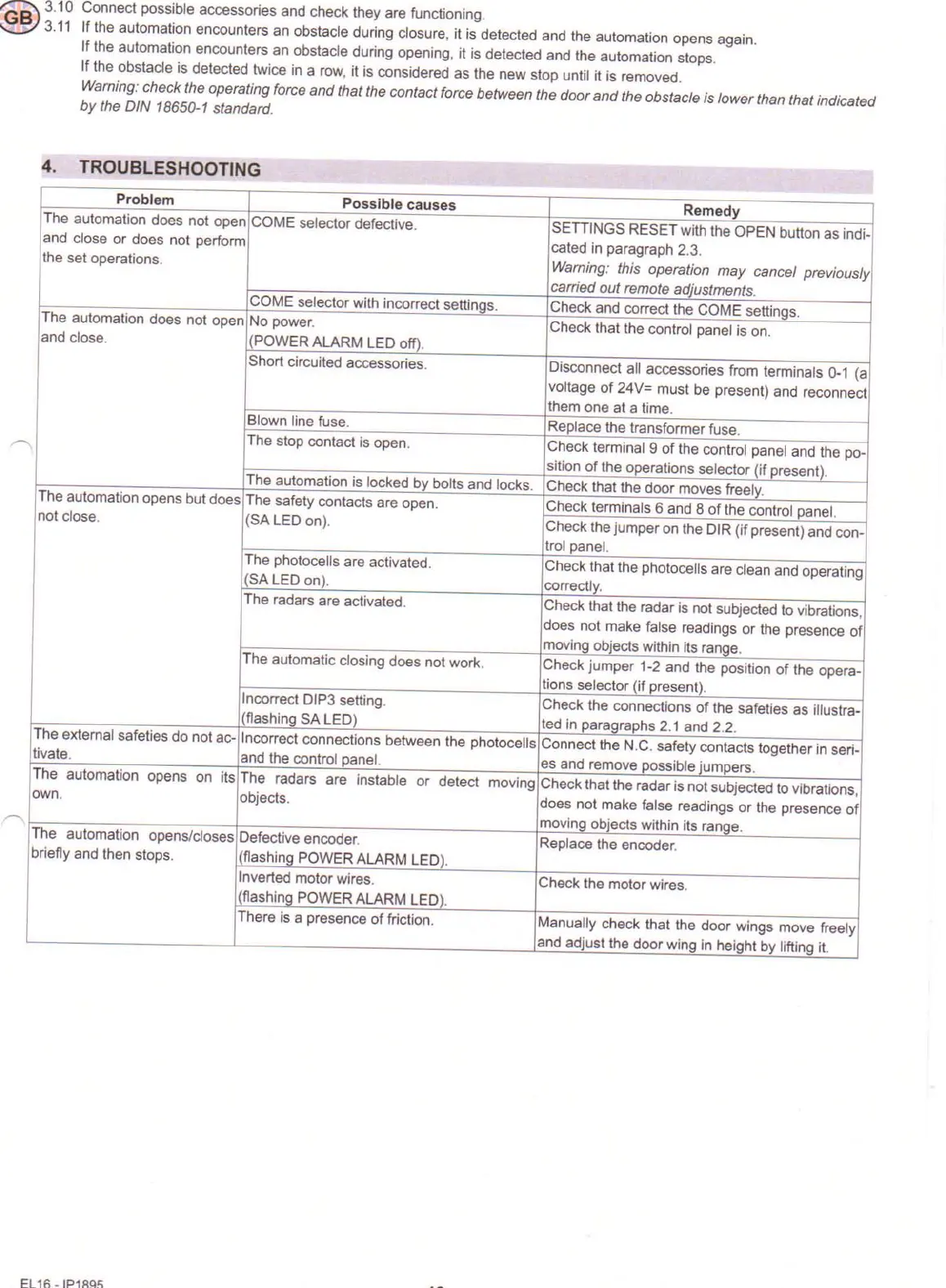

TROUBLESHOOTING
Problem
Possible causes
Remedy
The automation does not open
COME selector defective.
SETIINGS RESET with the OPEN button as indi-
and close or does not perform
cated in paragraph 2.3.
the set operations.
Warning: this operation may cancel previously
carried out remote adjustments.
COME selector with incorrect settings.
Check and correct the COME settings.
The automation does not open
No power.
Check that the control panel is on.
and close.
(POWER ALARM LED off).
Short circuited accessories.
Disconnect ali accessories from terminais 0-1 (a
voltage of 24V= must be present) and reconnect
them one at a lime.
Blown line fuse.
Replace the transformer fuse.
The stop contact is open.
Check terminal 9 of the control panel and the po-
sition of the operations selector (if present).
The automation is locked by bolts and locks.
Check that the door moves freely.
The automation opens but does
The safety contacts are open.
Check terminals 6 and 8 of the control panel.
not close.
(SA LED on).
Check the jumper on the DIR (if present) and con-
trol panel.
The photocelis are activated.
Check that the photocelis are clean and operating
(SA LED on).
correctly.
The radars are activated.
Check that the radar is not subjected to vibrations,
does not make false readings or the presence of
moving objects within its range.
The automatic closing does not work.
Check jumper 1-2 and the position of the opera-
tions selector (if present).
Incorrect DIP3 setting.
Check the connections of the safeties as iIIustra-
flashing SA LED)
ted in paragraphs 2.1 and 2.2.
The external safeties do not ac-
Incorrect connections between the photocells
Connect the N.C. safely contacts together in seri-
tivate.
and the control panel.
es and remove possible jumpers.
The automation
opens on
its
The radars are instable or detect moving
Check that the radar is not subjected to vibrations,
own.
objects.
does nol make false readings or lhe presence of
moving objects within its range.
The automation opens/closes
Defective encoder.
Replace the encoder.
briefly and then stops.
flashing POWER ALARM LED).
Inverted motor wires.
Check the motor wires.
flashing POWER ALARM LED).
There is a presence of friction,
Manually check that the door wings move freely
and adjust the door wing in height by lifting it.
EL16 -IP189S
