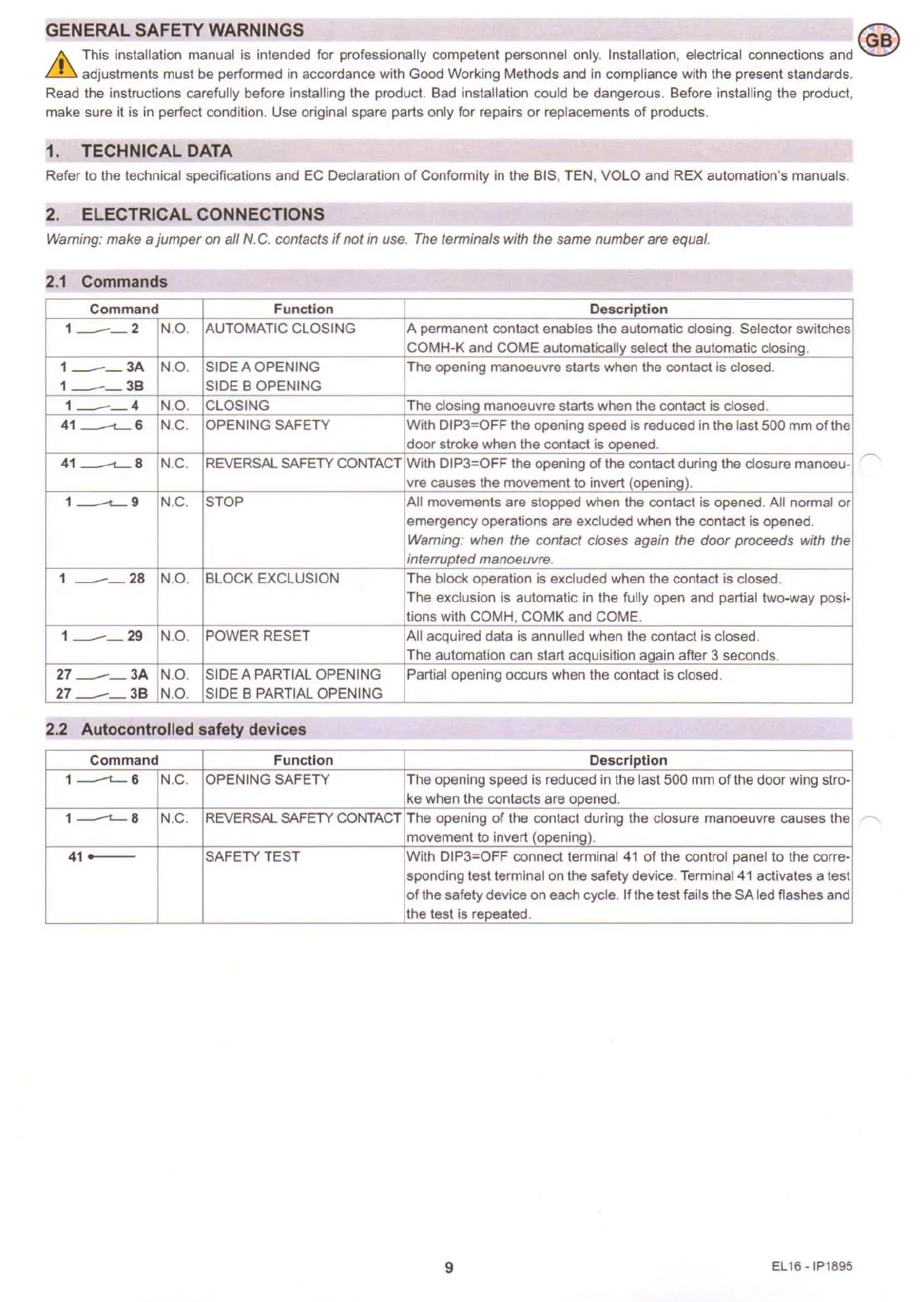

GENERAL SAFETY WARNINGS
W
"" This installation manual is intended for professionally competent personnel only. Installation, electrical connections and ~
~ adjustments must be performed in accordance with Good Working Methods and in compliance with the present standards.
Read the instructions carefully before installing the product. Bad installation could be dangerous. Before installing the product,
make sure it is in perfect condition. Use original spare parts only for repairs or replacements of products.
1, TECHNICAL DATA
Refer to the technical specifications and EC Declaration of Conformity in the BIS, TEN, VOLO and REX automation's manuals.
2. ELECTRICAL CONNECTIONS
Warning: make
a
jumper on all N.C. contacts if not in use. The terminals with the same number are equal.
2,1 Commands
Command Function Description
1__ 2
N.O. AUTOMATIC CLOSING A permanent contact enables the automatic closing. Selector switches
COMH-K and COME automatically select the automatic closing.
1__
3A
N.O. SIDE A OPENING
The opening manoeuvre
starts
when the contact is closed.
1_
3B SIDE B OPENING
1__ 4
N.O. CLOSING The closing manoeuvre starts when the contact is closed.
41--L-6
N.C. OPENING SAFETY
With DIP3=OFF the opening speed is reduced in the last 500 mm of the
door stroke when the contact is opened.
41--L-8
N.C. REVERSAL SAFETY CONTACT
With DIP3=OFF the opening of the contact during the closure manoeu-
vre causes the movement to invert (opening).
1--L-9
N.C. STOP
All
movements are
stopped when the contact is opened. All normal or
emergency operations are excluded when the contact is opened.
Warning: when the contact ctoses again the door proceeds with the
interrupted manoeuvre.
1 __ 28
N.O. BLOCK EXCLUSION The block operation is excluded when the contact is closed.
The exclusion is automatic in the fully open and partial two-way posi-
tions with COMH, COMK and COME.
1__ 29
N.O. POWER RESET All acquired data is annulled when the contact is closed.
The automation can start acquisition again after 3 seconds.
27__
3A
N.O. SIDE A PARTIAL OPENING Partial opening occurs when the contact is closed.
27__
3B
N.O. SIDE B PARTIAL OPENING
2,2 Auloconlrolled safety devices
Command
Function Description
1--L-6
N.C. OPENING SAFETY The opening speed is reduced in the last 500 mm of the door wing stro-
ke when the contacts are opened.
1--L-8
N.C.
REVERSAL SAFETY CONTACT
The opening of the contact during the closure manoeuvre causes the
movement to invert (opening).
410----
SAFETY TEST With DIP3=OFF connect terminal
41
of the control panel to the corre-
sponding test terminal on the safety device. Terminal
41
activates a test
of the safety device on each cycle. If the test fails the SA led flashes and
the test is repeated.
9
EL 16 -IP1895
