Output Value
Description
1
~+
Accessories power supply. External accessories power supply output.
0
~
.
24 V= 1 0.5 A (max)
1
+
General Purpose. See hardware key instructions.
24V=10,lA
GP
.
The control panel connects the battery and keeps it charged only when there is
mains power;
it
is used as a buffer battery or when there is no mains power and
disconnects after 30 seconds when the voltage drops below 22 V.
BAT
2x12 V 12 Ah
To charge the batteries, connect the mains power and the batteries at least 30
seconds before starting the system. The power supply and the batteries must
be disconnected in order to switch off the control panel.
Warning: the control panel must be connected to the batteries at all times.
BL 24 V= 11 A
Blocking device, Blocking device power supply output.
COM
Allows the connection of possible command for distances under 4,5 m.
DIR
Allows the connection to the OIR commands branch card.
OPEN OPENING
The opening operation is activated with a brief press.
SETIINGS RESET
Keep the OPEN button pressed (for 4 s), until the IN LEO starts to fiash. To
[Q]
confirm the operation, press the OPEN button again for 2 seconds within 4
seconds.
The SETIINGS RESET annuls all the remote software settings made via
OMCS, TEL2, COME. After SETTINGS RESET it is possible to adjust the con-
trol panel directly.

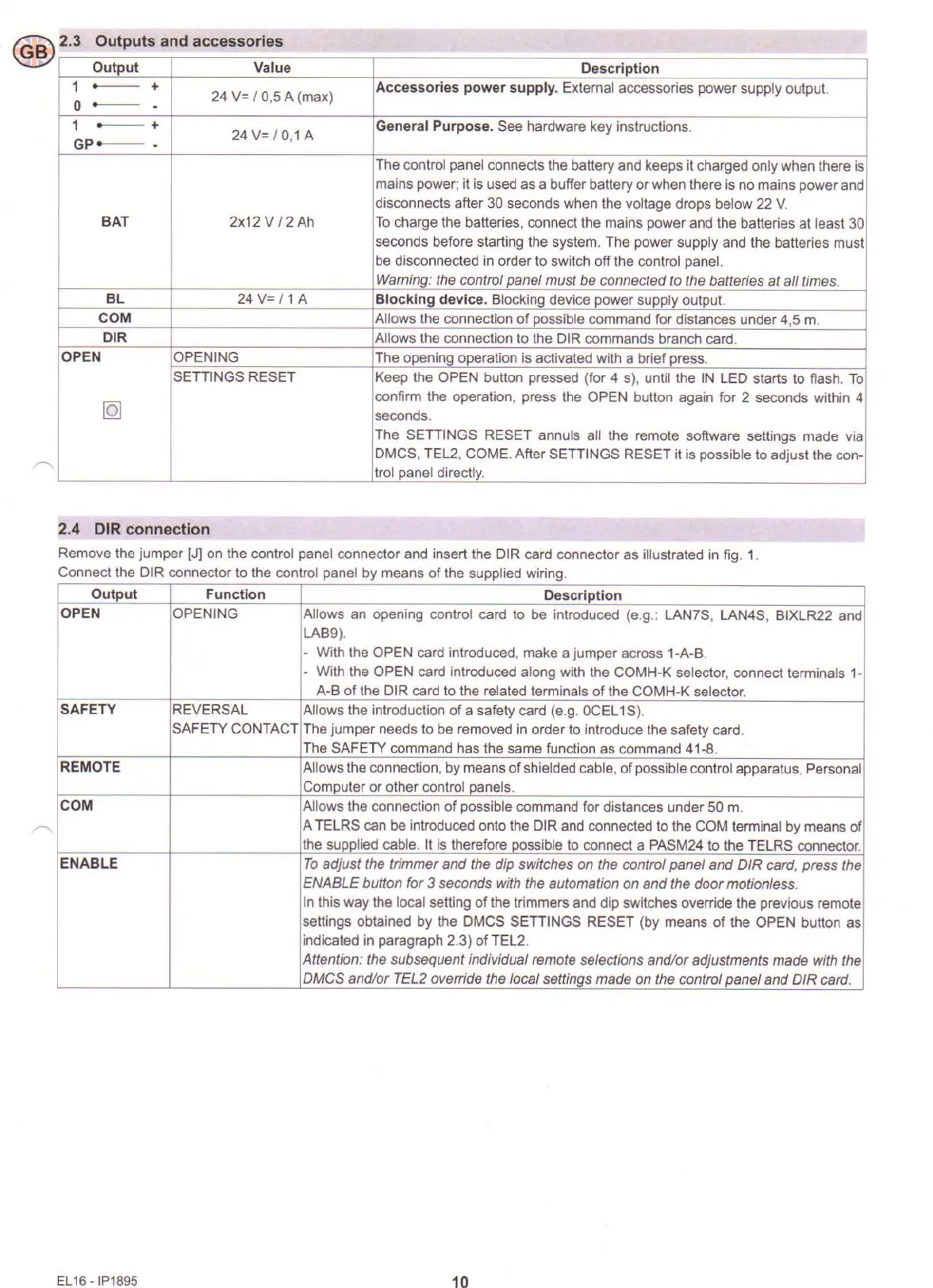

~ 2.3 Outputs and accessories
2.4 DIR connection
Remove the jumper [J] on the control panel connector and insert the OIR card connector as illustrated in fig. 1.
Connect the OrR connector to the control panel by means of the supplied wiring.
Output Function
Description
OPEN
OPENING
Allows an opening control card to be introduced (e.g.: LAN7S, LAN4S, BIXLR22 and
LAB9) .
• With the OPEN card introduced, make a jumper across l-A-B.
- With the OPEN card introduced along with the COMH-K selector, connect terminals 1-
A-B of the OIR card to the related terminals of the COMH-K selector.
SAFETY
REVERSAL
Allows the introduction of a safety card (e.g. OCEL1S).
SAFETY CONTACT
The jumper needs to be removed in order to introduce the safety card.
The SAFETY command has the same function as command 41.8.
REMOTE
Allows the connection, by means of shielded cable, of possible control apparatus, Personal
Computer or other control panels.
COM
Allows the connection of possible command for distances under 50 m.
A TELRS can be introduced onto the OIR and connected to the COM terminal by means of
the supplied cable. It is therefore possible to connect a PASM24 to the TELRS connector.
ENABLE
To adjust the trimmer and the dip switches on the control panel and DIR card, press Ihe
ENABLE button for 3 seconds with the automation on and tha door molionless.
In this way the local setting of the trimmers and dip switches override the previous remote
settings obtained by the OMCS SETTINGS RESET (by means of the OPEN button as
indicated in paragraph 2.3) of TEL2.
Attention: the subsequent individual remote selections and/or adjustments made with the
DMCS and/or TEL2 override the local settings made on the control panel and DIR card.
EL16 - IP1895
10
