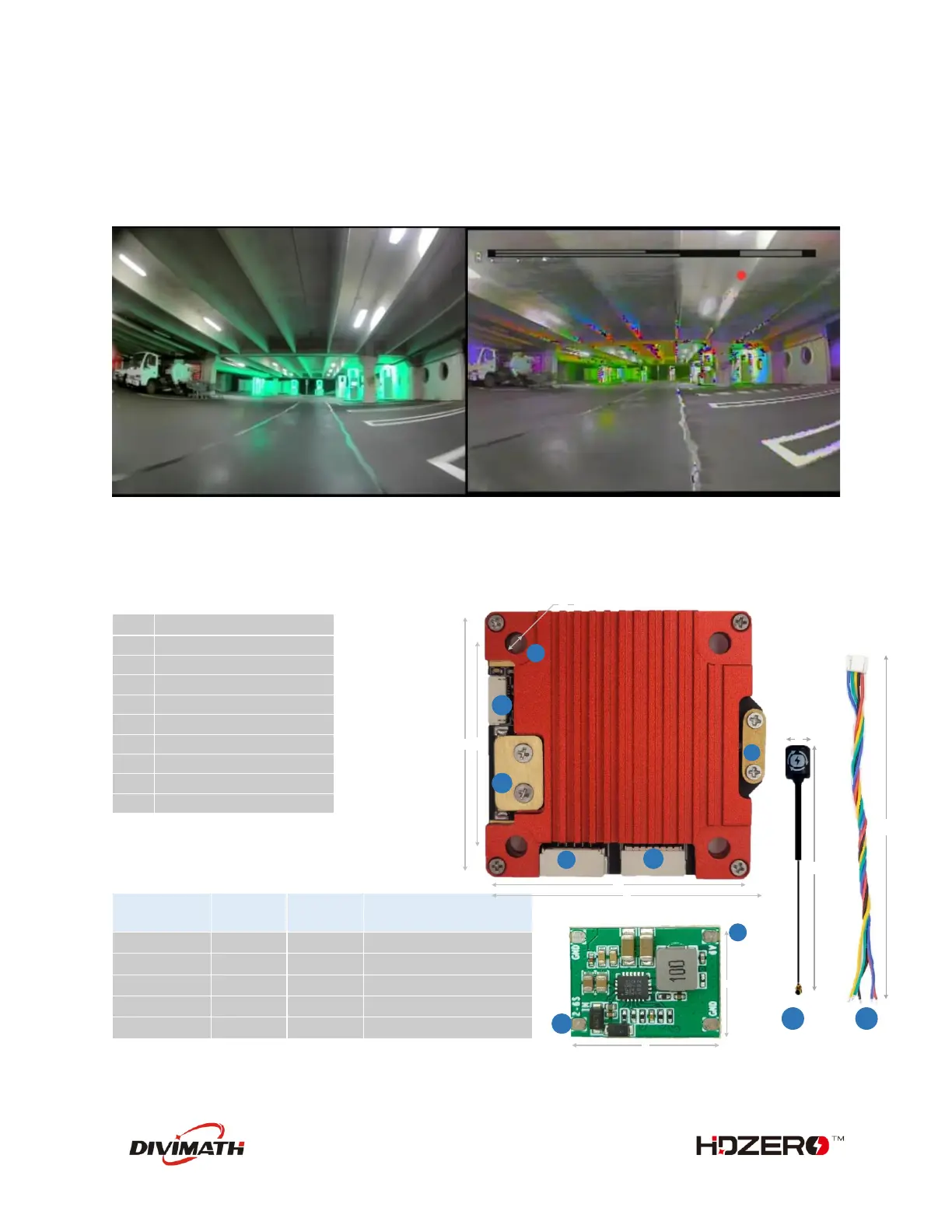

HDZero Freestyle Video Transmitter
The HDZero Freestyle VTX offers unprecedented range and performance for the HDZero 5.8GHz digital
FPV system. With its high maximum output power and robust construction, this VTX is perfect for
freestyle and long-range builds.
With a tested maximum range of more than 18 miles, the Freestyle VTX will transmit a digital FPV feed
as far as you’re willing to fly. Not interested in long range? You’ll also see better performance in urban
environments and around obstacles, with none of the color noise or multipath interference issues of
analog video.
1
Secured MIPI Connector
2
Keypad Connector
3
M3 Mouting Hole
4
Secured U.FL Connector
5
FW Update Connector
6
Power/UART Connector
7
BEC Power in (2S-6S)
8
BEC Power Out Pad
9
RHCP Antenna
10
Power/UART Harness
Power/UAR
T Connector
Cable
Color
Connected with
Ground
Black
Ground
Power
Red
Power (7-17V, 4S Max)
RX
Green
FC.TX
TX
Yellow
FC.RX
SA
Blue
FC.SA (TX), Optional
10
105
150
9 10
40
42
40
3.4
1
2
3
4
5
6
30.5
20
14
7
8
