DIVIMATH HDZero Freestyle - Page 9

9

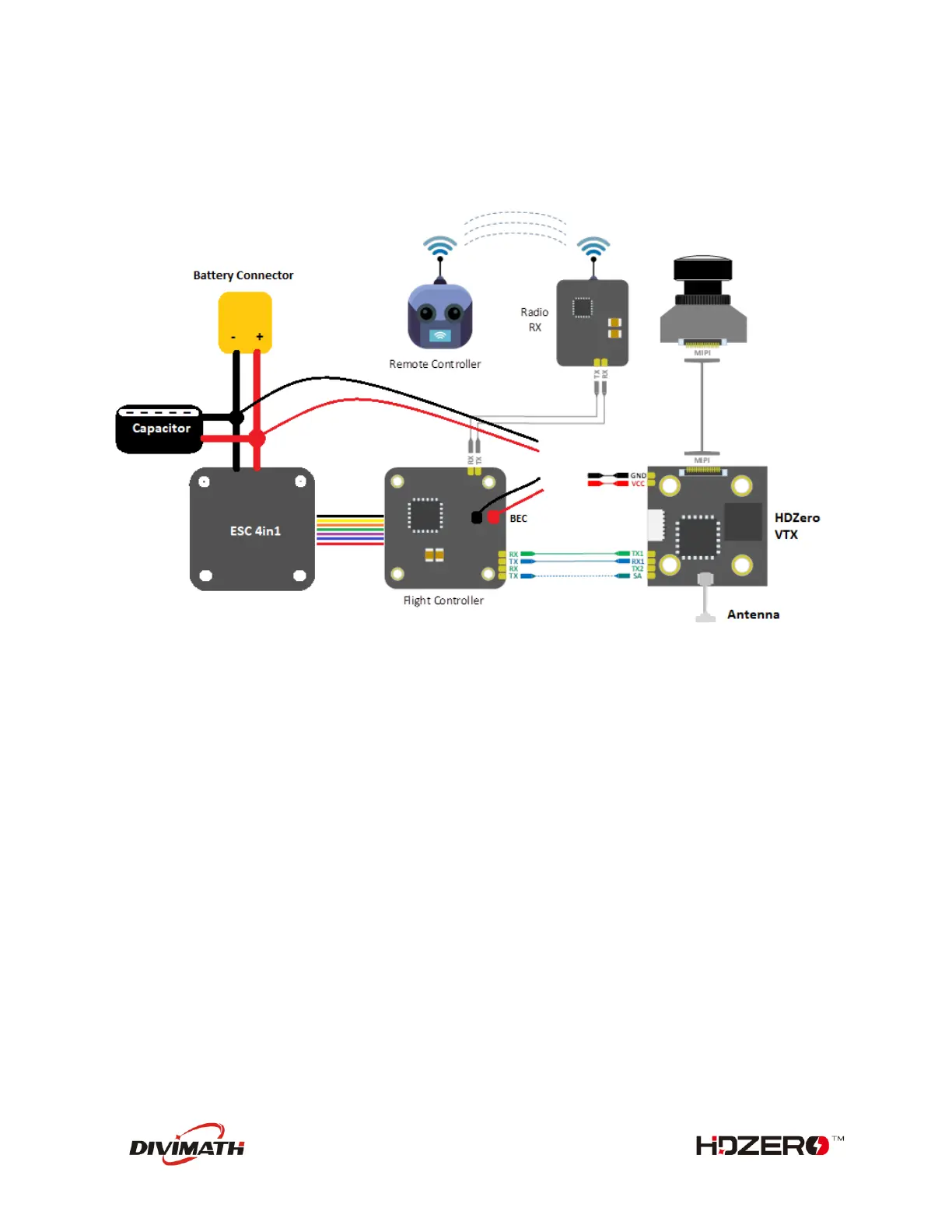

HDZero VTX Installation Guide
Notes:
- VTX can be powered by VBAT or BEC. Check each VTX’s power requirement above;
- Use of capacitor is mandatory for HDZERO VTX;
- One UART is needed for OSD, Camera, VTX menu;
- Never apply power on VTX without antenna installed and secured;
- Use RHCP antennas to match with SharkByte VRX RHCP patch antennas;
- Whoop VTX does not have SA pin, and it does not support SmartAudio.
