dixell iCHiLL IC200CX Series Quick Reference Guide

1592022750 Quick reference guide IC 200CX Rel. 1.1 25/05/2009
Pag. 8/58

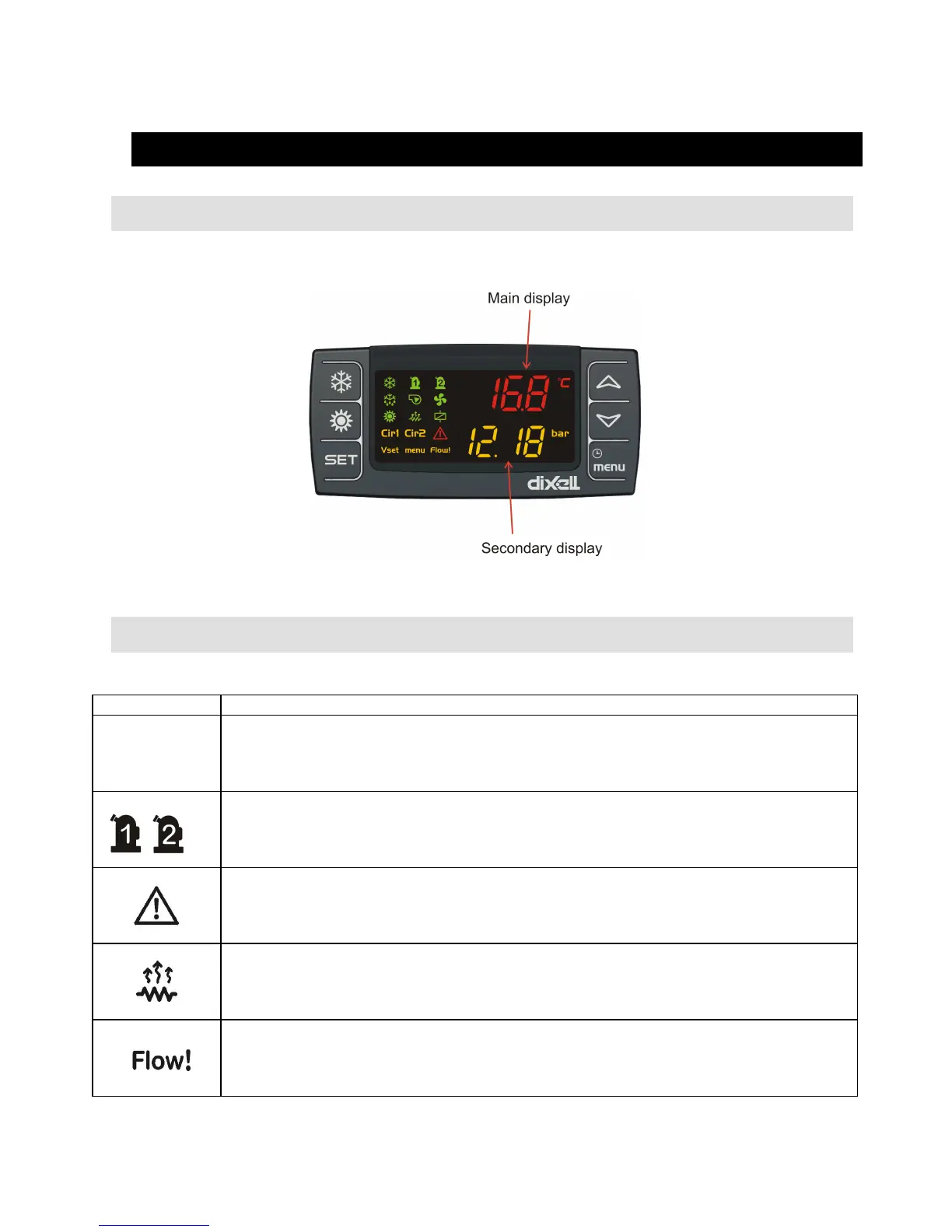

3 USER INTERFACE
3.1 DISPLAY CONFIGURATION
3.2 ICONS MEANING
ICON MEANING / FUNCTIONNING
°C -°F
BAR-PSI
Lighted when the display shows a temperature or pressure
Lighted when a compressor is activated
Blinking = when the delay of activation is running
Alarm: blinking in case of alarm
Lighted if anti freeze heaters/ integration heating / boiler are activated
Flow alarm/ (differential) pressure switch / supply fan thermal (air / air unit): is
blinking if the configuration of the digital input is active

dixell iCHiLL IC200CX Series Specifications

General

Category	Temperature Controller
Frontal Protection	IP65
Series	IC200CX
Resolution	0.1 °C
Accuracy	±0.5 °C
Input Type	NTC
Output Type	Relay
Digital Inputs	1
Mounting	Panel mount
