1592017000 XLR 130-170 GB r2.0 23.03.2015 XL130 - XLR170 7/20

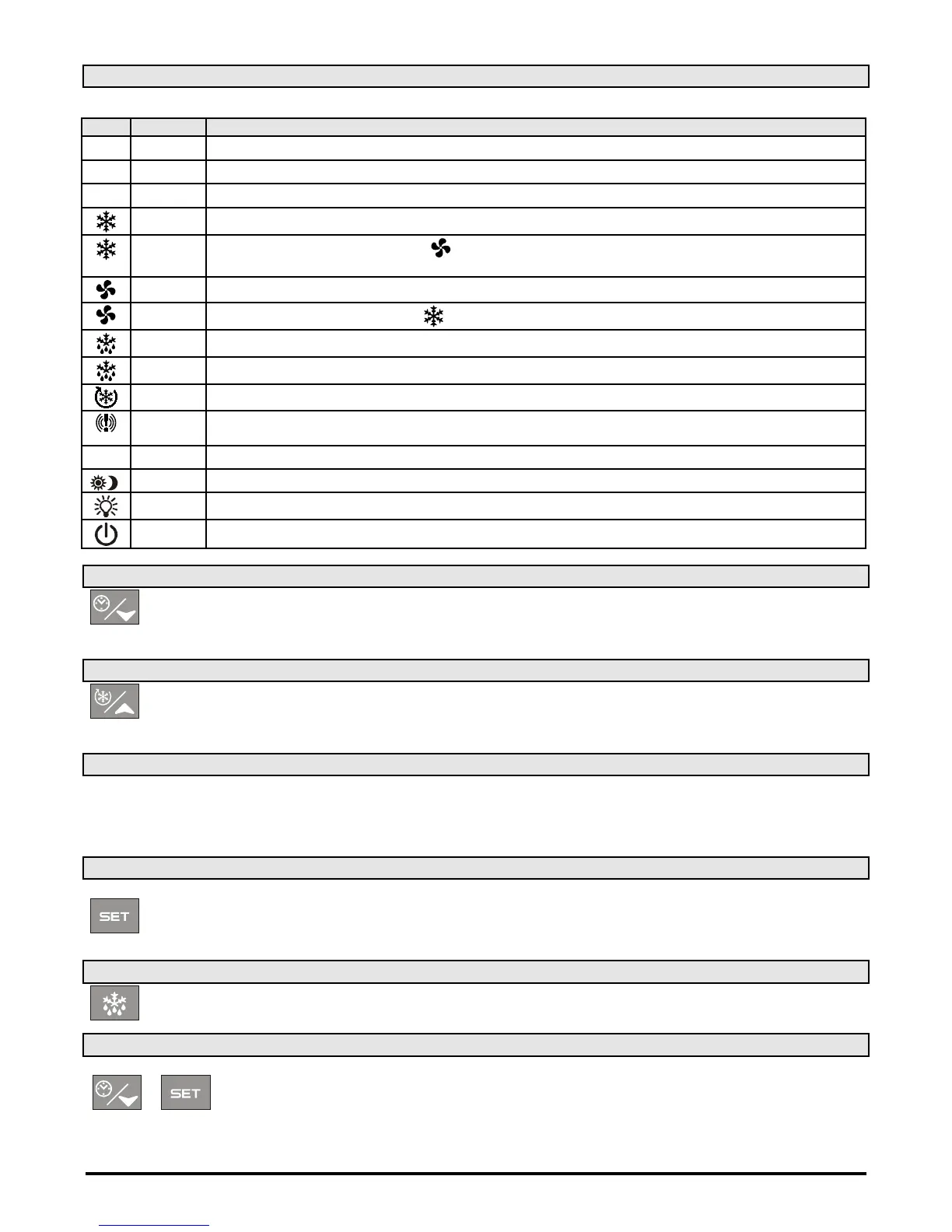

4.1 USE OF LEDS
Each LED function is described in the following table.
LED
MODE
Function
°C
ON
Celsius degrees display
°C
FLASHING
Programming phase
°F
ON
Fahrenheit degrees display
ON
The compressor is running
FLASHING
- Programming Phase (flashing with LED )
- Anti-short cycle delay enabled
ON
The fan is running
FLASHING
Programming Phase (flashing with LED )
ON
The defrost is enabled
FLASHING
Drip time in progress
ON
The Fast Freezing cycle is enabled
ON
- ALARM signal
- In “Pr2” indicates that the parameter is also present in “Pr1”
AUX
ON
Auxiliary output (15-16) on (oA1=AUS).
ON
Energy saving on
ON
Light on
ON
The instrument is off
4.2 4.2 HOW TO SEE THE MIN TEMPERATURE
1. Press and release the n key.
2. The “Lo” message will be displayed followed by the minimum temperature recorded.
3. By pressing the n key or waiting for 5s the normal display will be restored.
4.3 4.3 HOW TO SEE THE MAX TEMPERATURE
1. Press and release the o key.
2. The “Hi” message will be displayed followed by the maximum temperature recorded.
3. By pressing the o key or waiting for 5s the normal display will be restored.
4.4 4.4 HOW TO RESET THE MAX AND MIN TEMPERATURE RECORDED
To reset the stored temperature, when max or min temperature is displayed :
1. Press SET key until “rST” label starts blinking.
N.B. After the installation RESET the temperature stored .
4.5 HOW TO SEE AND MODIFY THE SET POINT
1. Push and immediately release the SET key: the display will show the Set point value;
2. The “°C” LED starts blinking;
3. To change the Set value push the
o
or
n
arrows within 10s.
4. To memorise the new set point value push the SET key again or wait 10s.
4.6 TO START A MANUAL DEFROST
Push the DEF key for more than 2 seconds and a manual defrost will start.
4.7 TO ENTER IN PARAMETERS LIST “PR1”
To enter the parameter list “Pr1” (user accessible parameters) operate as follows:
+
1. Enter the Programming mode by pressing the Set and DOWN key for few seconds (“°C” LED starts blinking).
2. The instrument will show the first parameter present in “Pr1”
