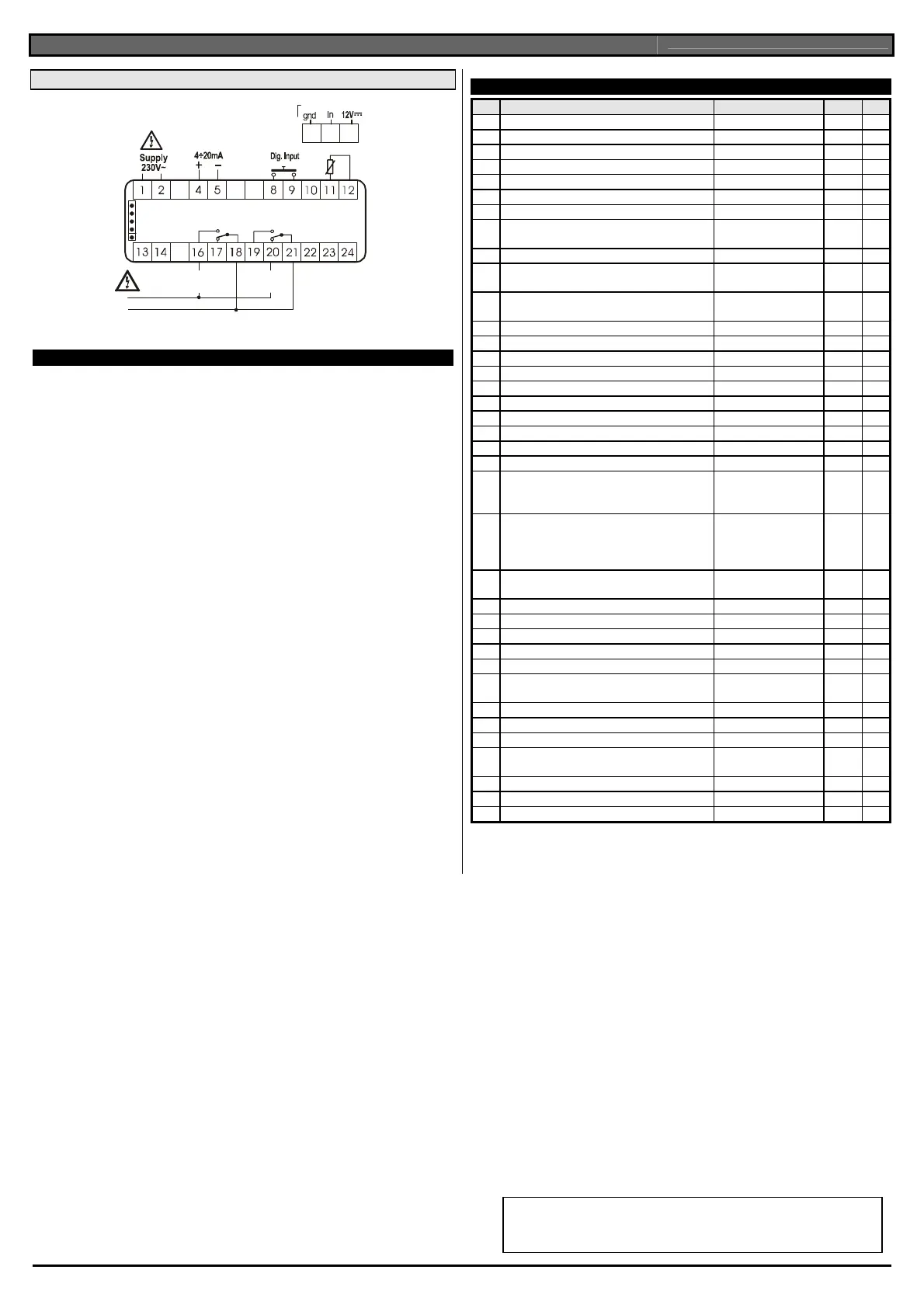

FOR UPDATING 1592002211 XT110-111C-D GB R.1.0 15.12.2004 XT110C – XT111C - XT110D – XT111D 4/4
14.6 XT111D – 230V AC OR. 120V AC OR. 24V AC
Input: 4÷20mA
0÷1V / 0÷10V
10 11 12
Analog
Out
8(3)A250V 8(3)A250V
Line
LOAD 1 Alarm
Hot-KEY
Probe: Pt100=11 - 10 (12); Thermocouple J, K, S= 11(+) - 10(-)
115Vac supply: 1-2; 24Vac supply: 1-2
15. DEFAULT SETTING VALUES
COD Name Range °C/°F Lev
Set
Set point LS1÷US1 0/32 -
Hy1
Differential -Full Sc./ Full Sc. -1/-2 Pr1
LS1
Minimum set point Down Sc./ Set min Pr2
US1
Maximum set point Set/ Full Sc. max Pr2
S1C
Action type output in= Inverse; dir=direct in Pr2
Ac
Anti-short cycle delay: 0÷250 sec 0 Pr2
on
Minimum time a stage stays switched ON 0÷250 sec 0 Pr2
ono
Minimum time between 2 following switching ON
of the same load
0÷120 min 0 Pr2
ALC
Alarm configuration rE=relat.; Ab= absolute rE Pr2
ALL
Minumum alarm (ALC=rE)
(ALC=Ab)
0 ÷ |Start Sc.-Set|
Start Sc.÷ ALu
10.0/ 20 Pr2
ALU
Maximum alarm (ALC=rE)
(ALC=Ab)
0 ÷ |Full Sc.-Set|.
ALL÷ Full Scale
10.0/ 20 Pr2
ALH
Alarm recovery differential 0÷Full scale 2.0/4 Pr2
ALd
Alarm delay 0÷999 min 15 Pr2
dAO
Alarm delay at start up 0÷23h 50min 1.3 Pr2
So1
Output status with faulty pr. oFF=open on=closed oFF Pr2
tbA
1
Alarm relay disabling no; yES yES Pr2
AS
1
Alarm relay polarity CL÷oP oP Pr2
Lci
2
Start scale with current or voltage input -1999÷1999 various Pr1
Uci
2
End scale with current or voltage input -1999÷1999 various Pr1
OPb
Probe calibration -Full Sc./ Full Sc. 0.0 Pr1
rES
Resolution in=NO; dE=0,1; cE=0,01 in Pr2
UdM
Measurement unit (temp.)
(current/voltage)
°C=°C; °F= °F;
0=°C; 1=°F; 2=RH;
3=bar; 4=PSI, 5=off
various Pr1
PbC
Kind of probe Pt=Pt100; J=tcJ; c= tck;
S=tcS; Ptc=PTC; ntc=
NTC; 0-1=0÷1V; 10=
0÷10V; cur=0÷20mA
various Pr1
P3F
3
rd
wire presence no=2 wires;
yES=3 wires
no Pr2
Aoc
3
Analog output setting Pb / Er Pb Pr2
LAo
3
Lower analog output limit: Down Sc./ Full Sc. 0 Pr2
uAo
3
Upper analog output limit: Down Sc./ Full Sc. 0 Pr2
SAo
3
Analog output safety with probe fault oFF / on oFF Pr2
HES
Energy saving differential Down Sc./ Full Sc. 0.0 Pr2
i1F
Digital input configuration c-H / oFF / AuS / HES /
EAL / bAL
EAL Pr2
i1P
Digital input polarity cL=closed; oP=open cL Pr2
did
Alarm delay for dig. input 0÷120m 0 Pr2
Adr
Serial address 0÷247 1 Pr2
OnF
oFF function enabling no=not enabled;
yES=enabled
no Pr2
Ptb
Parameter table Readable only -- Pr2
rEL
Software release Readable only --- Pr2
Pr2
To access the Pr2 Readable only 321 Pr1
1
Only for XT111C/XT111D;
2
Only for instrument with 4÷20mA or 0÷1V or 0÷10V;
3
Only for instruments with analog ouput
