SOLD OUT SWITCHES (2 IN A CLUSTER)

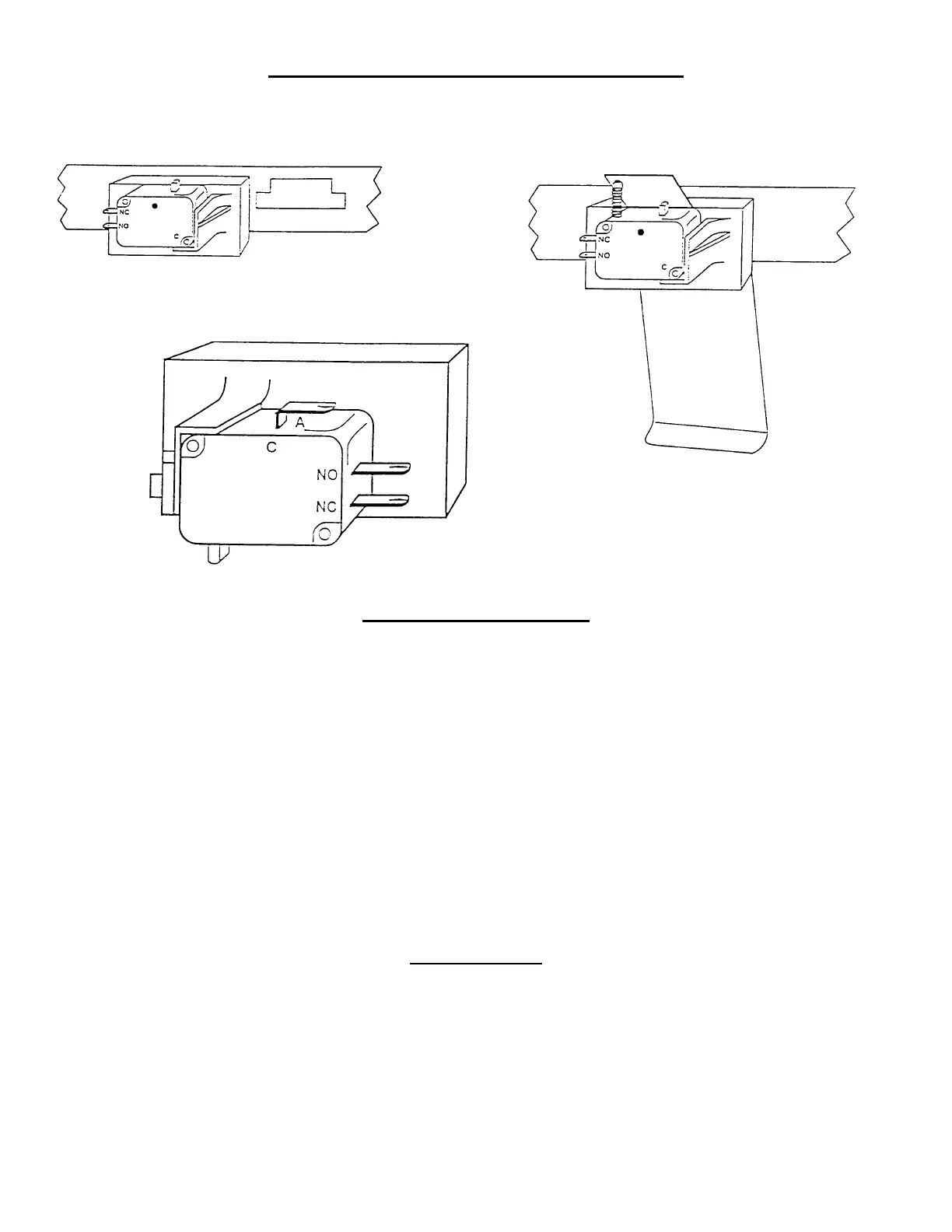

The Sold Out Switch is located on the Front Mechanism Plate under the Vend Motor Cover.
The Sold Out Switches are the "snap in" type. To install, place the switch in position over the opening, push in and
at the same time, slide to the right.
SINGLE PRICE VENDERS
A) Front Sold Out Switch (one for each column)
The normally closed contact of the front Sold Out Switch is in the Vend Relay Coil Circuit and the Coin
Changer Inhibit Circuit. This normally closed contact (kept closed by can or bottle) is in parallel with all
the other normally closed contacts of the Front Sold Out Switches and when all are open, the coin changer
will not accept coins.
The normally opened contact of the front Sold Out Switch has no function.
B) Vend Sold Out Switch (one for each vending circuit)
The normally closed contact of the Vend Sold Out Switch is in the Vend Motor Circuit. This normally
closed contact (held closed by can or bottle) stays closed in the vend motor circuit so the Vend Motor
Circuit can be completed.
The normally open contact of the Vend Sold Out Switch is in the Sold Out Lamp circuit (kept open by a can
or bottle). When not kept open by a can or bottle, the normally open contact closes and completes the Sold
Out Lamp Circuit.
SIID VENDERS
A) Vend Sold-Out Switch (one for each vending circuit)
The normally closed contact of the front Sold Out Switch has no function. The normally open contact of
the Sold-Out Switch is in the Sold-Out Circuit (kept open by a can or bottle). When not kept open by a can
or a bottle, the normally open contact closes and completes the Sold-Out Message Circuit via the SIID
Control Board.
Sold Out Switch Pak
804,100,68x.x1 -Single Price
804,100,75x.x01 - SIID
