SOLD OUT LAMPS - (SINGLE PRICE VENDERS ONLY)

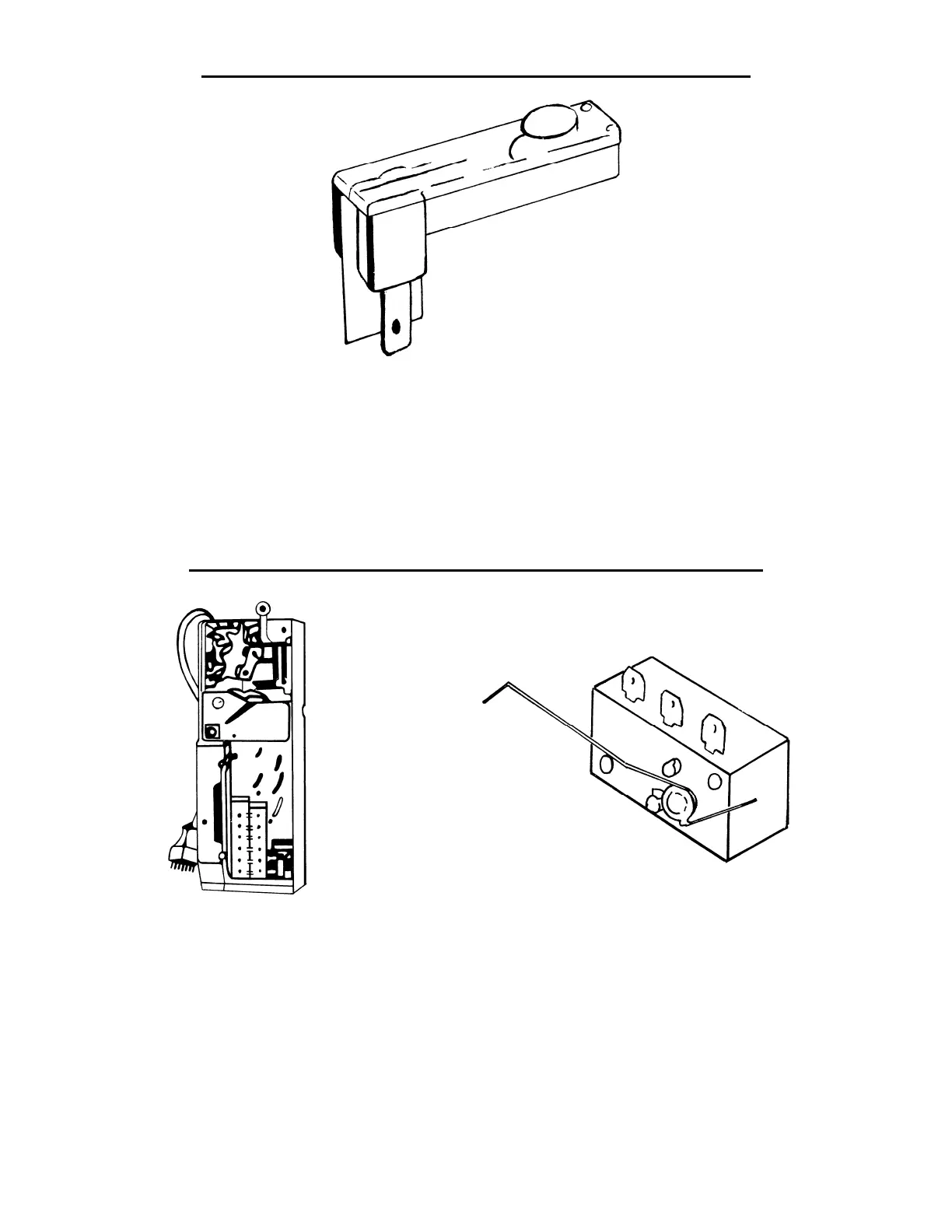

Sold Out Lamp
804,700,51x.x1 - Pepsi, Generic
804,700,54x.x1 - Coke
804,700,63x.x1 - Dr. Pepper V4
The Sold Out Lamp (one for each vending circuit) is secured to the back of the select button in the Selector Panel.
The Sold Out Lamp is turned on by the closing of the normally open contact of the Vend Sold Out Switch.
COIN VEND SWITCH - (SINGLE PRICE VENDERS ONLY)
(Coin Changer)
The Coin Vend Switch is located below the slug rejector and is fastened to the coin changer housing with two (2)
screws and nuts.
The normally open contact of the Coin Vend Switch is in the vend relay coil and the coin changer magnet circuits.
This normally open contact closes and completes the vend relay circuits.
The normally closed contact of the Coin Vend Switch is in the Vend Motor Coil Circuits. This normally closed
contact closes in the Vend Motor Coil Circuits to set up these circuits so that a selection can be made.
Coin Changer
Coin Vend Switch
(Used in mechanical coin mechs)
