Page 15 of 72
VEND MOTOR
The Vend Motor (one for each vending stack) is mounted on a bracket on the front of the Front Mechanism Plate.
SINGLE PRICE VENDER
The Vend Motor is in the Vend Motor Coil Circuit. The Vend Motor runs when a select button is pushed. The
normally open contact of the select switch closes and completes the Vend Motor Coil Circuit. The Vend Motor
continues to run through the normally open contact (closed by the Vend Motor Cam) of the Vend Motor Switch.
The Vend Motor stops when the Vend Motor Switch arm drops off the high side of the Vend Motor Cam.
SIID VENDER
The vend motor is in the Vend Motor Coil Circuit. The Vend Motor runs when a normally closed contact of the
Select Switch pushed, opens and signals the SIID Controller Board to run the motor. The Vend Motor continues to
run via the SIID Controller Board while the Vend Motor Switch is on the high side of the cam. The Vend Motor
stops when the Vend Motor Switch Arm drops off the high side of the Vend Motor Cam, and the normally closed
contact of the Vend Motor Switch closes, signaling the SIID Controller Board to stop power to the Vend Motor
Coil Circuit.

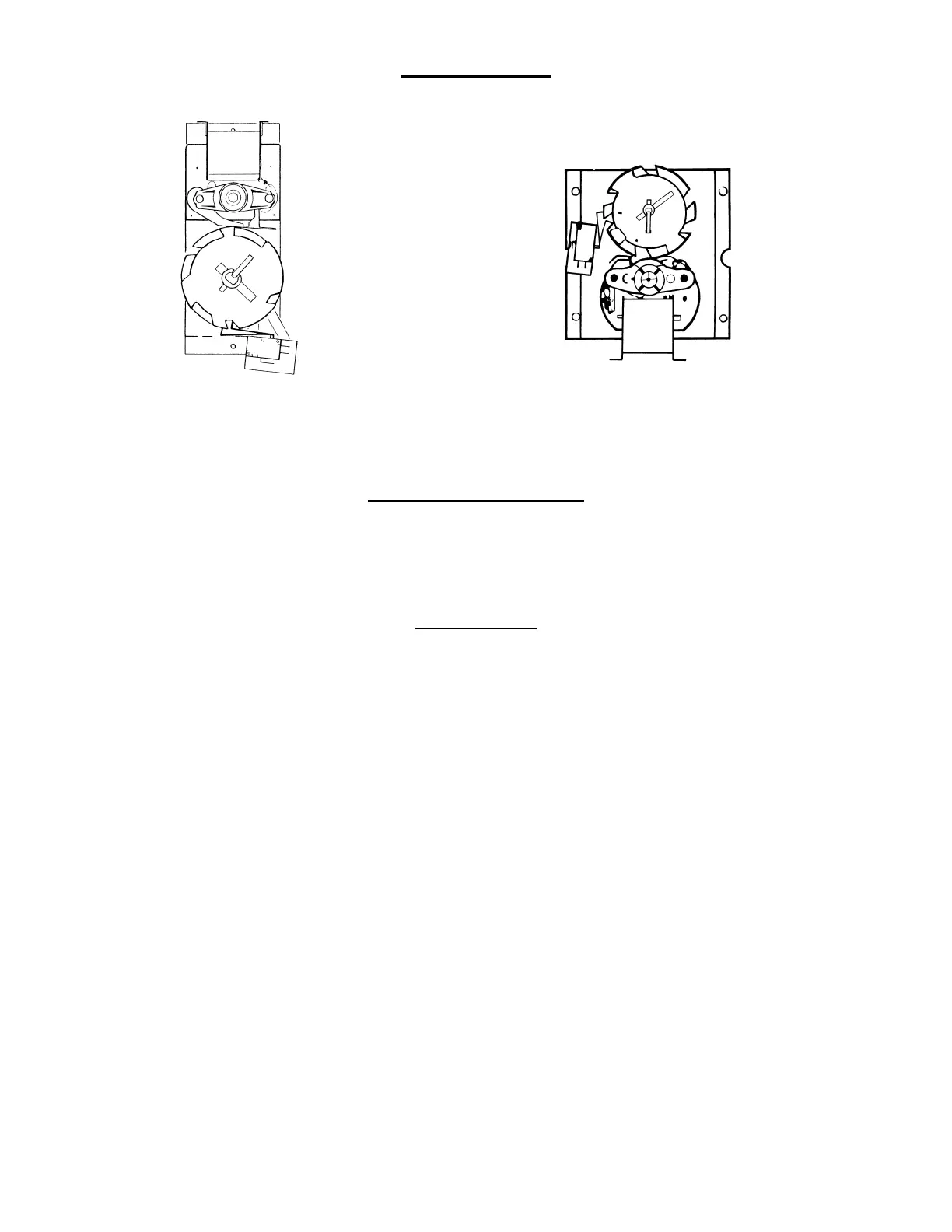

For Narrow Column For Wide Column
