Page 18 of 72

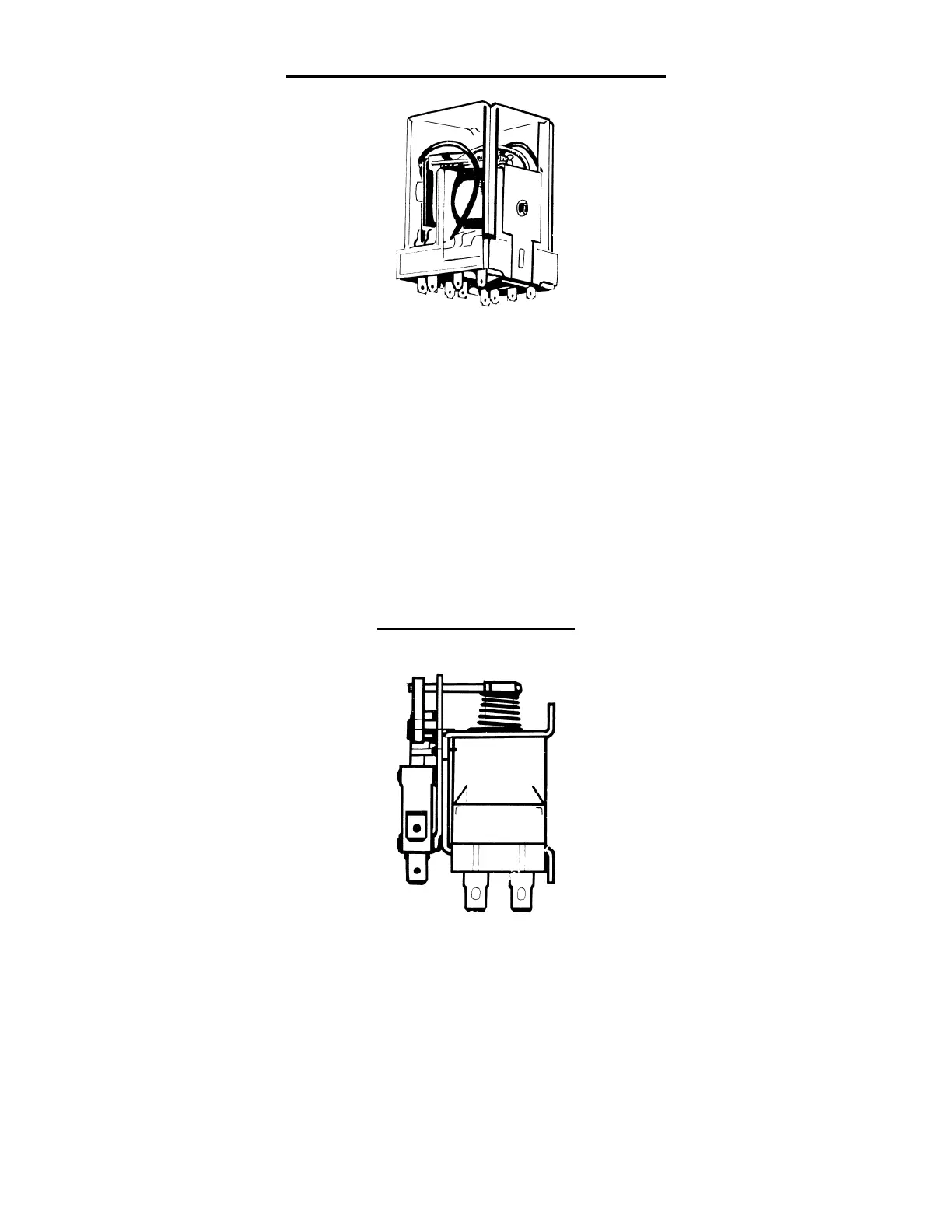

VEND RELAY (SINGLE PRICE ONLY)
804,200,17x.x1
VEND RELAY SWITCH NO. 1 Normally Closed (the Normally Open contact is not used)
The normally closed contact of the Vend Relay Switch No. 1 is the Coin Changer Inhibit Circuit. When this
normally closed contact opens, the Coin Changer is inhibited.
VEND RELAY SWITCH NO. 2 Normally Open (the Normally Closed contact is not used)
The normally open contact of the Vend Relay Switch No. 2 is in each of the Vend Motor Coil Circuits. This
contact closes in the Select Panel and provides power to the select switches circuit so that a selection can be made.
VEND RELAY SWITCH NO. 3 Normally Open (the Normally Closed contact is not used)
The normally opened contact of the Vend Relay Switch No. 3 is in the Vend Relay Coil Circuit. This normally
open contact closes and keeps the Vend Relay Coil energized.
SEQUENCE RELAY
(Single Price, Not On All Venders)
804,200,19x.x1
The sequence relay is located on a bracket adjacent to the Vend Relay (credit relay) on the main door and secured
with two (2) screws.
When a credit is set up by the Coin Changer and the vend relay is energized, the normally open vend relay switch
#2 closes and completes the sequence relay coil circuit.
The sequence relay coil circuit is broken when any select buttons are pushed, opening the normally open contact in
the sequence relay coil circuit.
