dji M200 Series User Manual

Installation and Usage (cont…)

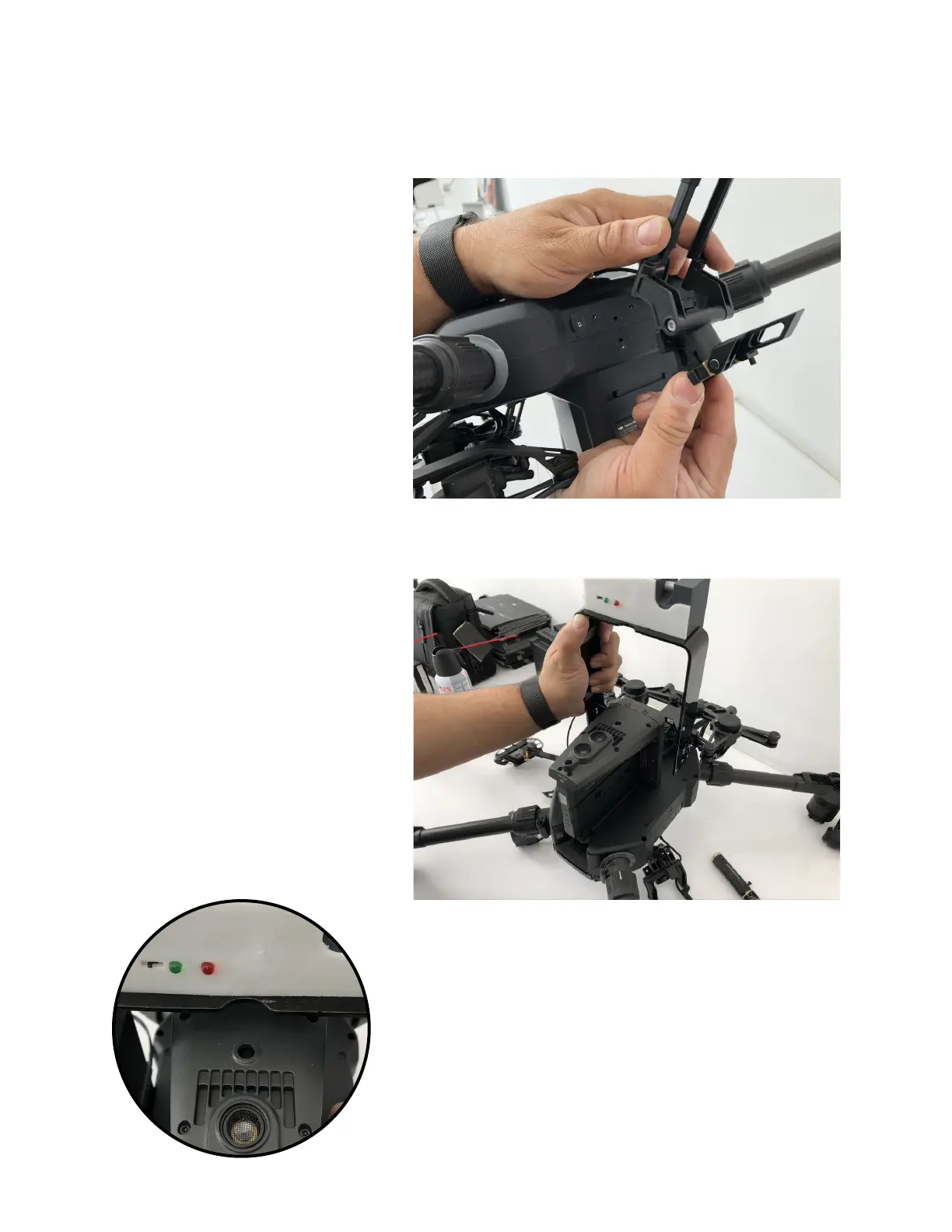

Step 3
Remove the landing
gear bracket from the
airframe of the aircraft.
Mind the cable and
connector on aircraft
equipped with RTK
antennas. Repeat steps
1-3 for the opposite
side.
Step 4
Flip the aircraft either
on its side or upside
down to attach the drop
system bracket. The
holes on the bracket
align with the holes on
the aircraft body.
6
The drop system bracket must be oriented
properly. The curved cutout on the metal
bracket and the electronics bay cover must
face the rear of the aircraft, towards the
battery compartment.

dji M200 Series Specifications

General

Satellite Positioning Systems	GPS, GLONASS
IP Rating	IP43
Supported Gimbal	Zenmuse X4S, Zenmuse X5S, Zenmuse Z30
Operating Temperature	-20°C to 50°C
Weight	4.2 kg (with battery and propellers)
Max Ascent Speed	5 m/s (S-mode)
Max Descent Speed	3 m/s (S-mode), 3 m/s (P-mode)
Max Speed	44.7 mph / 20 m/s
Max Flight Time	38 minutes
Max Hovering Time	32 minutes (with TB55 battery)
Max Flight Distance	7 km
Operating Temperature Range	-20°C to 50°C
Hovering Accuracy Range	0.5 m
