dji M200 Series User Manual

Installation and Usage (cont…)

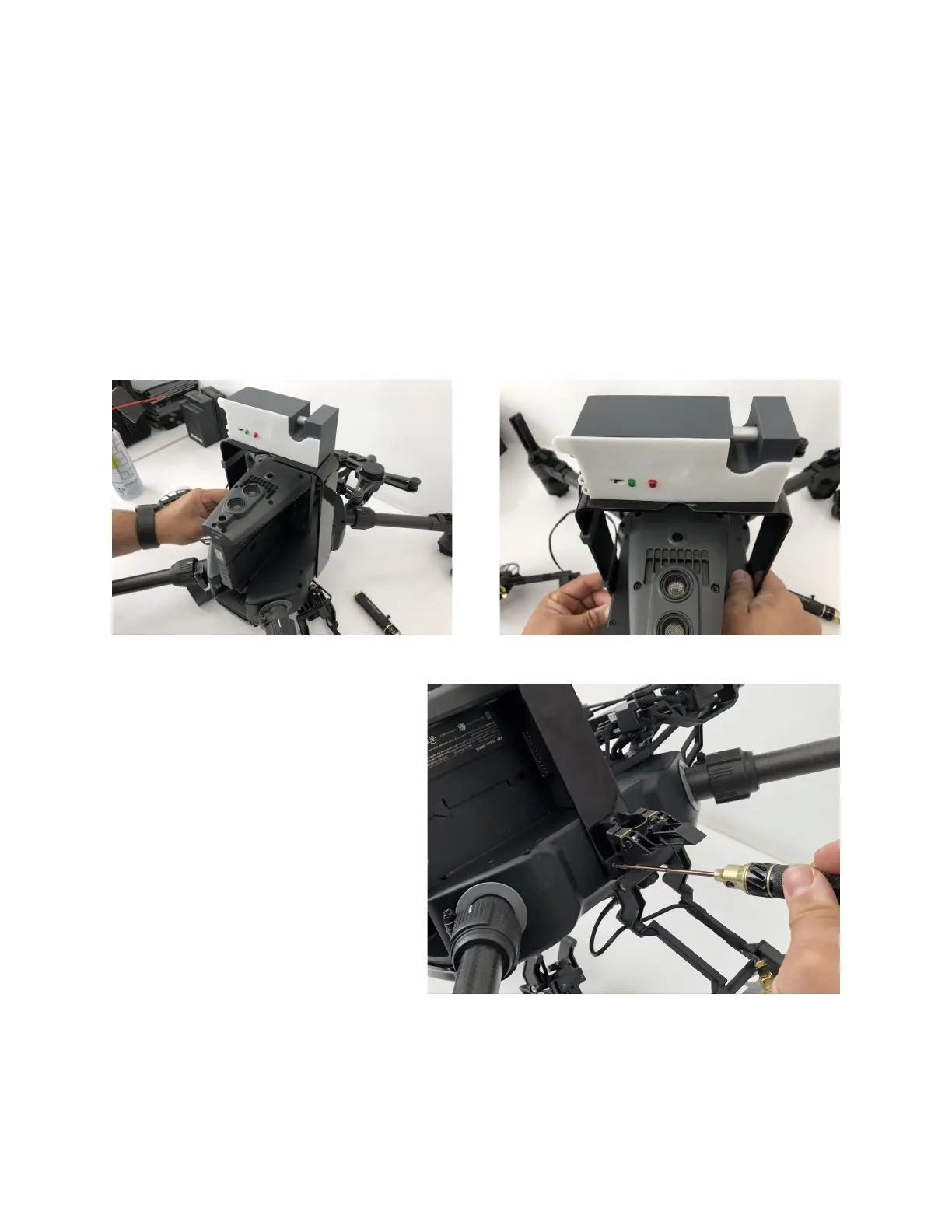

Step 5
Slide the drop system bracket into place and verify that it is
inserted in the correct orientation. The curved cutout on the
metal bracket and the electronics bay cover must face the rear
of the aircraft, towards the battery compartment.
Step 6
Position the landing gear
bracket to align the holes
with the holes on the
drop system bracket and
on the aircraft body.
Secure the bracket to the
aircraft using the
replacement screws
provided. Repeat on the
other side.
7

dji M200 Series Specifications

General

Satellite Positioning Systems	GPS, GLONASS
IP Rating	IP43
Supported Gimbal	Zenmuse X4S, Zenmuse X5S, Zenmuse Z30
Operating Temperature	-20°C to 50°C
Weight	4.2 kg (with battery and propellers)
Max Ascent Speed	5 m/s (S-mode)
Max Descent Speed	3 m/s (S-mode), 3 m/s (P-mode)
Max Speed	44.7 mph / 20 m/s
Max Flight Time	38 minutes
Max Hovering Time	32 minutes (with TB55 battery)
Max Flight Distance	7 km
Operating Temperature Range	-20°C to 50°C
Hovering Accuracy Range	0.5 m
