Aircraft
Phantom 3 Advanced User Manual
Using the Battery
Turning ON/OFF
Turning On:
Press the Power Button once, then press again and hold for 2 seconds to turn on. The
Power LED will turn red and the Battery Level Indicators will display the current battery level.
Turning
Off: Press the Power Button once, then press again and hold for 2 seconds to turn off. The
battery power LED will ash when powering off the Phantom to allow automatically stopping
of a recording during the event recording wasn’t stopped.
Low Temperature Notice:
1. Battery capacity is signicantly reduced when ying in low temperature (< 0°C) environments.
2. It is not recommended that the battery be used in extremely low temperature (< -10°C) environments.
Battery voltage should reach the appropriate level when operating environment with temperatures
between -10°C and 5°C.
3. End the ight as soon as the DJI Pilot app displays the “Low Battery Level Warning” in low temperature
environments.
4. Keep the battery indoors to warm it before ying in low temperature environments.
5. To ensure optimal performance of the battery, keep the battery temperature above 20°C.
6. The charger will stop charging the battery if the battery cell’s temperature is not within the operating
range (0°C ~ 40°C ).
In cold environments, insert the battery into the battery compartment and allow the aircraft for
approximately 1-2 minutes to warm up before taking off.

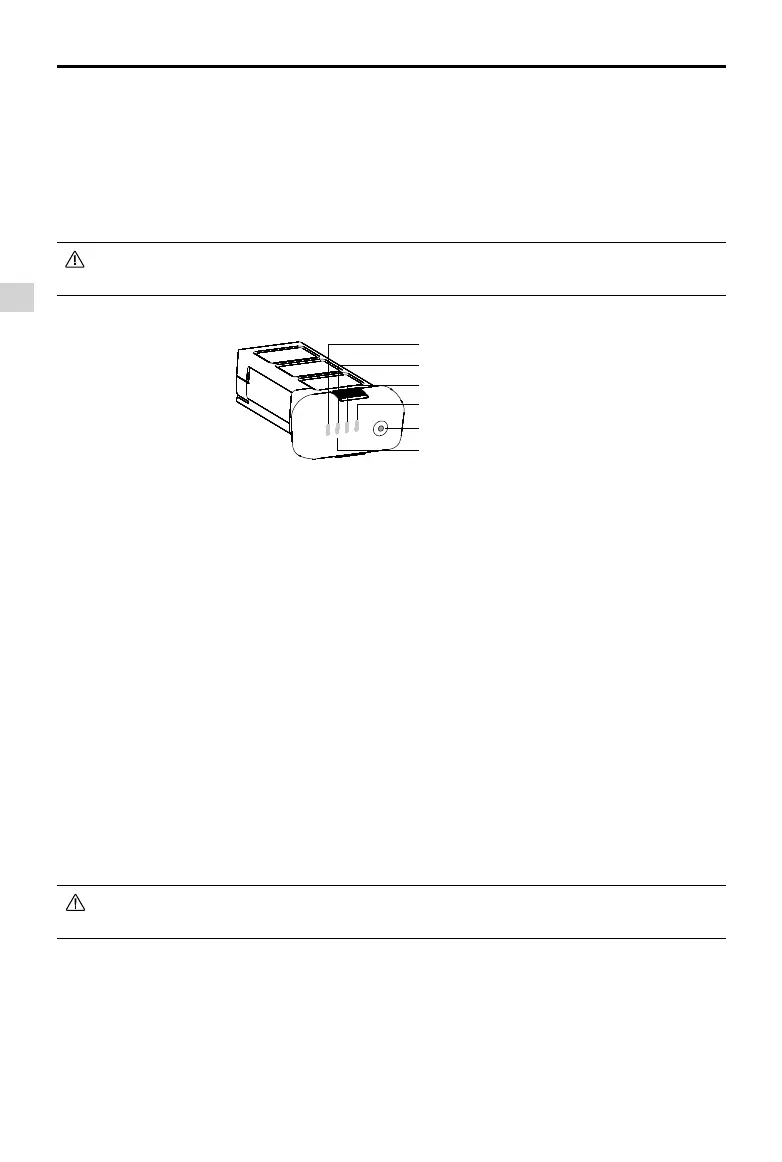

Checking the Battery Level
The Battery Level Indicators display how much power remains. When the battery is turned off, press
the Power Button once. The Battery Level Indicators will light up to display the current battery level. See
below for details.
LED1
LED2
Battery Level Indicators
LED3
LED4
Power Button (Bulit-in LED)
10. Battery Cell Damage Protection: The DJI Pilot app displays a warning message when a damaged
battery cell is detected.
11. Battery Error History: Browse the battery error history in the DJI Pilot app.
12. Sleep mode: To save power, the battery enters sleep mode after 20 minutes of inactivity.
13. Communication: Information pertaining to the battery’s voltage, capacity, current, etc. is transmitted to
the aircraft’s main controller.
Refer to Phantom 3 Professional / Advanced Intelligent Flight Battery Safety Guidelines before
use. Users take full responsibility for all operations and usage.

dji Phantom 3 Advanced Specifications

General

Maximum speed	16 m/s
Frequency band	2.4 - 2.483 GHz
Number of axis	3
GPS (satellite)	Yes
Number of rotors	4 rotors
Maximum flight time	23 min
Maximum ascent speed	5 m/s
Maximum descent speed	3 m/s
Maximum weight capacity	- kg
Maximum operating distance	5000 m
Megapixel	12.4 MP
Video resolutions	1280 x 720, 1920 x 1080, 2704 x 1520 pixels
Maximum frame rate	60 fps
Camera shutter speed	8 - 1/8000 s
Supported video modes	720p, 1080p, 1520p
Video formats supported	AVC, H.264, MOV, MP4, MPEG4
Live view frequency band	2.4 GHz
Maximum video resolution	2704 x 1520 pixels
Field of view (FOV) angle	94 °
Bitrate at maximum video resolution	40 Mbit/s
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	64 GB
Flight modes	Failsafe mode, Follow Me mode
Moving control functions	Backward, Downward, Flying sideways, Forward, Turn left, Turn right, Upward
Battery voltage	15.2 V
Battery capacity	4480 mAh
Transmitter battery capacity	6000 mAh
Number of batteries (transmitter)	1
Product color	White
Operating temperature (T-T)	0 - 40 °C
AC adapter power	57 W
AC adapter output voltage	17.4 V
Equivalent Isotropically Radiated Power (EIRP)	100 dBmW
Motor type	Brushless

Weight and Dimensions

Weight	1280 g
Battery weight	365 g
