DMP Electronics 1164 - Commercial; Multi-Family

1164/1164NS Installation and Programming Guide 17
In commercial buildings,
place smoke detectors in
stairwells and every room on
each level.
In multifamily buildings,
place smoke detectors in
hallways and stairwells on
each level.
Inside each apartment,
place smoke detectors in
the living area, hallway, and
each bedroom.
Third Floor
Second Floor
First Floor
Stairwell
Hall
Kitchen
Dining
Living
Room
Bedroom
Bathroom
Stairwell
Oce
Oce
Oce
Oce
Hall
Lobby
Conference
Room
Men’s Women’s
Closet
OceOce
Oce
Apartment
Hall
Hall
ApartmentApartment
Apartment Apartment Apartment
Stairwell
Stair-
well

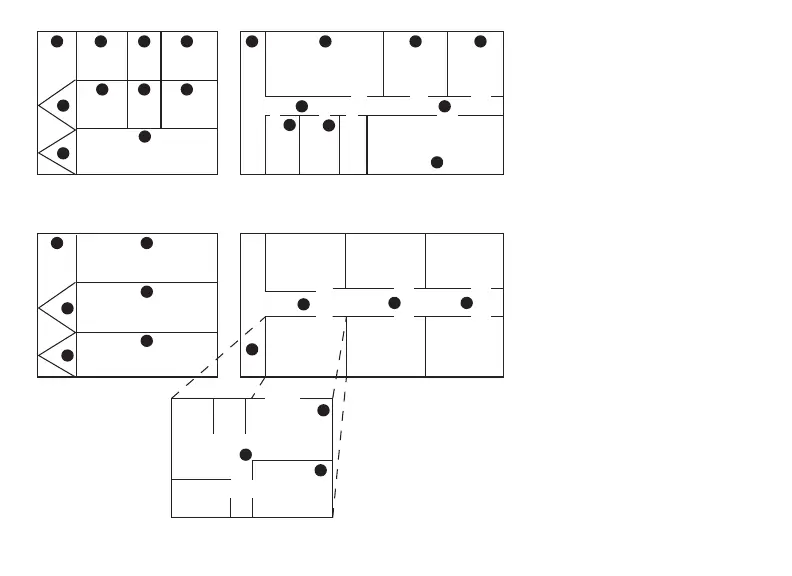

Figure 9: Smoke Detector Placement Locations
