System Components
3.1 Description
The DMP XR200 system is made up of an alarm panel with a built-in communicator, an enclosure, battery,
one 16.5 VAC transformer, and a keypad. You can add up to eight supervised Security Command® keypads;
wireless, network communications, and expansion interface cards; zone and output expander modules; and
initiating and indicating circuit modules. You can also connect auxiliary devices to the panel’s output relays
to expand the basic system’s control capability. Combined current requirements of additional modules may
require an auxiliary power supply. Refer to section 6.8 in this guide when calculating power requirements.

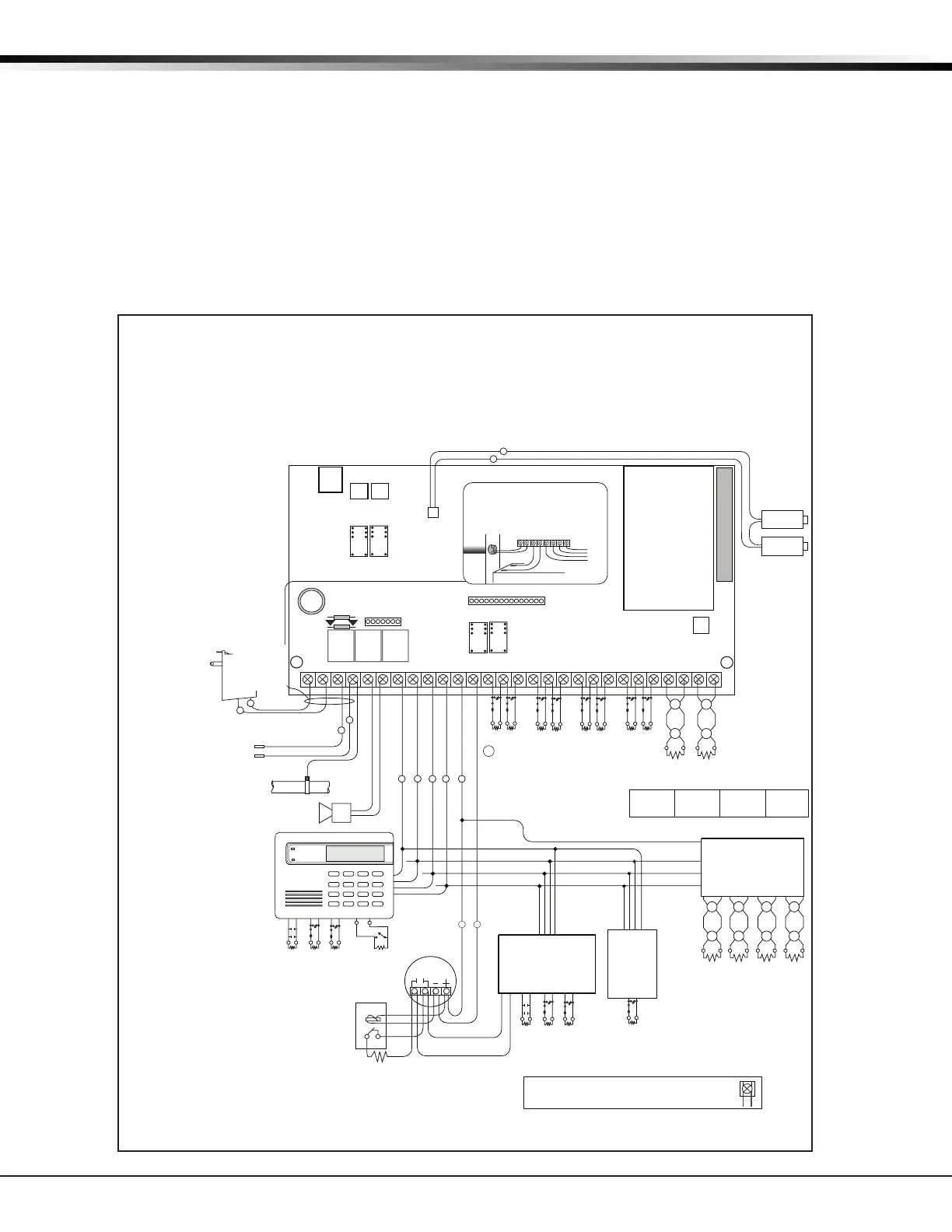

3.2 Wiring Diagram
The XR200 system below shows some of the accessory modules you can connect for use in various
applications. A brief description of each module follows in section 3.4.

















   


   

  




 


 













  



 






































  
  
  
  
  
  

 
 

 

 
 
 
 

 

 
























  



























































































 
















































































































































































Figure 2: XR200 Wiring Diagram
