EBOX-335xDX3 RCA Series Overview

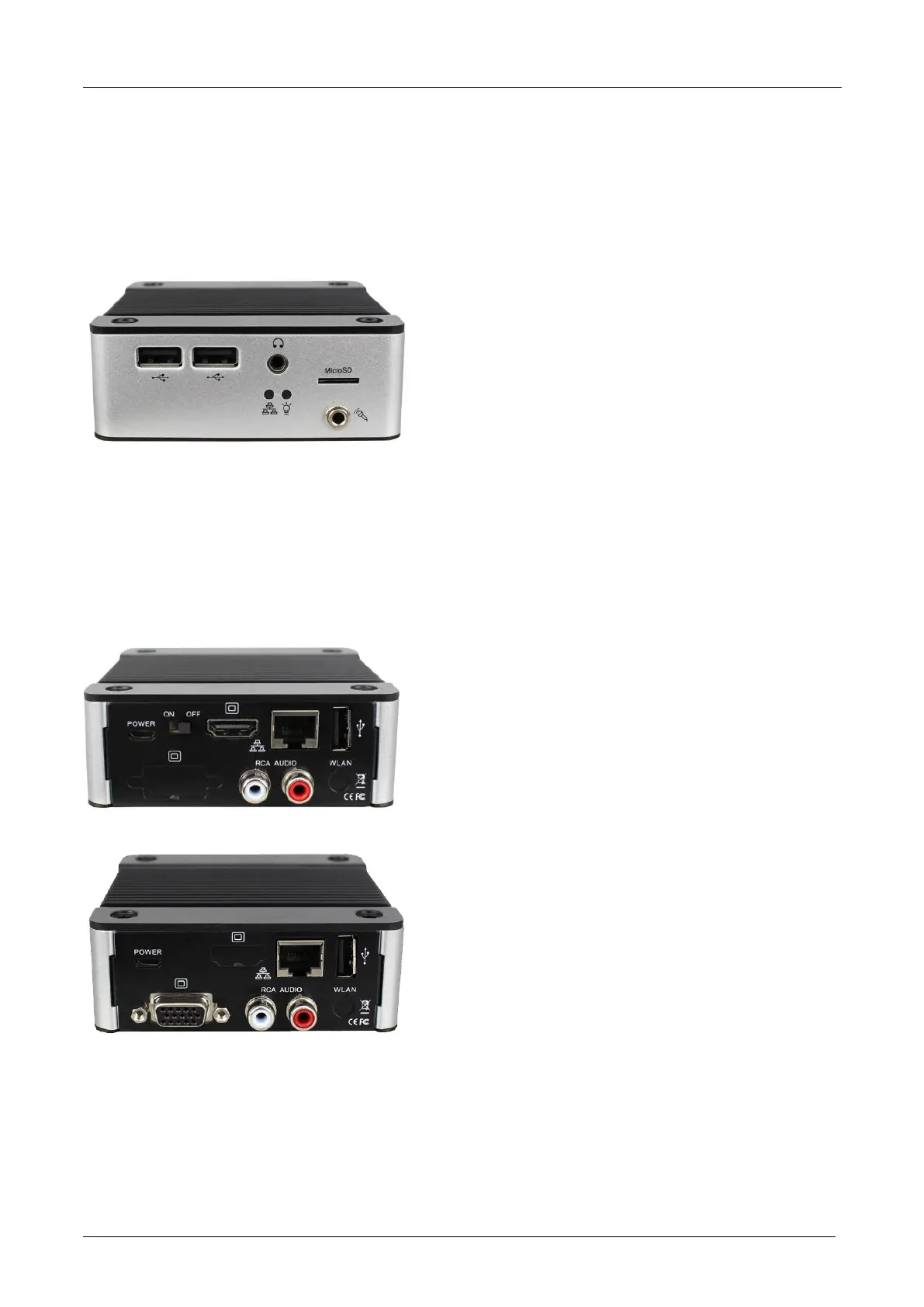

Front Panel
A: Micro SD Card Slot
System support bootable from Micro SD Card.
B: Audio Mic in
For Microphone input.
C: Audio Line Out
Audio output to speaker.
D: Power LED
LED lights up when system is turned on.
E: Internet LED
LED lights up when system is connected to internet.
F: USB 2.0 port
Connection for external USB devices.
Back Panel
F: USB 2.0 port
Connection for external USB devices.
G: RJ-45 LAN Jack
10/100Mbps LAN built-in PXE diskless boot.
H: HDMI output
Support HDMI display.
I: Power switch
To turn the system power on or off.
J: Micro-B USB Power connector
K: RCA jack (Isolation)
Support speaker with RCA input.
L: VGA port D-Sub 15-pin
Support VGA display.
F
G
G
H
J
K
A
B
C
D
E
F
I
L
F
G
J
K
F

DMP Electronics EBOX-335xDX3 Series Specifications

General

Brand	DMP Electronics
Model	EBOX-335xDX3 Series
Category	Desktop
Language	English
