DMP Electronics EBOX-335xDX3 Series User Manual

EBOX-335xDX3 Series User Manual
DMP Electronics Inc. 14
Peripherals

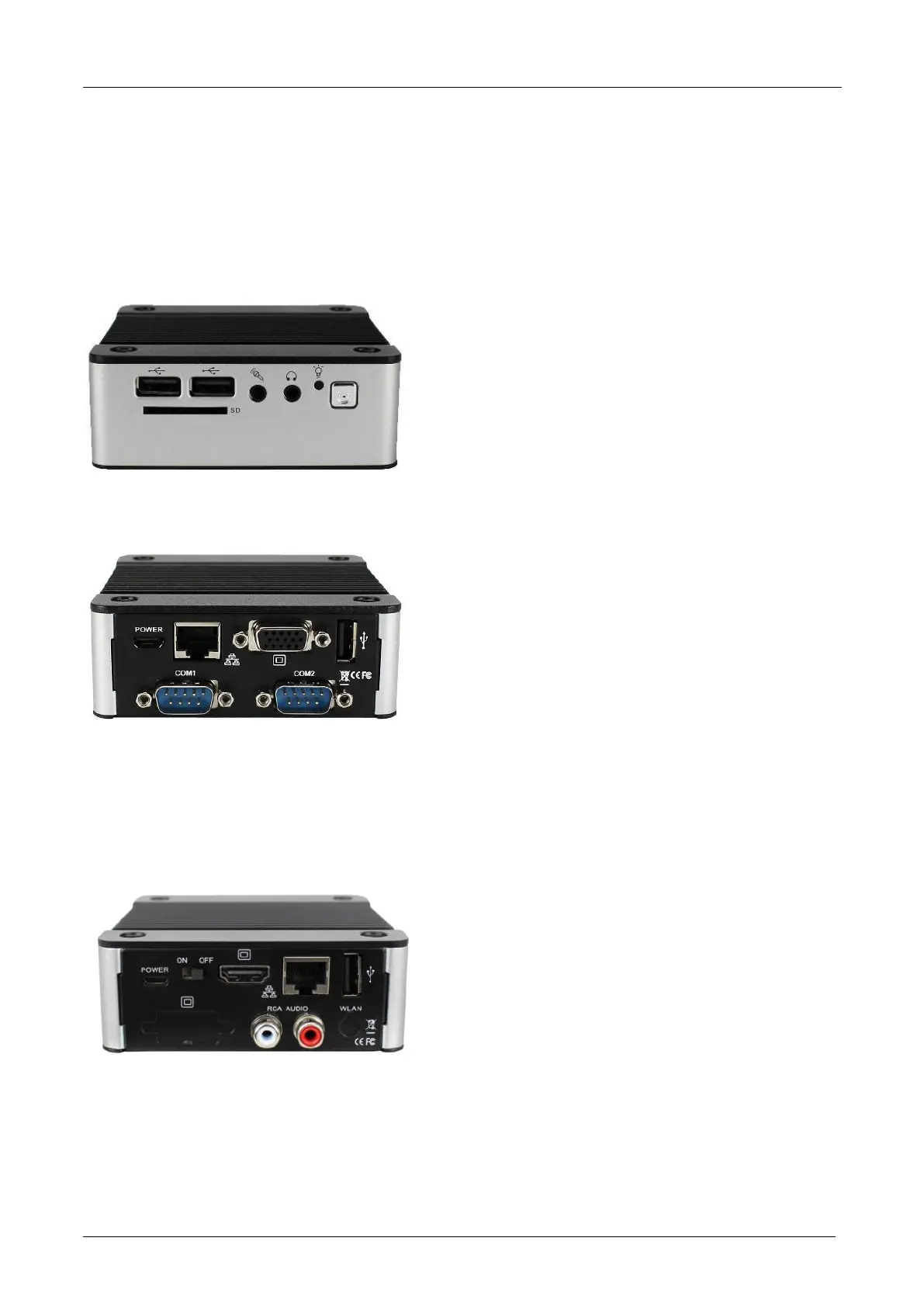

Connecting Input & Output ports
EBOX-335xDX3 series provides 3 external USB ports (2 at front, 1 at rear).
D: SD Card Slot
For booting device by SD Card.
E: Microphone/ Earphone
335xDX3 Series supports Microphone Input and Speaker Output
F: USB 2.0 port
Connection for external USB devices.
G: RJ-45 LAN
RJ-45 LAN jack for Ethernet connection.
H: Serial port
Connection for serial port interface devices.
Connecting RCA connector
H
H
D
E
F
F
G
I: RCA port
RCA ports transmit stereo analog audio output
I
