ZONE 2 SOFTSHUNT
TIME: 40
Zone 2 Soft-Shunt Time
(7073/7073A, 793 only)
Enter the number of Soft-Shunt seconds to elapse
before the Soft-Shunt timer expires. Range is from
20 to 250 seconds. Press any top row select key
to enter the number of seconds. Once the door
strike relay is activated, the user has 5 seconds
to open the door connected to zone 2. The zone
is then shunted for the programmed time or until
the contact restores to normal. Ten seconds after
the Soft-Shunt entry/exit time begins, the keypad
beeps if the door is still open. If the door remains
open when the timer expires a zone open/short
is sent to the panel for Zone 2. The default is 40
seconds.

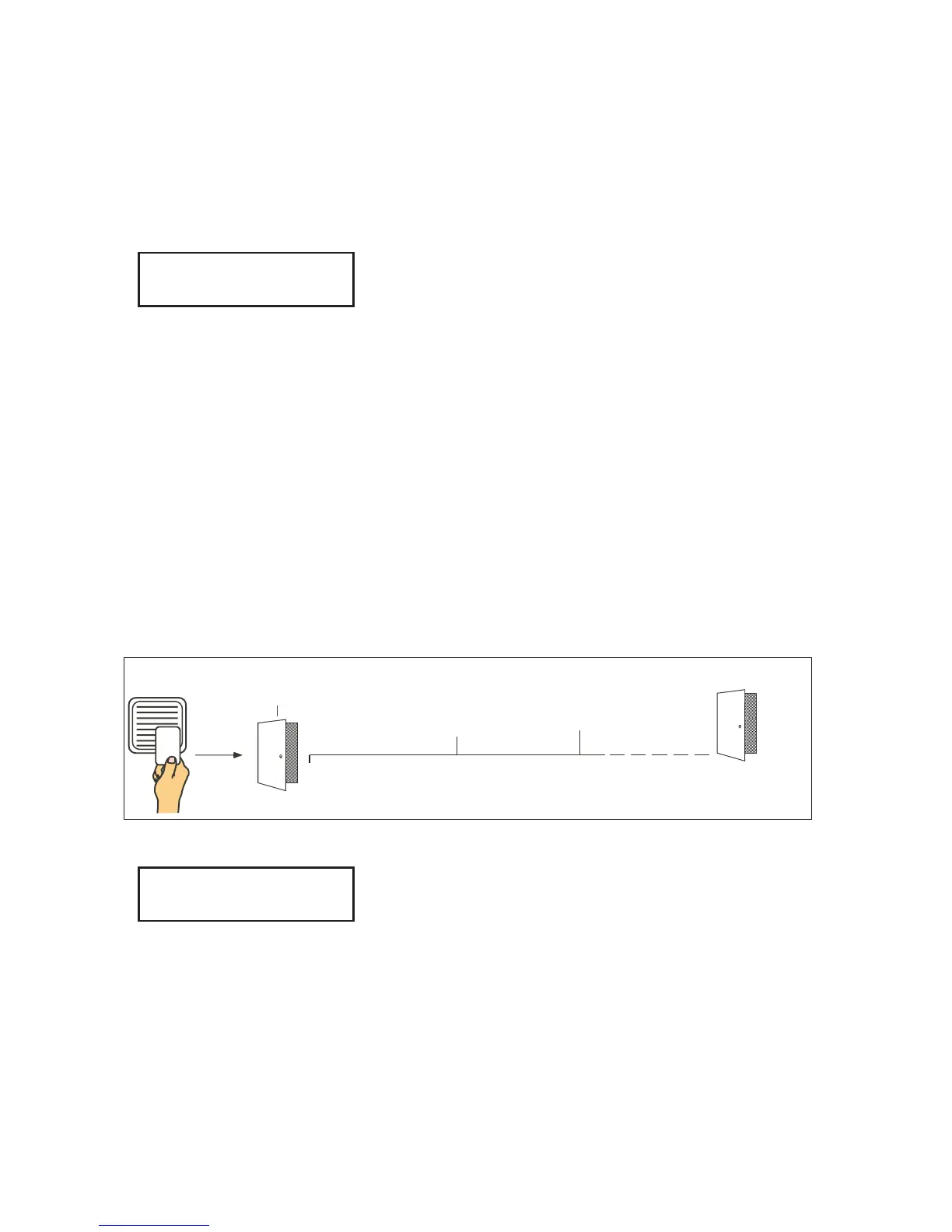

Figure 7 shows how the Soft-Shunt works using
the default 40 second timer.
5 Second
Strike
40-Second "Soft-Shunt"
and entry/exit timer.
At 30 seconds
,
the keypad beep
s
if door is still open.
End of
timer.
40
Sec
onds
A zone fault is indicated
if door is still open.
Figure 7: Door Strike Relay Operation Time Line
RELOCK ZONE 2
FAULT: NO YES
Relock on Zone 2 Fault?
(7073/7073A, 793 only)
Selecting NO leaves the relay on when Zone 2 faults
to an open or short condition during door access.
Selecting YES turns the relay off when Zone 2 faults
open or short during door access. The default is
NO.
