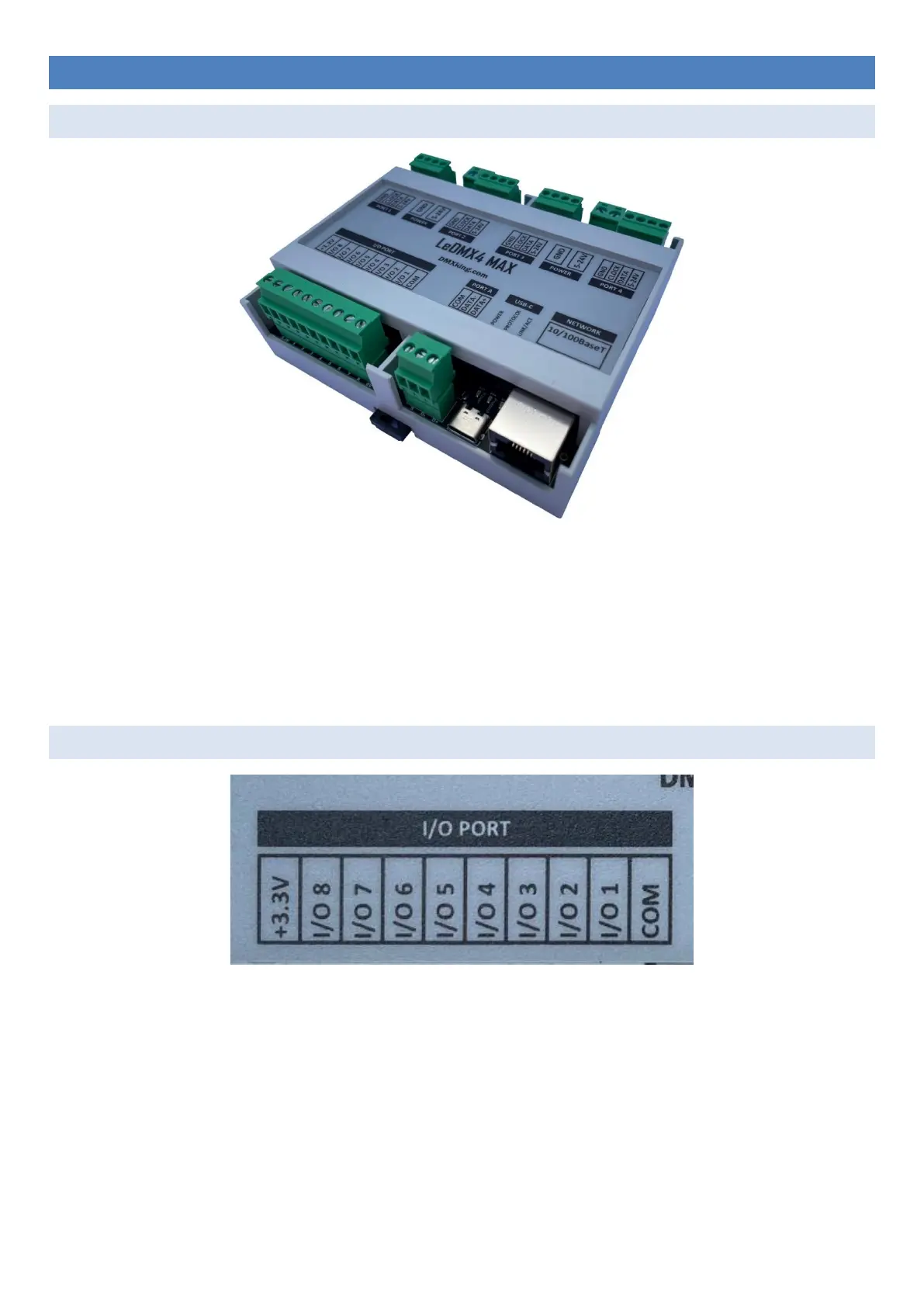

2. CONNECTIONS
LEDMX4 MAX
− DC Power Input x2 – Supply polarity marked on board. Note supply voltage is marked. Pay careful attention!
− Ethernet 10/100Mbps RJ45 socket
− 4x 4way 3.5mm pitch pluggable terminal blocks for pixel strip outputs. GND, Clock [CK], Data [DA], V+
− 1x 3way 3.5mm pitch pluggable terminal block for DMX512 port.
− 1x 10way 3.81mm pitch pluggable terminal block for I/O triggering. See eDMX MAX Recorder Manual.
− Warning not all pixel strips/products use the same wire color code. Double check the signal names match wire colors.
LEDMX4 MAX FRONT PANEL LABEL ERROR
Note earlier production units have incorrect I/O Port labelling where I/O 1 – 8 are flipped 8 – 1. Above image shows the
incorrect label.
