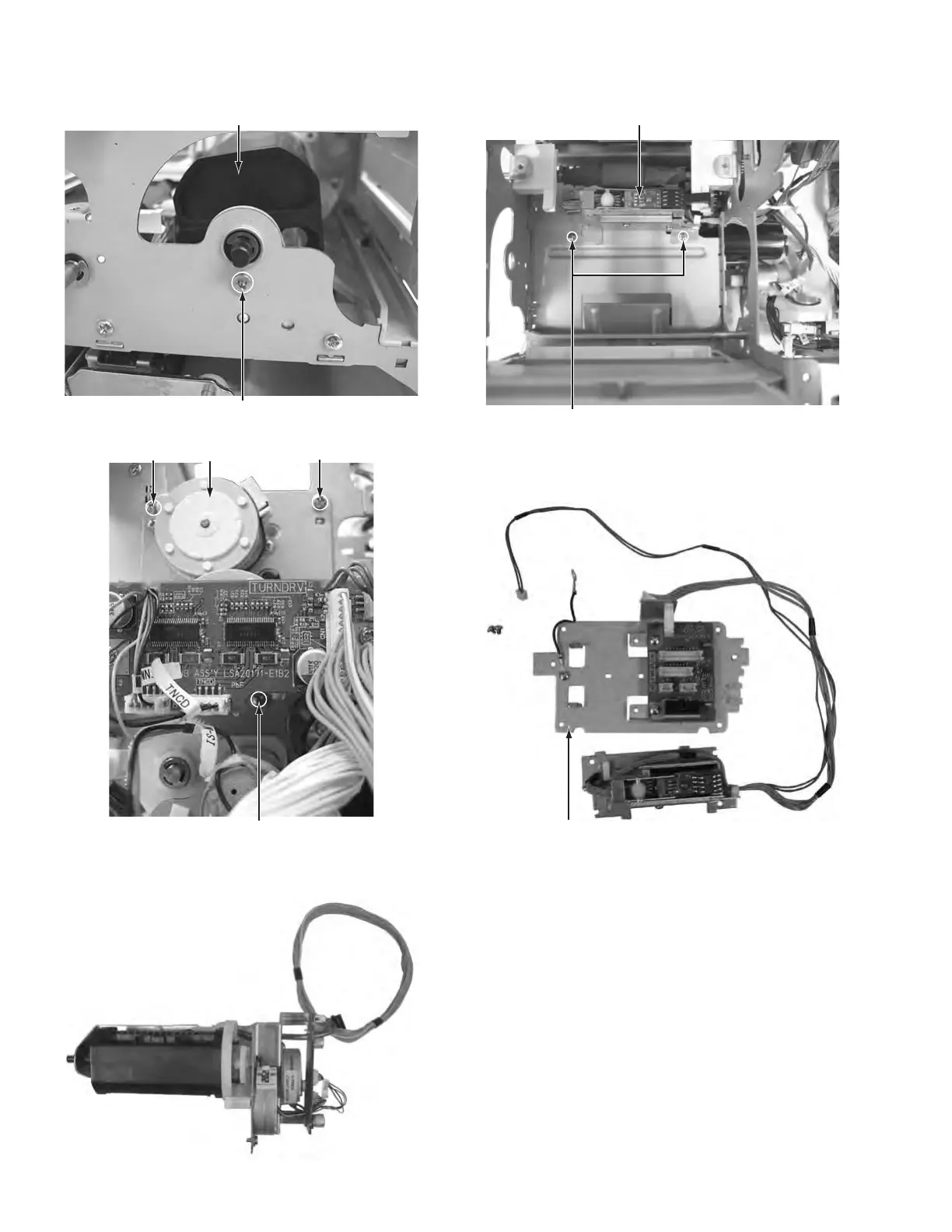

(16) Remove the four screws P attaching the turn unit from the
front side and the rear side.
Fig.29
Fig.30
(17) Removed turn unit.
Fig.31
(18) Remove the two screws Q attaching the IC contact unit,
then remove the unit.
Fig.32
(19) Removed IC contact unit.
ISO: CF-7CCS
Fig.33
Turn unit
P
P
Turn unit
P
P
Q
IC contact unit
This bracket is an accessory of
the card printer unit.
