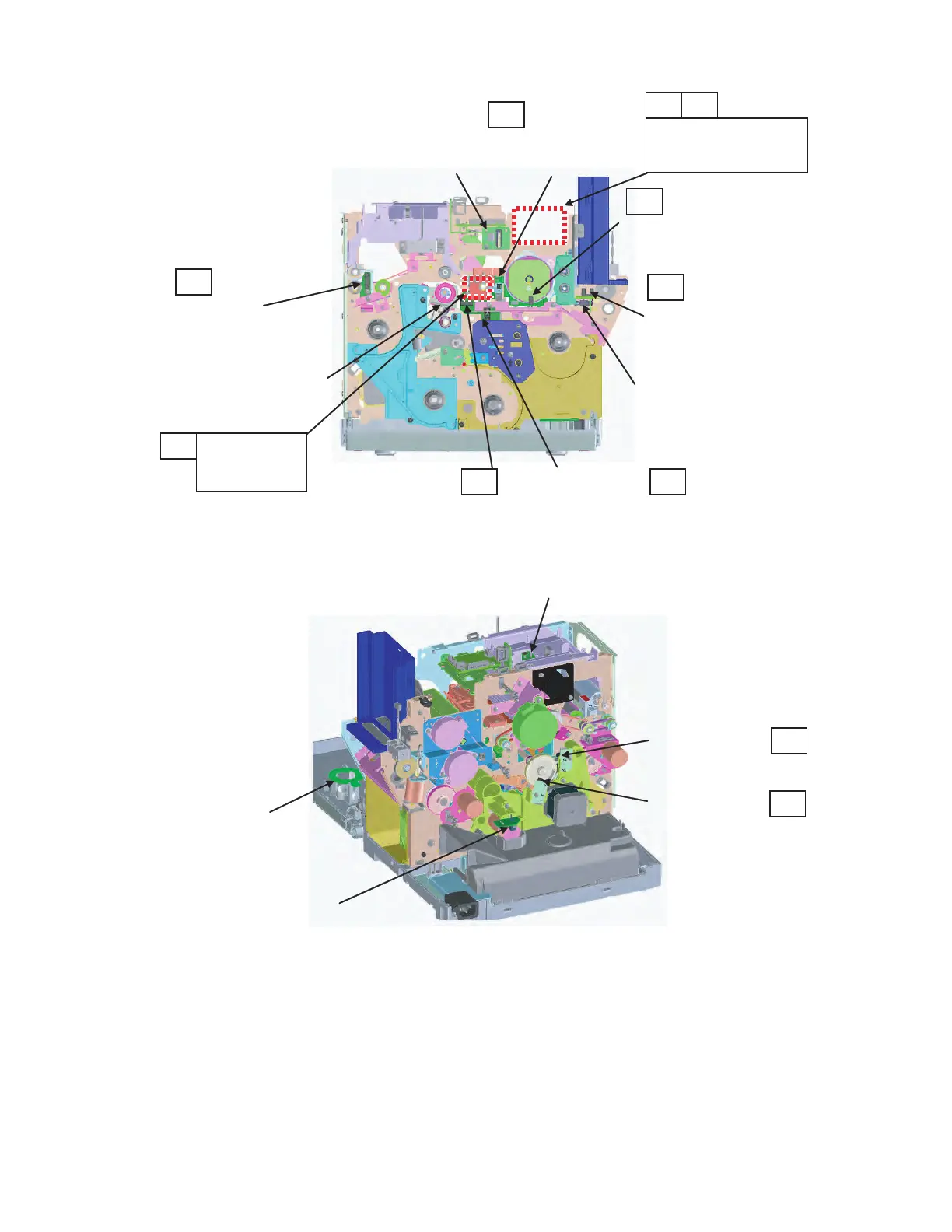

2.4.3 Sensors locations
Symbol No.38
LSA20169-01A3/B3
CAMA BOARD ASSEMBLY
Symbol No.39
LSA20169-01A4/B4
CAMB BOARD ASSEMBLY
Symbol No.40
LSA20169-01A6
INKFG BOARD ASSEMBLY
Symbol No.166
LSA20169-01AB
THERMISTOR PWB
Symbol No.265
LSA20168-01A2
RFID1 BOARD ASSEMBLY
Symbol No.231
LSA20169-01A1/B1
EDGECDEX P ASSEMBLY
Symbol No.113
LSA20169-01AC
CLEANER BOARD ASSEMBLY
Symbol No.179
LSA20169-01A7/B7
NOCARD BOARD ASSEMBLY
Symbol No.167
LSA20169-01A8
I LOCK BOARD ASSEMBLY
Symbol No.230
LSA20169-01A2/B2
EDGECDEX P ASSEMBLY
Symbol No.2 TURN M SUB ASSEMBL
Y
Symbol No.77
LSA20169-01A5/B5
INKPOS BOARD ASSEMBLY
Symbol No.34 HEAT ROL UNIT
(QAD0178-001 THERMISTOR)
(QAL1254-001 THERMOSTAT)
CF-7MGS(Option) MG Unit
Card Edge and Head
Position Sensor
CF-7CCS(Option)
IC Unit
No Sensor
D2
D5
D6
D4
D0
D8
D10
D11
Symbol No.77
LSA20169-01A5/B5
FILM MARK SENSOR
D9
D1
D3
