52 SERVICING AND MAINTENANCE

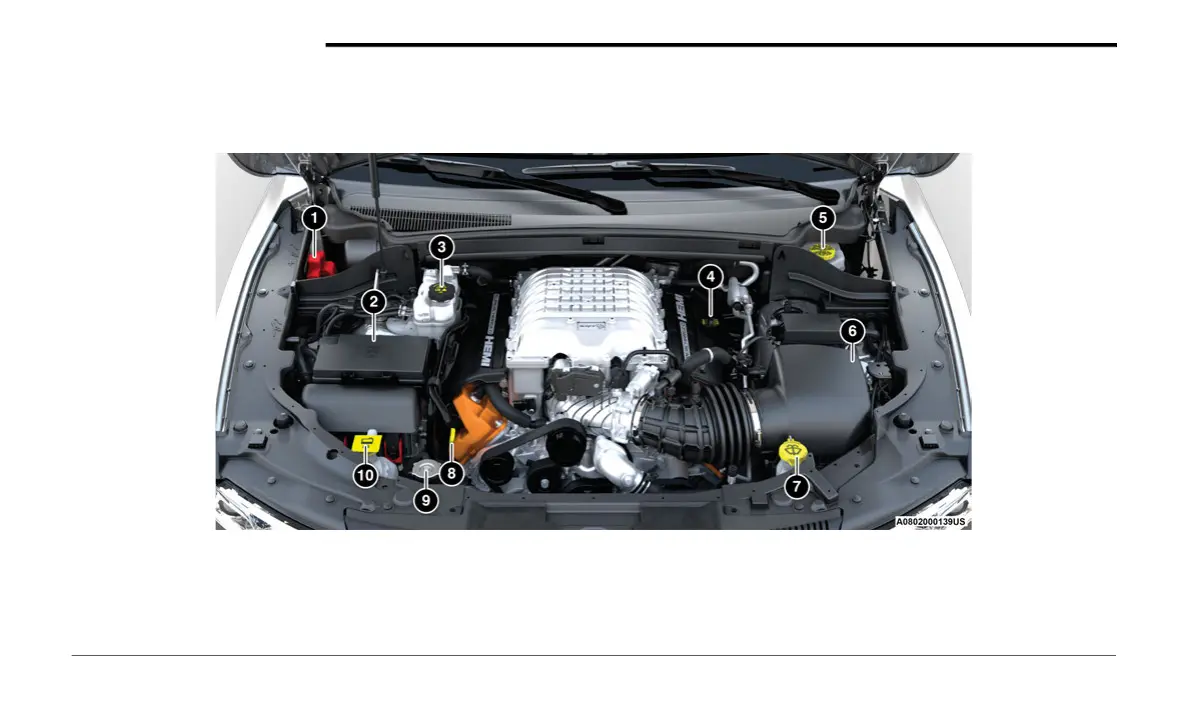

ENGINE COMPARTMENT
6.2L SUPERCHARGED ENGINE
1 — Remote Jump Start Positive Terminal 6 — Engine Air Cleaner Filter
2 — Power Distribution Center (Fuses) 7 — Washer Fluid Reservoir Cap
3 — Intercooler Coolant Pressure Cap 8 — Engine Oil Dipstick
4 — Engine Oil Fill 9 — Engine Coolant Pressure Cap
5 — Brake Fluid Reservoir Cap 10 — Engine Coolant Reservoir Cap
21_WD_S_SU_EN_USC_t.book Page 52
