56 SERVICING AND MAINTENANCE
Engine Air Cleaner Filter Removal
1. Loosen the fasteners on the engine air
cleaner cover filter.
2. Lift the engine air cleaner filter cover to
access the engine air cleaner filter.

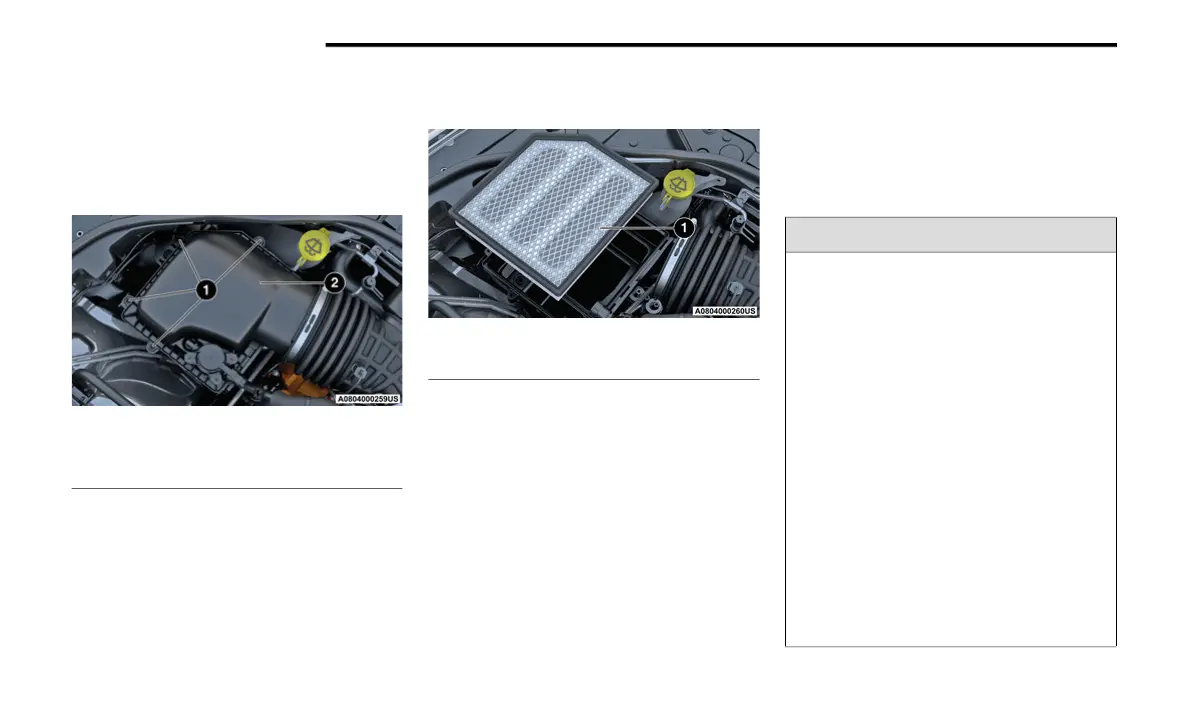

Engine Air Cleaner Filter Assembly
3. Remove the engine air cleaner filter from
the housing assembly.
Engine Air Cleaner Filter Removal
Engine Air Cleaner Filter Installation
NOTE:
Inspect and clean the housing if dirt or debris is
present before replacing the engine air cleaner
filter.
1. Install the engine air cleaner filter into the
housing assembly with the engine air
cleaner filter inspection surface facing
downward.
2. Install the engine air cleaner filter cover
onto the housing assembly locating tabs.
3. Tighten the fasteners to lock the engine air
cleaner filter cover to the housing assembly.
COOLING SYSTEM
1 — Fasteners
2 — Engine Air Cleaner Filter Cover
1 — Engine Air Cleaner Filter
WARNING!
You or others can be badly burned by hot
engine coolant (antifreeze) or steam from
your radiator. If you see or hear steam
coming from under the hood, do not open
the hood until the radiator has had time
to cool. Never open a cooling system pres-
sure cap when the radiator or coolant bottle
is hot.
Keep hands, tools, clothing, and jewelry
away from the radiator cooling fan when
the hood is raised. The fan starts automati-
cally and may start at any time, whether the
engine is running or not.
When working near the radiator cooling fan,
disconnect the fan motor lead or turn the
ignition to the OFF mode. The fan is
temperature controlled and can start at any
time the ignition is in the ON mode.
