Replacing the suction head
The felt Þ lter (9) of the suction head can become clogged. It
is recommended to replace the suction head once every three
months in order to ensure unimpeded fuel ß ow to the carbure-
tor.

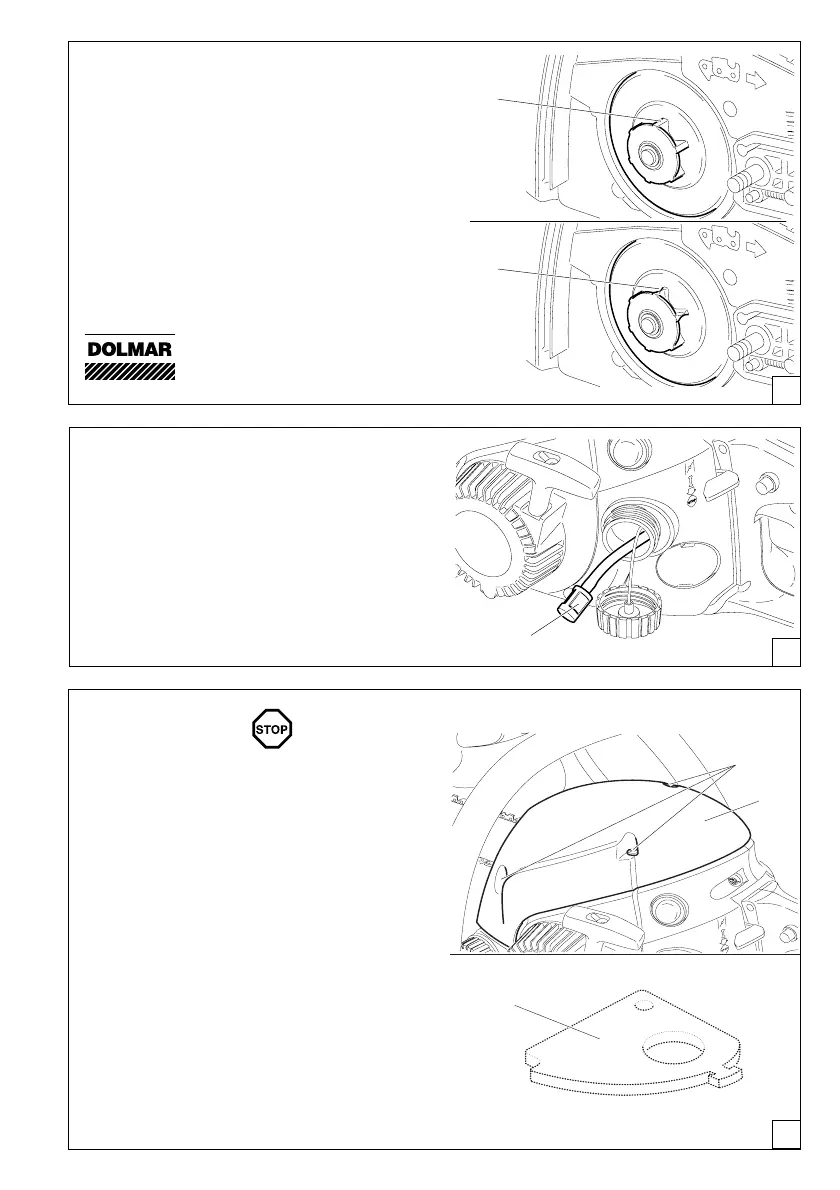

To remove the suction head for replacement, pull it out through
the tank Þ ller neck using a piece of wire bent at one end to
form a hook.
C
D
Cleaning the air Þ lter
Remove the Þ lter cover (11) (3 screws (10)).
Remove the air Þ lter (12).
CAUTION:
Cover the intake opening with a cloth to prevent dirt particles
from getting into the carburetor.
CAUTION:
To prevent injury to the eyes, do NOT blow out dirt particles!
Do not use fuel to clean the air Þ lter.
If the Þ lter is very dirty, clean it in lukewarm water with dish-
washing detergent.
Let the air Þ lter dry completely.
If the Þ lter is very dirty, clean it frequently (several times a day),
because only a clean air Þ lter provides full engine power.
CAUTION:
Replace damaged air Þ lters immediately.
Pieces of cloth or large dirt particles can destroy the en-
gine!
Replacing the saw chain
CAUTION: Use only chains and guide bars designed for
this saw (see the Extract from the spare-parts list)!
Check the sprocket (7) before mounting a new chain.
Remove the sprocket guard (See „PUTTING INTO OPERA-
TION“ Þ gs. A - H).
CAUTION:
Worn out sprockets (8) may damage the new chain and must
therefore be replaced.
E
9
SERVICE
12
10
11
