General information Rooop Air Conditioner (Air Distribution Box, Wall Thermostat Controls)

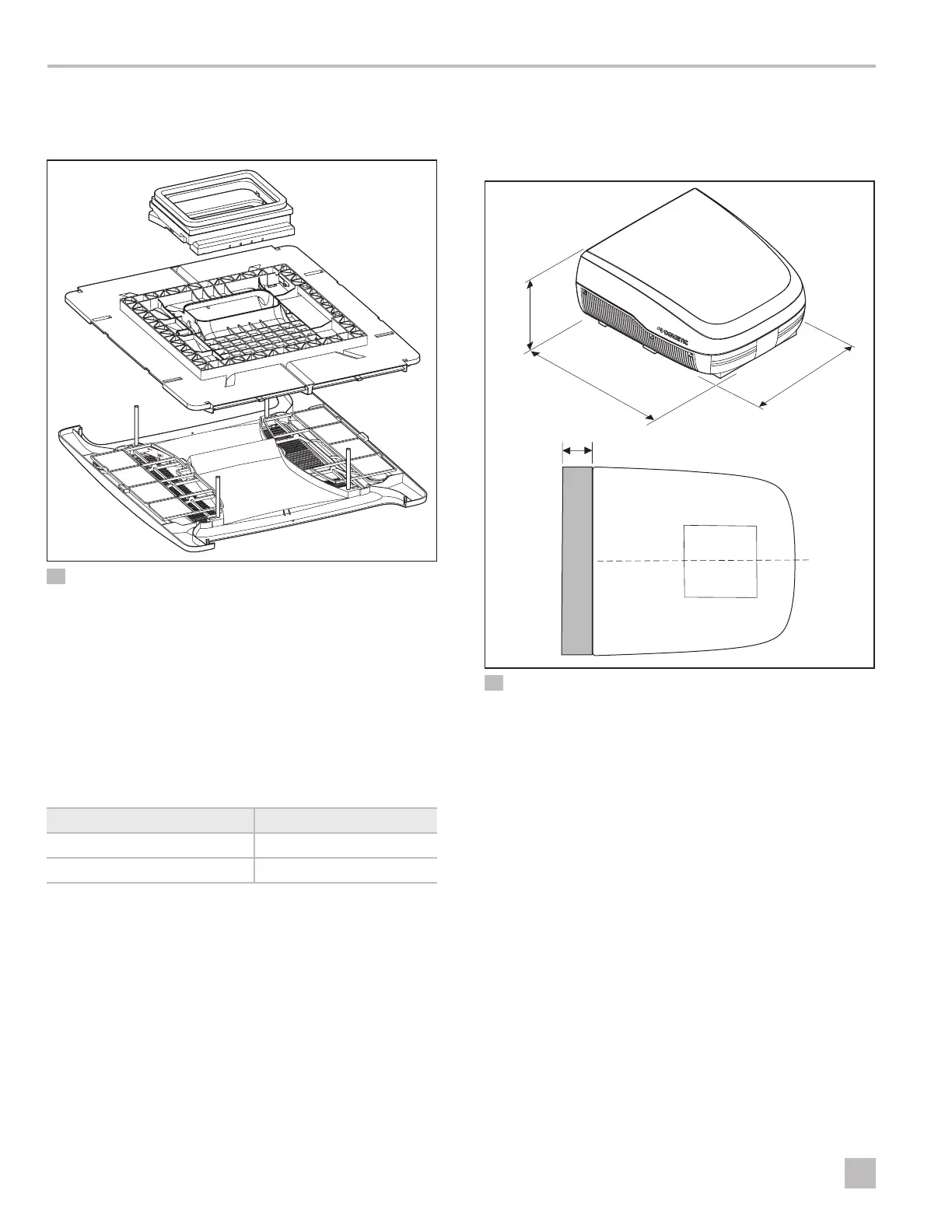

4.3 ADB components
This section identifies the main ADB components.
q
w
r
tt
tt
e
1 ADB components
q
Foam dividers
r
Long bolts
w
Ceiling template
t
Air filter
e
ADB cover
4.4 Thermostat compatibility
This section identifies the thermostat displays
compatible with this ADB.
Display Model
Connect Essential Thermostat INC1LED
Connect Pro Thermostat INC1015RD
4.5 Rooop component dimensions
This section provides the external dimensions and
clearance measurements of the rooop component.
qq
yyt
r
uu
ii
ww
ee
2 FreshJet (FJX3 and FJX4 series)
q
14.4 in. (366 mm)
y
Center line of unit
w
29.6 in. (752 mm)
u
Roof opening
e
27.6 in. (701 mm)
i
Front of unit
r
18.0 in. (457 mm)
clearance
t
Air flow clearance area
(shaded)
