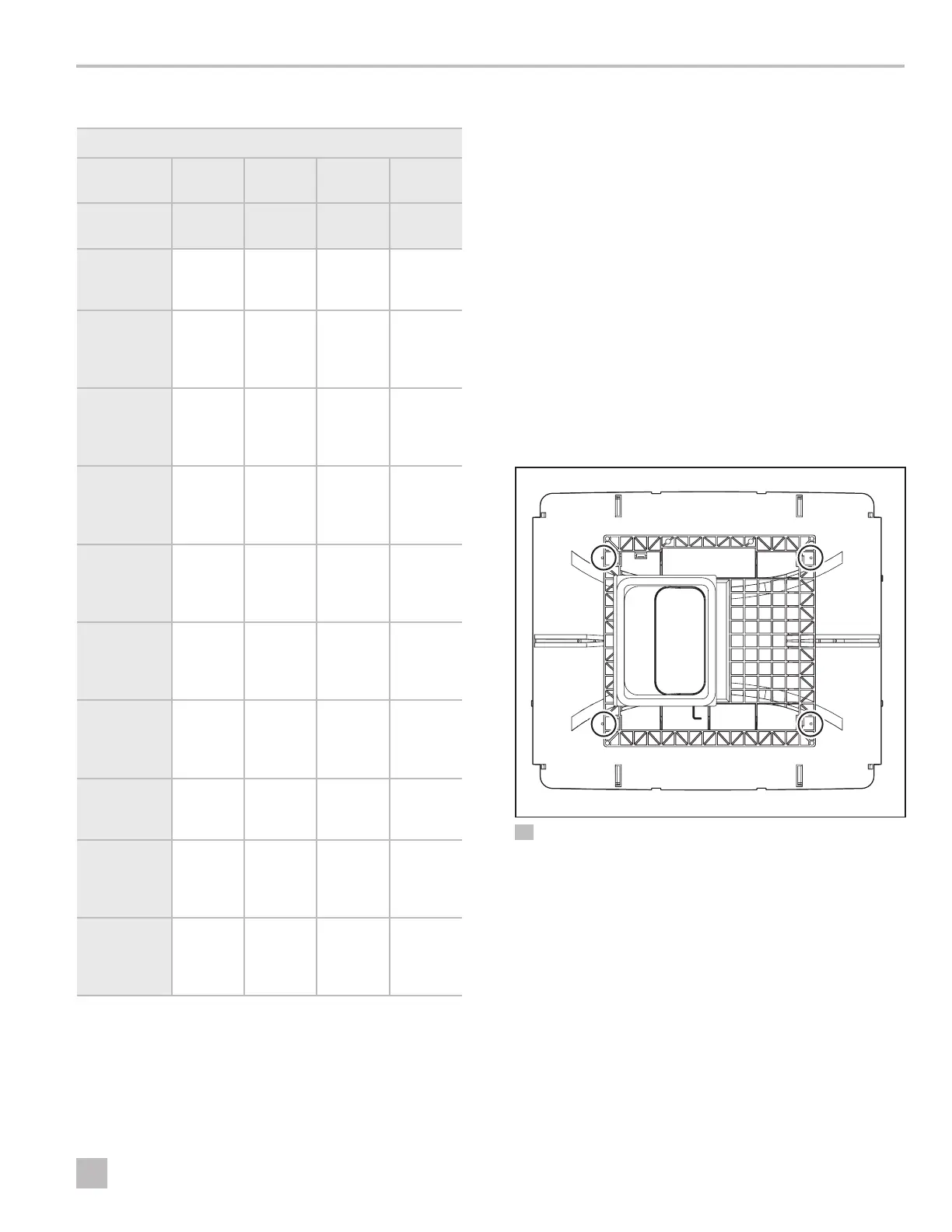

23
EN
Rooop Air Conditioner (Air Distribution Box, Wall Thermostat Controls) Installation
Roof thickness 6.0to 7.5 in. (152 to 191 mm)
All models
1
Roof
thickness
6.0in.
(152 mm)
2
6.5in.
(165mm)
2
7.0in.
(178mm)
2
7.5in.
(191mm)
2
Total divider
thickness
7.0in.
(180mm)
7.5in.
(190mm)
7.9in.
(200mm)
8.3in.
(210mm)
Top foam
0.4 in.
(10 mm)
x x x x
Top foam
ring
0.4 in.
(10 mm)
x x x x
Foam
divider
0.4 in.
(10 mm)
x x x
Foam
divider
0.4 in.
(10 mm)
x
Foam
divider
1.2 in.
(30 mm)
x x
Foam
Divider
1.2 in.
(30 mm)
x x x x
Foam
divider
1.2 in.
(30 mm)
x x x x
ADB adaptor
1.2 in.
(30 mm)
x x x x
Spare
2
foam divider
1.2 in.
(30 mm)
x x x x
Spare
2
foam divider
1.2 in.
(30 mm)
x x x x
1
Up to 0.4 in. (10 mm) of compression of the foam dividers is acceptable and may be
required in some instances.
2
To accommodate a roof thickness greater than 5.5 in. (140 mm), order the optional
accessory kit. See “Tools and materials” on page5.
8.5 Securing the ADB
NOTICE: Overtightening could damage the base pan
or ceiling template. Not enough torque will cause an
inadequate roof seal, and could cause a leak.
I
All models in this manual use a four-bolt pattern to
secure the ADB kit.
This section describes how to secure the ADB to the
roof.
1. For ADBs that fit within the 14.0 x 14.0 in.
(366 x 366mm) ceiling opening, press the entire
ADB up toward the basepan and into the ceiling
opening.
2. Use the following figures to determine the proper
mounting pattern (A, B, C, D) and bolt location.
A
B
C
D
24 Mounting bolt pattern
