Dometic FreshJet3 Series User Manual

7
EN
Rooop Air Conditioner (Air Distribution Box, Wall Thermostat Controls) General information

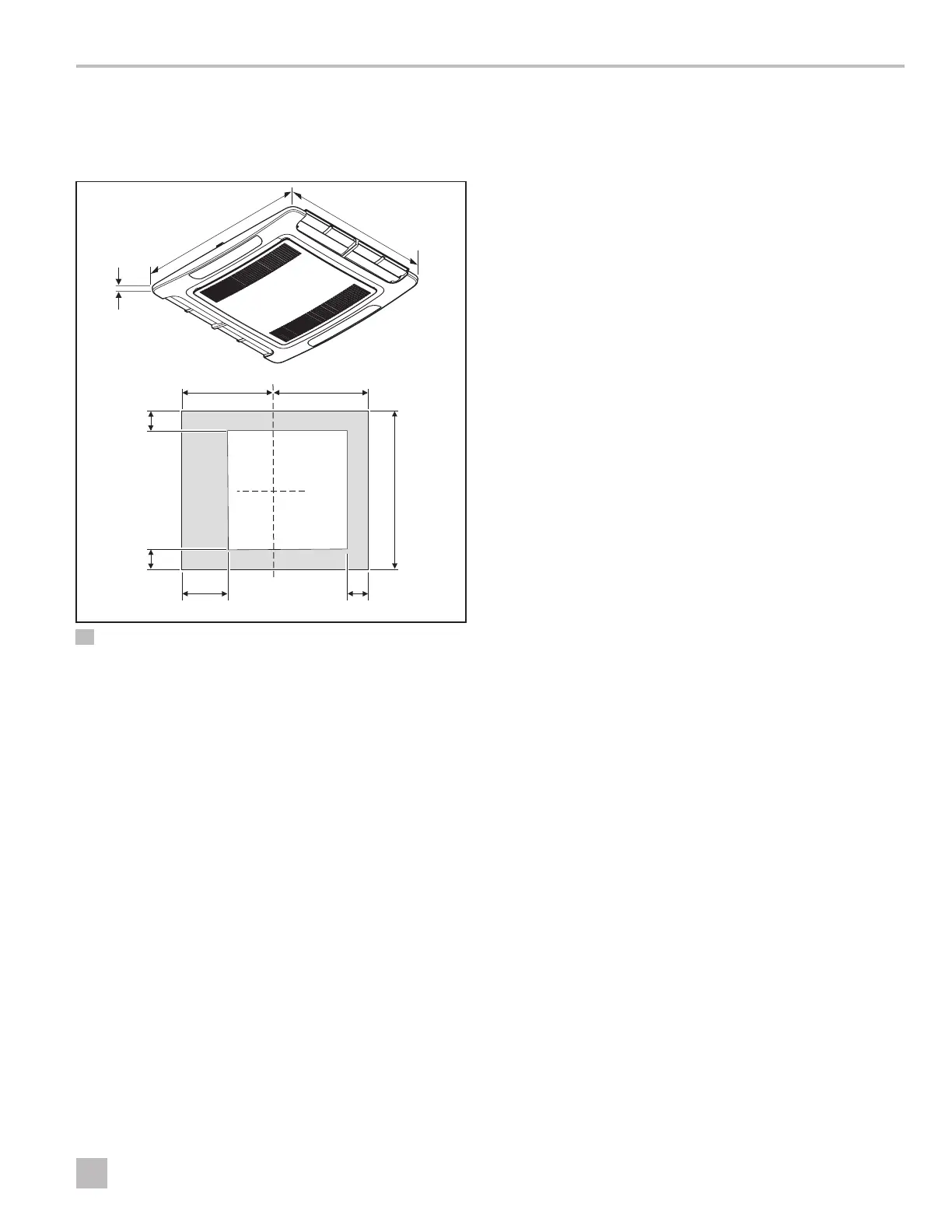

4.6 ADB component dimensions
This section provides the internal dimensions of the ADB
component.
q
t
y
w
rr
ee
rr
uu
ii
ii
oo
aa
uu
3 Dimension measurements
q
Front of unit
y
Center line of unit
w
2.3 in. (58 mm)
u
11.6 in. (295 mm)
e
23.0 in. (584 mm)
i
3.4 in. (86 mm)
r
20.4 in. (518 mm)
o
6.0 in. (152 mm)
t
Roof opening
a
3.0 in. (76 mm)
4.7 Placement requirements
This section describes factors to consider when placing
the rooop component and the thermostat.
4.7.1 Planning the rooop location
The rooop component is specifically designed for
installation on the roof of an RV. To determine where to
place the rooop component, consider these items.
• A 14.3 in. x 14.3 in. (363 mm x 363 mm)
[±0.1in. (3 mm)] square opening and hereinaer
referred to as “roof opening” is required. The
roof opening is part of the return air system of
the rooop component and must be finished in
accordance with NFPA 1192.
• The raer/joist support frames must be spaced
no greater than 16.0 in. (406 mm) on center. The
rooop component is designed to fit over an existing
roof vent opening.
• The distance between the roof and the RV ceiling
must be between 1.5 in. (38 mm) and 6.0 in.
(152mm).
• When no roof vent is available or when another
location is desired, an opening must be cut through
the roof and ceiling of the RV. This opening must
be located between the roof reinforcing members.
Consider these recommendations along with your
cooling needs:
– For a single rooop component: mount the
rooop component slightly forward of the RV’s
center (front to back) and centered from side to side.
– For two rooop components: measuring from
the front of the RV and centering from side
to side, mount the first rooop component
at 1/3 the length of the RV and the second
rooop component at 2/3 the length of the RV.
4.7.2 Planning the thermostat location
The proper location of the thermostat is important to
ensure the unit provides a comfortable RV temperature.
To determine where to place the thermostat, consider
these items:
