2.3.1 PCD5501 LCD Display

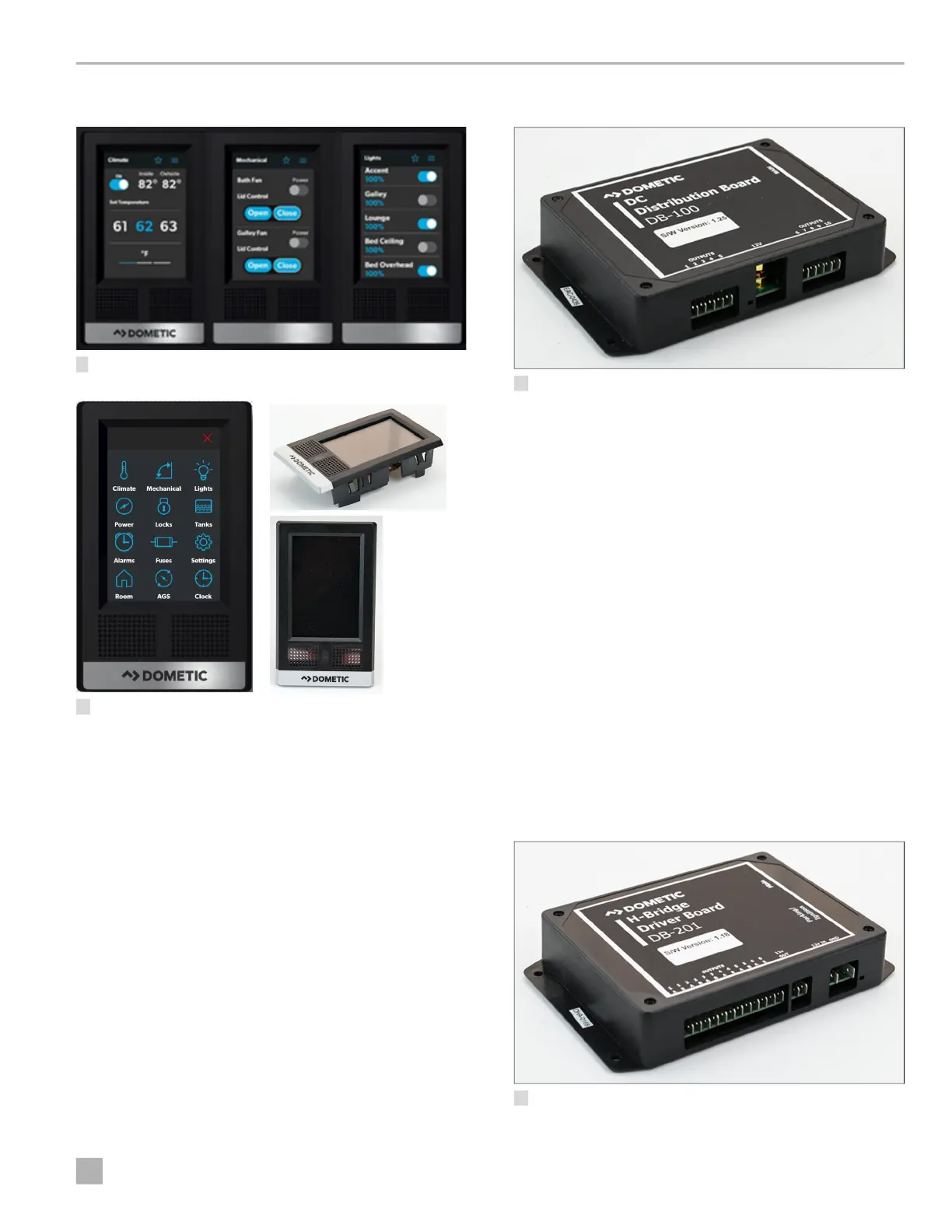

1 PCD5501 LCD Multiple-Screen Interface
2 PCD5501 LCD Single-Screen Interface
The 3.5 in. (89 mm) touch-screen display provides
convenient access to the Dometic Interact system, and
allows users to access, view, and control all connected
devices. It is available in single- or multiple-screen
interfaces and provides:
• One-touch control for user-programmable modes,
such as Home, Away, and Sleep
• Haptic touch and sound feedback
• Control and monitoring of the RV’s vital and
convenience features
2.3.2 DB-100 DC Distribution Board
3 DB-100 DC Distribution Board
The DB-100 distribution board has one 12 VDC input pin
and one 12-pin connector, located on the side, for power
and RVC communications.
There are ten relay outputs, the first five are capable of
handling 10 A on each pin and the next five pins are
capable of handling 5 A on each pin. The load box can
handle up to 75 A total, with 12 VDC on each output. The
outputs are open drain, so the off state is open.
The DB-100 distribution board monitors/controls the
following devices/functions, but are not limited to:
• Lights
• Water pump
• Awnings
• Satellite dish
2.3.3 DB-201 H-Bridge Driver Board
4 DB-201 H-Bridge Driver Board
