6
- Relocate door fulcrum bolt along with spacer ring to left fastening foot (Figure 8)
- Place door on fulcrum bolt (Figure 9)
- Place hinge which comes with the refrigerator into upper left door hinge hole on
door, restore plastic cover, and fasten with 2 screws (Figure 10, 11)
- Restore door hinge cover cap to upper right aperture, then fasten with screw
(Figure 12, 13)
- Make sure that the door can be opened smoothly and that it seals properly.

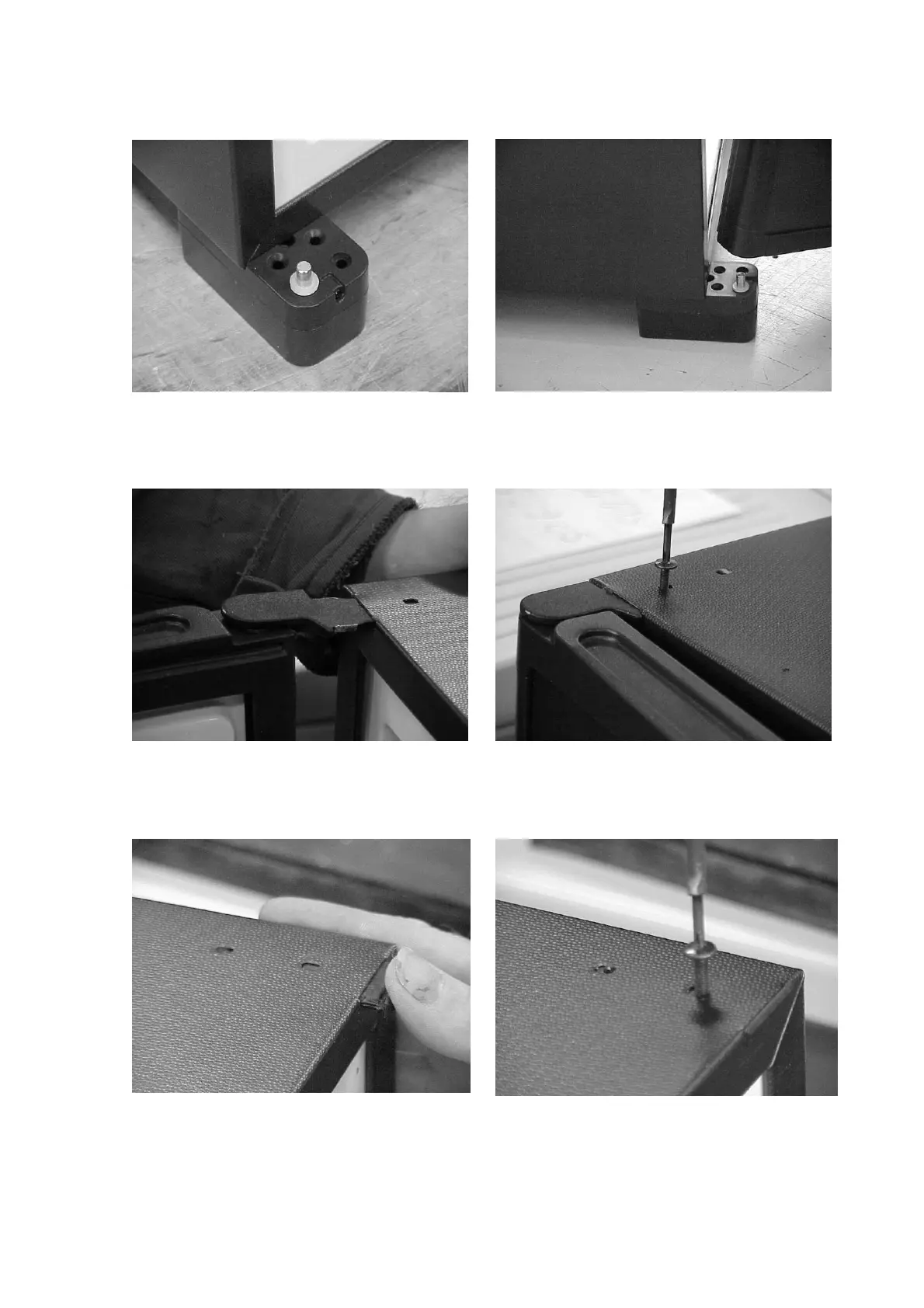

Figure 8 Figure 9
Figure 11 Figure 10
Figure 13 Figure 12
