Dometic RH423LDA - Replacing the Door Lock

9
2.2.4. Replacing the door lock
- Open the door.
- Remove rosette with the help of 2 flat screwdrivers. (Figure 24)
- Remove lock cover. With the bolt contracted, pull the rim of the lock cover
onto the bolt with the help of a flat screwdriver, so that it will not spring
back. (Figure 25)
- Remove lock cover with the help of 2 flat screwdrivers. (Figure 26)
- Remove screws from lock. (Figure 27)
- Remove the lock. (Figure 28)

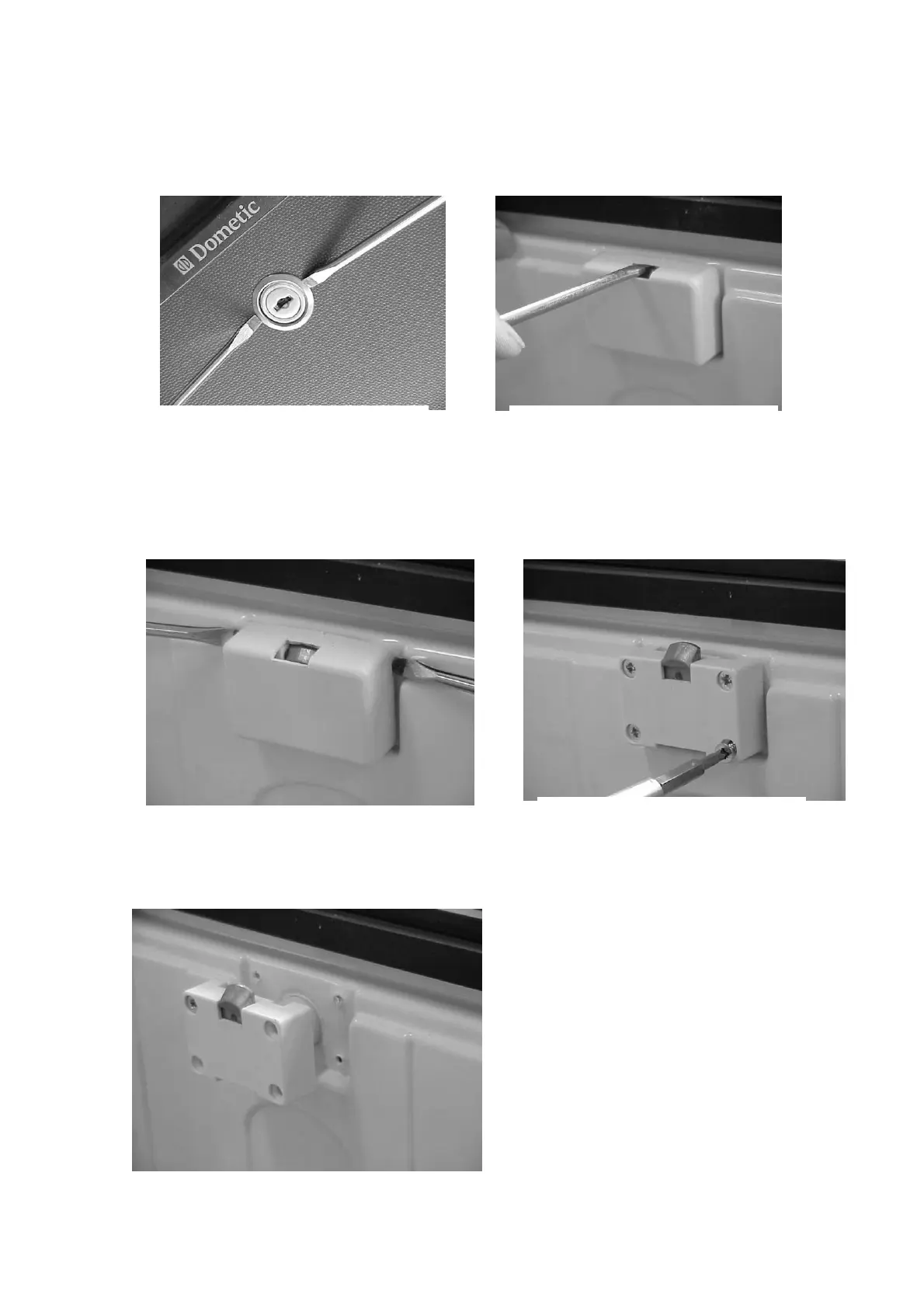

Figure 24 Figure 25
Figure 26
Figure 27
Figure 28
