Dometic RH423LDA - Cabinet, Door; Reversing the Door Hang

5
2.2. Cabinet, door
2.2.1. Reversing the door hang
When refitting, take care not to break the lower hinge bolt!

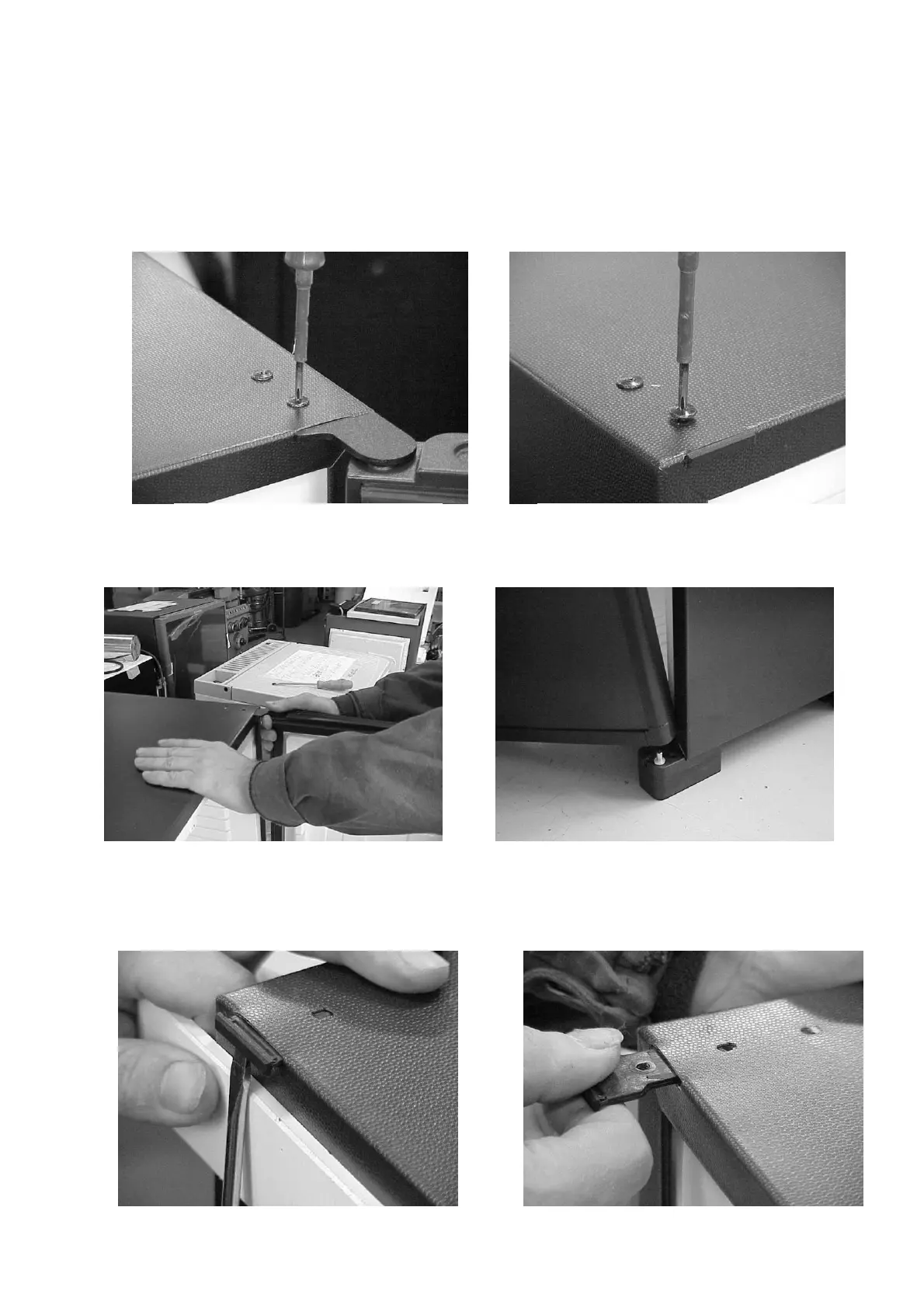

- Remove the screws of the upper door hinge (Figure 2)
- Remove the screws of the upper door hinge cover cap (Figure 3)
- Open the door, pull out the upper door hinge by tilting the door Figure 4)
- Put aside the door hinge, unhook door from lower door hinge (Figure 5)
- Remove lower hinge cover cap. Use a flat screwdriver. (Figure 6, 7)
Figure 2 Figure 3
Figure 4 Figure 5
Figure 7 Figure 6
