2.2.3. Replacing the cowl
- Turn the cabinet on its door, on an appropriate protective underlay. (Figure 19)
- Remove 2 lower screws fastening the cowl (Figure 20, 21), while the rest of the
screws need only loosening, in order that the cowl can be slid from under the
screw. (Figure 22)
- Remove cowl, then restore the replacement part by sliding it under the screws.
(Figure 23)
- Tighten and restore screws. During tightening check that the cowl and the skirt
are level. If necessary, correct.

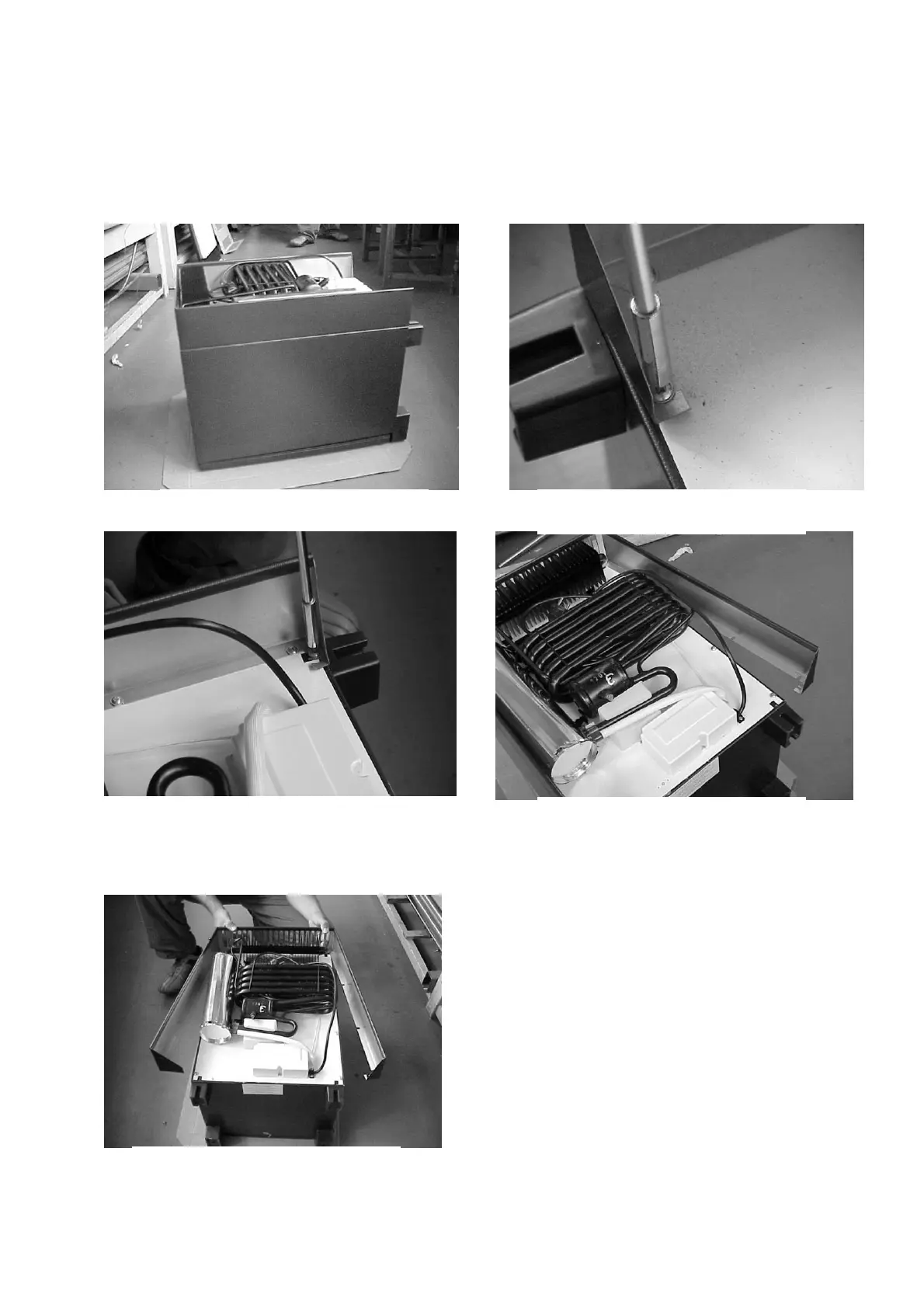

Figure 19 Figure 20
Figure 21 Figure 22
Figure 23
