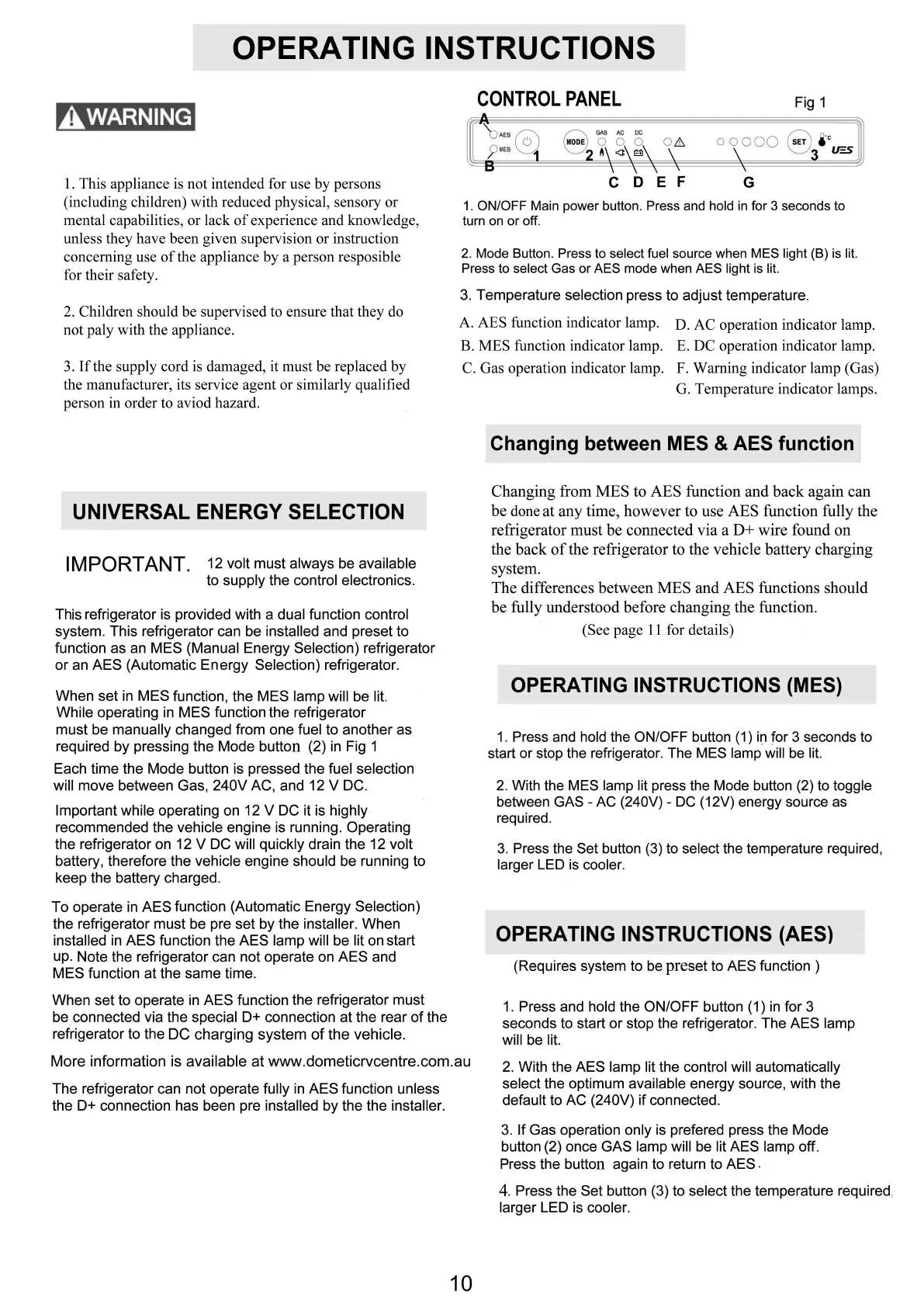

OPERATING INSTRUCTIONS
1. This
appliance
is not intended for use
by
persons
(including
children)
with reduced
physical, sensory
or
mental
capabilities,
or lack of
experience
and
knowledge,
unless
they
have been
given supervision
or instruction
conceming
use of the
appliance by
a
person resposible
for their
safety.
2. Children should be
supervised
to ensure that
they
do
not
paly
with the
appliance.
3.
If
the
supply
cord is
damaged,
it
must be
replaced by
the
manufacturer,
its service
agent
or
similarly qualified
person
in
order to aviod hazard.
UNIVERSAL ENERGY SELECTION
12
volt must
always
be available
to
supply
the
controi electronics.
IMPORTANT.
This
refrigerator
is
provided
with a dual function control
system.
This
refrigerator
can be
installed and
preset
to
function as an MES
(Manuai Energy Selection) refrigerator
or an AES
(Automatic
Energy
Selection)
refrigerator.
When set
in
MES
function,
the MES
lamp
will be
lit.
While
operating
in
MES function
the
refrigerator
must
be
manually changed
from one
fuel to
another as
required by pressing
the Mode
button
(2)
in
Fig
1
Each time the Mode button is
pressed
the fuel
selection
will move between
Gas,
240V
AC,
and 12 V DC.
Important
while
operating
on 12 V DC it is
highly
recommended the vehicle
engine
is
running.
Operating
the
refrigerator
on
12 V
DC will
quickly
drain the 12 volt
battery,
therefore the vehicle
engine
should be
running
to
keep
the
battery
charged.
To
operate
in
AES
function
(Automatic Energy Selection)
the
refrigerator
must be
pre
set
by
the installer. When
installed
in
AES function the AES
lamp
will
be lit
on start
up.
Note the
refrigerator
can not
operate
on AES and
MES function at the same time.
When set to
operate
in AES
function
the
refrigerator
must
be connected via the
special
D+ connection at the rear of the
refrigerator
to the
DC
charging system
of the vehicle.
CONTROL
PANEL
Fig
1
A
WARNING
DEF
G
1. ON/OFF Main
power
button. Press and hold in for 3 seconds to
turn on or off.
2. Mode Button. Press to select fuel source when MES
light (B)
is lit.
Press to select Gas or AES mode when AES
light
is lit.
3.
Temperature
selection
press
to
adjust temperature.
A. AES function indicator
lamp.
D. AC
operation
indicator
lamp.
B. MES function indicator
lamp.
E. DC
operation
indicator
lamp.
C. Gas
operation
indicator
lamp.
F.
Warning
indicator
lamp
(Gas)
More
information is
available
at
www.dometicrvcentre.com.au
The
refrigerator
can not
operate fully
in AES function unless
the
D+
connection has been
pre
installed
by
the the installer.
10
G.
Temperature
indicator
lamps.
Changing
between MES
&
AES function
Changing
from MES to AES function and back
again
can
be done
at
any
time,
however to use AES function
fully
the
refrigerator
must be connected via a D+ wire found on
the back of the
refrigerator
to the vehicle
battery charging
system.
The
differences between MES
and
AES functions should
be
fully
understood before
changing
the function.
(See
page
11
for
details)
OPERATING INSTRUCTIONS
(MES)
1. Press and hold the ON/OFF button
(1)
in for 3 seconds to
start or
stop
the
refrigerator.
The MES
lamp
will
be lit.
2.
With
the
MES
lamp
lit
press
the
Mode button
(2)
to
toggle
between GAS
-
AC
(240V)
-
DC
(12V) energy
source as
required.
3. Press the Set button
(3)
to select the
temperature required,
larger
LED
is cooler.
OPERATING INSTRUCTIONS
(AES)
(Requires system
to be
preset
to AES function
)
1.
Press and hold the ON/OFF button
(1)
in
for 3
seconds to start or
stop
the
refrigerator.
The AES
lamp
will
be lit.
2. With
the AES
lamp
lit
the control
will
automatically
select
the
optimum
available
energy
source,
with
the
default to AC
(240V)
if connected.
3.
If Gas
operation only
is
prefered press
the
Mode
button
(2)
once GAS
lamp
will
be lit AES
lamp
off.
Press
the button
again
to return to AES.
4.
Press the Set button
(3)
to select the
temperature
required.
larger
LED is cooler.
