INSTALLATION INSTRUCTIONS
GENERAL
INFORMATION
The
installation,
servicing
and
gas
installation must be
per-
formed
by
an
authorised/qualified person.
The
refrigerator
must be installed in accordance with the manufacturers in-
stallation
instructions,
local
gas fitting regulations, municipal
building
codes,
electrical
wiring regulations,
AS 5601
-
Gas
Installations' and
any
other
statutory regulations.
PACKAGING
The
packaging
of this
appliance
is
designedto
withstand the
transportation
from the
factory
to the
point
where it will be
installed in the recreational vehicle.
Before
starting
to
install the
appliance, please,
make sure
all
parts
of the
packaging
have been
removed,
so
there will not
be
anything
left that
may
come
into contact with
hot
parts
of
the
appliance
or obstruct the combustion
exhaust
gases
or
the
air
movement around the
cooling
unit.
VENTILATION
REQUIREMENTS
The installation shall be made
in
such a manner as to
separate
the combustion
system
from the
living space
of the mobile
home or recreational vehicle.
Proper
installation
requires
one
lower fresh air intake and one
upper
air outlet vent with a
separate gas
exhaust outlet.
We recommend
fitting
the Dometic ventilation
system,
which
is
specially developed by
Dometic for
this
purpose.
The
ven-
tilation kits must be installed and used without modification.
An
opening
toward the outside
at
floor level
in the
refrigera-
tor
compartment
must
be
provided
for ventilation of heavier-
than-air
fuel
gases.
The lower vent of the recommended kits
is
provided
with
proper
size
openings.
The
flow of combus-
tion and
ventilating
air
must not be obstructed.
The lower side vent
provides
an
adequate
access
opening
for
ready serviceability
of the burner
and
control manifold of the
refrigerator.
This should be
centred on the back of the
refrig
-
erator.
CLEARANCES
G
N
&
Ci
If the lower
grille
is not at floor level where
leaking gas
can
escape,
a 40
mm
hole to the outside should be made
in
the
floor of the recess to
drain
any
unburned
gas
to the outside.Fit
the hole with wire mesh and an
angled plate
to
protect
it from
Stones,
mud and vermon.
RM2356

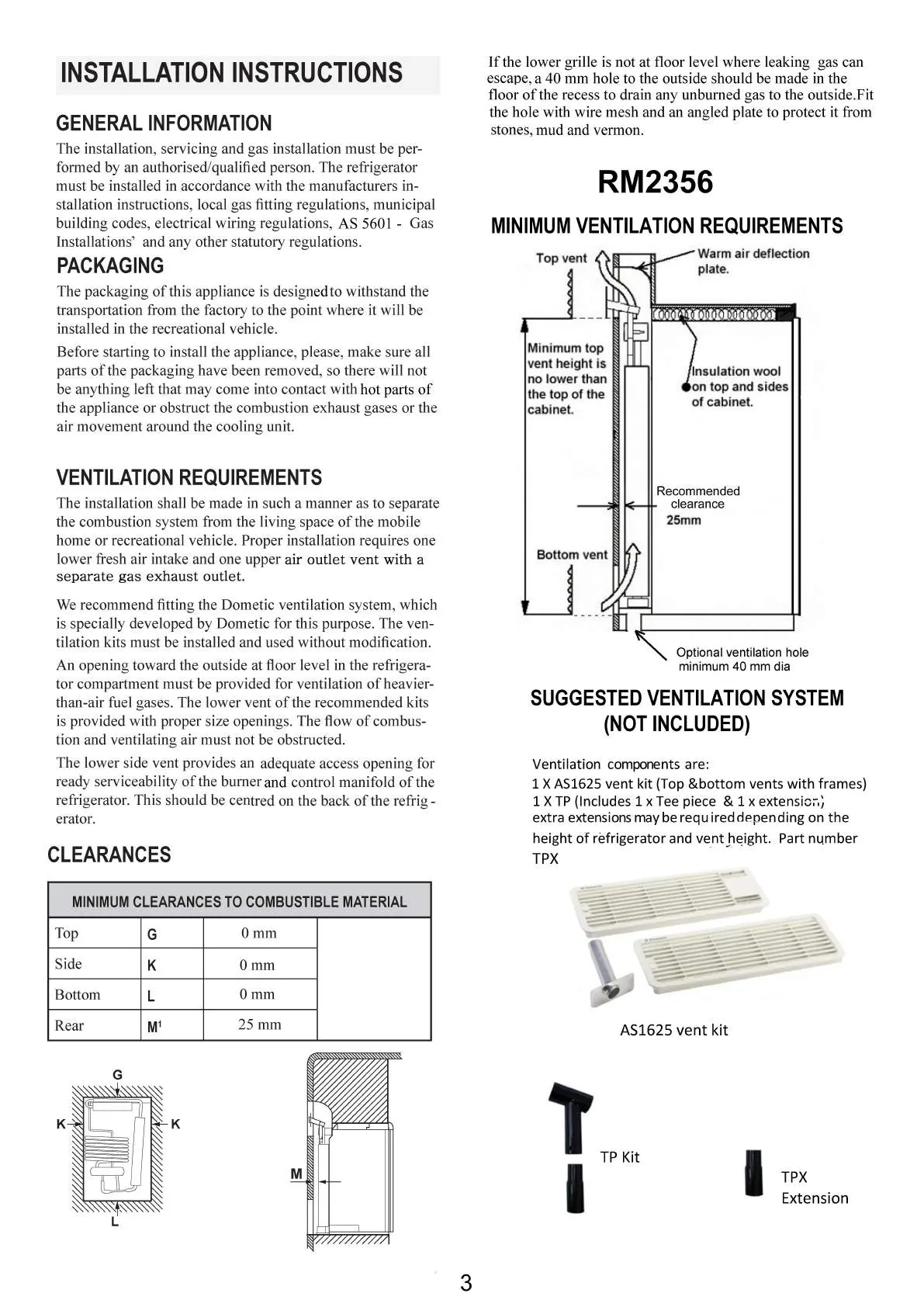

MINIMUM VENTILATION
REQUIREMENTS
plate.
Minimum
top
Recommended
<
clearance
25mm
Bottom vent
Top
vent
Warm
air deflection
vent
height
is
no lower than
Insulation wool
the
top
of the
on
top
and
sides
of cabinet
cabinet.
Optional
ventilation hole
minimum 40
mm
dia
SUGGESTED VENTILATION SYSTEM
(NOT INCLUDED)
Ventilation
components
are:
1 X AS1625 vent kit
(Top
&bottom vents with
frames}
1X
TP
(includes
1 x
Tee
piece
&
1 x
extension;
extra extensions
may
be
requireddepending
on the
height
of
refrigerator
and vent
height.
Part
number
TPX
AS1625 vent kit
MINIMUM CLEARANCES
TO
COMBUSTIBLE MATERIAL
0mm
Top
G
Side
K
0mm
Bottom 0mm
Rear
Mt
25mm
TP Kit
TPX
Extension
3
