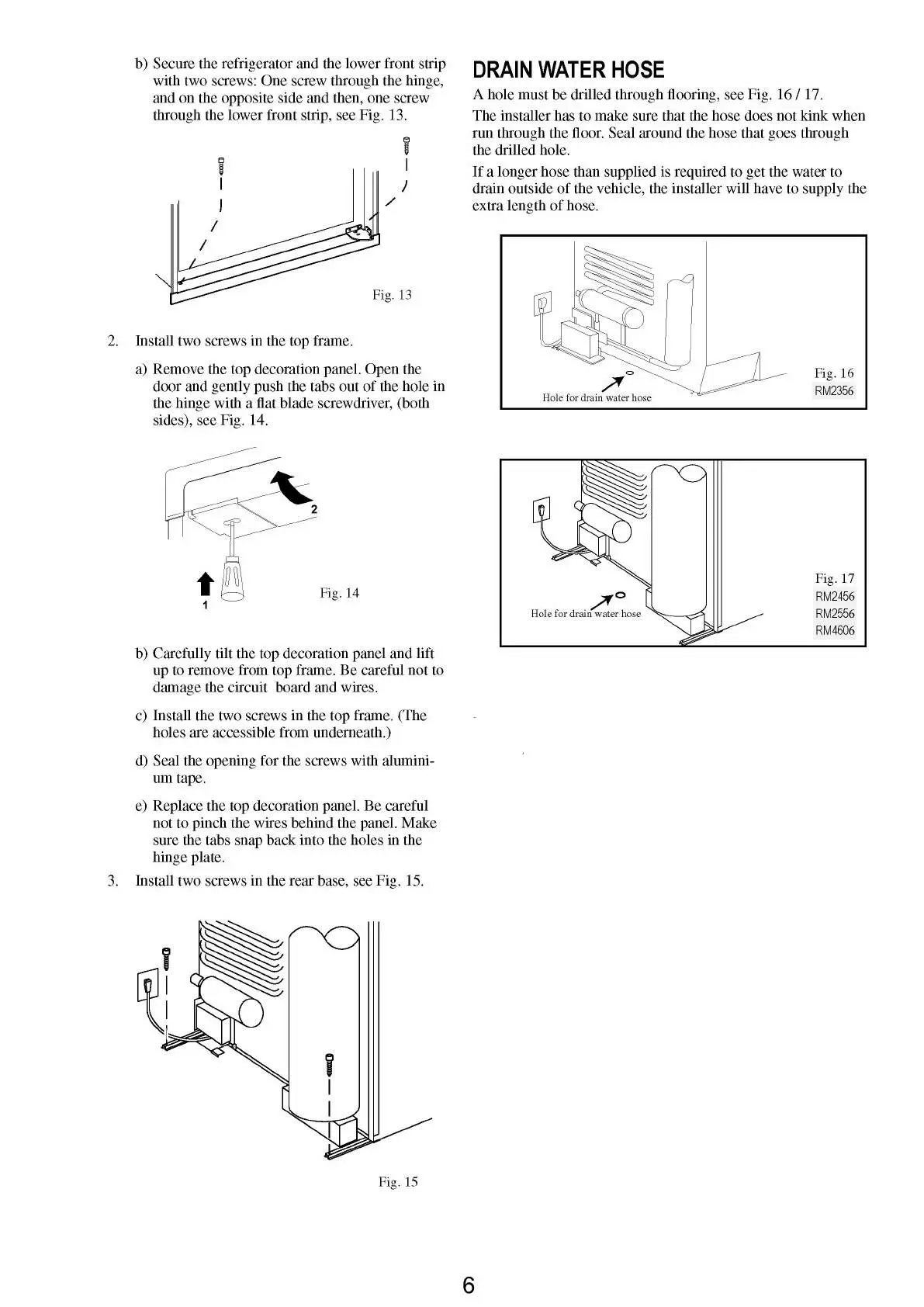

b)
Secure the
refrigerator
and the lower front
strip
with
two screws: One screw
through
the
hinge,
and on the
opposite
side and
then,
one screw
through
the
lower front
strip,
see
Fig.
13.
3
1
Fig.
13
2. Install two screws in the
top
frame.
a)
Remove the
top
decoration
panel. Open
the
door and
gently push
the tabs out of the hole
in
the
hinge
with a flat blade
screwdriver, (both
sides),
sce
Fig.
14.
Fig.
14
b)
Carefully
tilt the
top
decoration
panel
and
lift
up
to remove
from
top
frame. Be careful not to
damage
the circuit board and wires.
c)
Install the two screws
in
the
top
frame.
(The
holes
are
accessible
from
underneath.)
d)
Seal the
opening
for the screws with alumini-
um
tape.
e)
Replace
the
top
decoration
panel.
Be careful
not to
pinch
the wires behind the
panel.
Make
sure the tabs
snap
back into the holes in the
hinge plate.
3. Install two screws
in
the rear
base,
see
Fig.
15.
Fig.
15
DRAIN WATER
HOSE
A
hole must be drilled
through flooring,
see
Fig.
16/17.
The installer has to make
sure
that the hose does not kink
when
run
through
the floor. Seal around the hose that
goes through
the drilled hole.
If a
longer
hose than
supplied
is
required
to
get
the
water
to
drain
outside of the
vehicle,
the installer
will
have to
supply
the
extra
length
of hose.
:
Fig.
16
Hole for drain water hase
RM2356
O
QD
Fig.
17
RM2456
Hole
for drain water hose
RM2556
RM4606
