4G. WIRING
Refer to the wiring diagram supplied with the unit you are working on, and make sure all wiring connections are
correct and tight.
THIS IS AN ENERGIZED CIRCUIT. ELECTRICAL SHOCK CAN OCCUR.
BEFORE CHECKING THESE COMPONENTS BE SURE THERE IS NO POWER TO THE APPLIANCE.
WATER SUPPLY
To operate properly, the water pressure in the water
supply line must be between 15 Ibs. PSI and 125 Ibs.
PSI.
Lower water pressure, water turned off, or obstructions
or air in the water line can cause low or no ice produc-
tion.
First check to see that the water supply is fully turned
on. Visually check the line for kinks, etc. which might
obstruct the flow of water.
To remove trapped air, loosen the connection at the
solenoid water valve of the appliance. Ensure that
pressurized water is reaching this point, and bleed off
any air in the line. Retighten the connection, making
sure there are no leaks.
AMES & AES

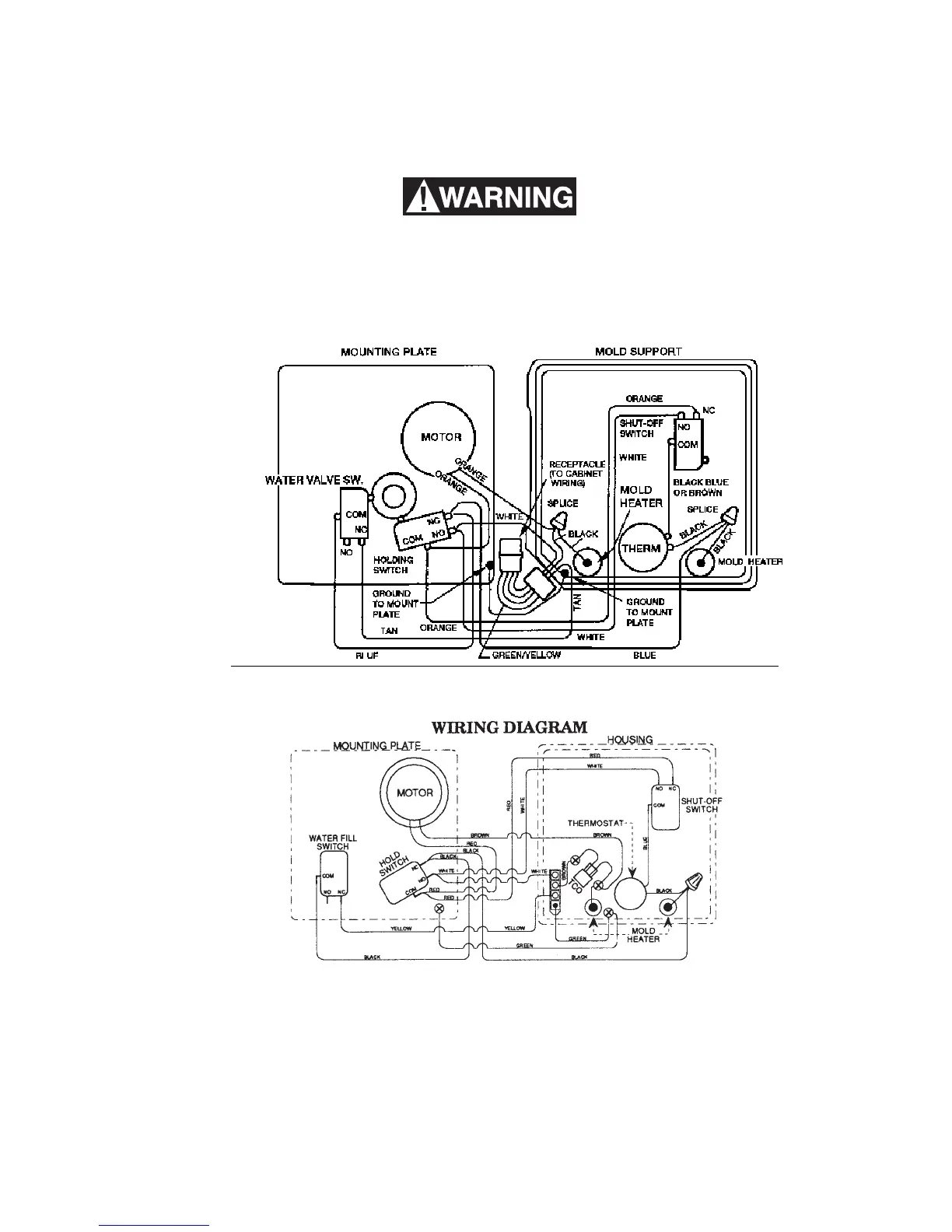

ICE MAKER TYPICAL WIRING DIAGRAM
ROYALE/ELITE ICE MAKER TYPICAL WIRING DIAGRAM
To Next Page
