RF Baghouse, Models RFWP and RFWPH
8
Typical Hardware
Bolt, Grade 5
2-Hardened Washers per ASTM F436
Lock Washer
Nut, Grade 5
Flanged Nut, Case Hardened
Flanged Bolt, Case Hardened
Hardware Size
Size Assembly Recommended Bolt
Torque (ft/lbs)
3/8-in Ladder
Platform
25-30
1/2-in Hopper
Body(ies)
Involute Inlet
High Inlet
Roof
55-75
5/8-in Tube Sheet 110-150
3/4-in Leg Structure 200-260
Grade 5 Hardware
Flanged Hardware
Hardware
roof
clean-air
plenum
dirty-air
plenum
clean-air
outlet
tube sheet
(sandwiched)
involute
inlet
optional
ladder
optional
platform
leg
frame
optional
explosion
vent
hopper outlet
hopper

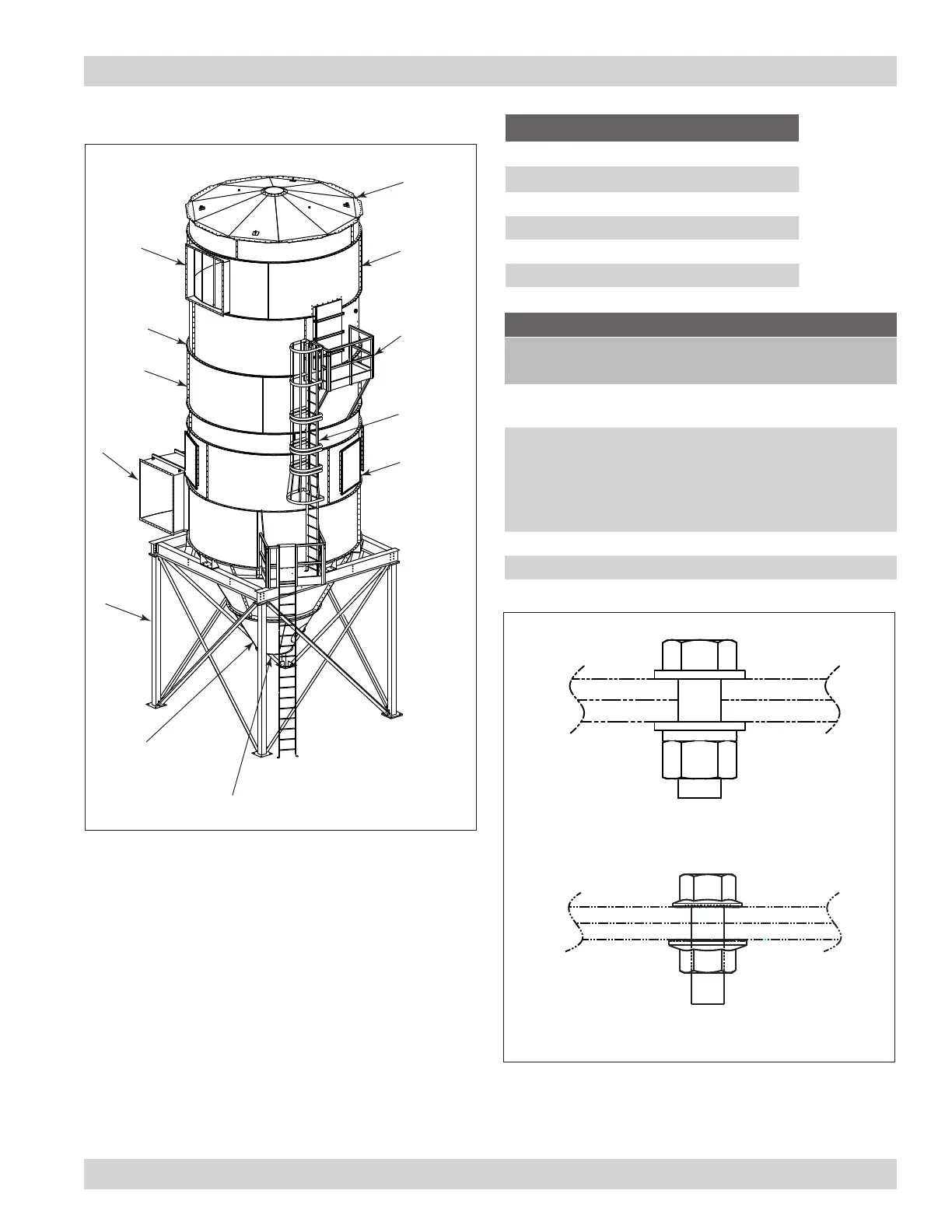

Typical Installation Components, Model RFWP
shown
Typical Installation
