Hopper Assembly
1. Mount the upper hopper panel upside down on a at,
clean surface. Use the tube sheet as a xture if there is
no at area to work on. Do not apply sealant between the
hopper panel and the tube sheet.
2. Temporary supports at the ends of each hopper panel
may be required until the upper hopper ring is complete.
upper hopper
assembly
upper hopper
panel
sealant
pattern
hopper mating
flange
Sealant Application
bolt
hole
flange
edge
sealant
1/8-in
from
flange
edge

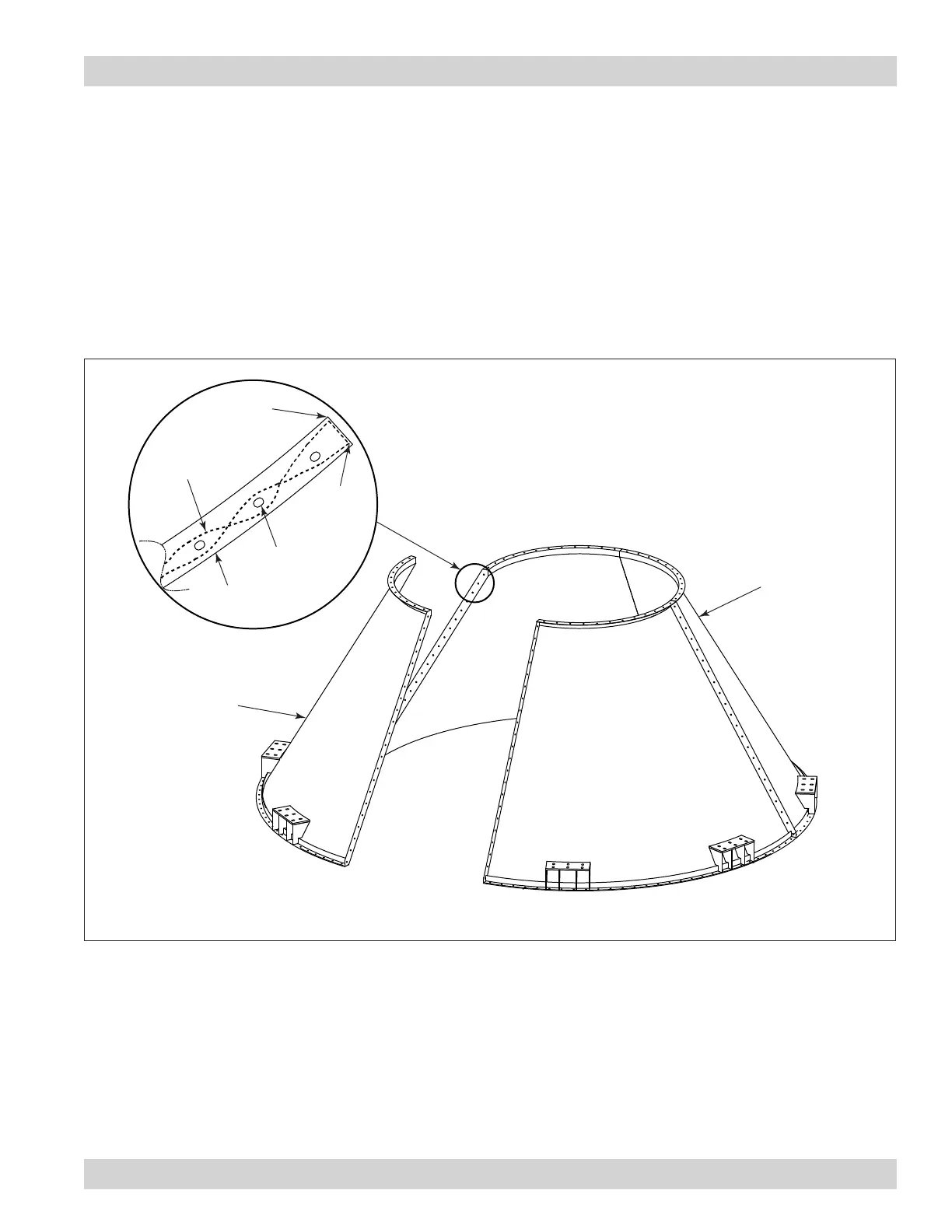

Upper Hopper Assembly (Upside Down)
3. Before connecting the adjacent hopper panel, apply
sealant to the mating ange within 1/8-in of both ange
edges as shown.
4. Set the next panel and hand-tighten the hardware
(connecting bolts should draw the adjoining anges
together but still allow for some slippage). Repeat steps
until upper hopper assembly is complete.
