2. After assembling the perimeter body panel assembly,
install the interior bafes by bolting them to the inlet
assembly.
3. Off to the side, assemble the inner ow straightener ring.
The inner ring panels overlap each other to complete the
ring. Orient all hardware bolting from the outside of the
ring to the inside of the ring to eliminate any interference
in the next step. Lift and then lower the inner ow

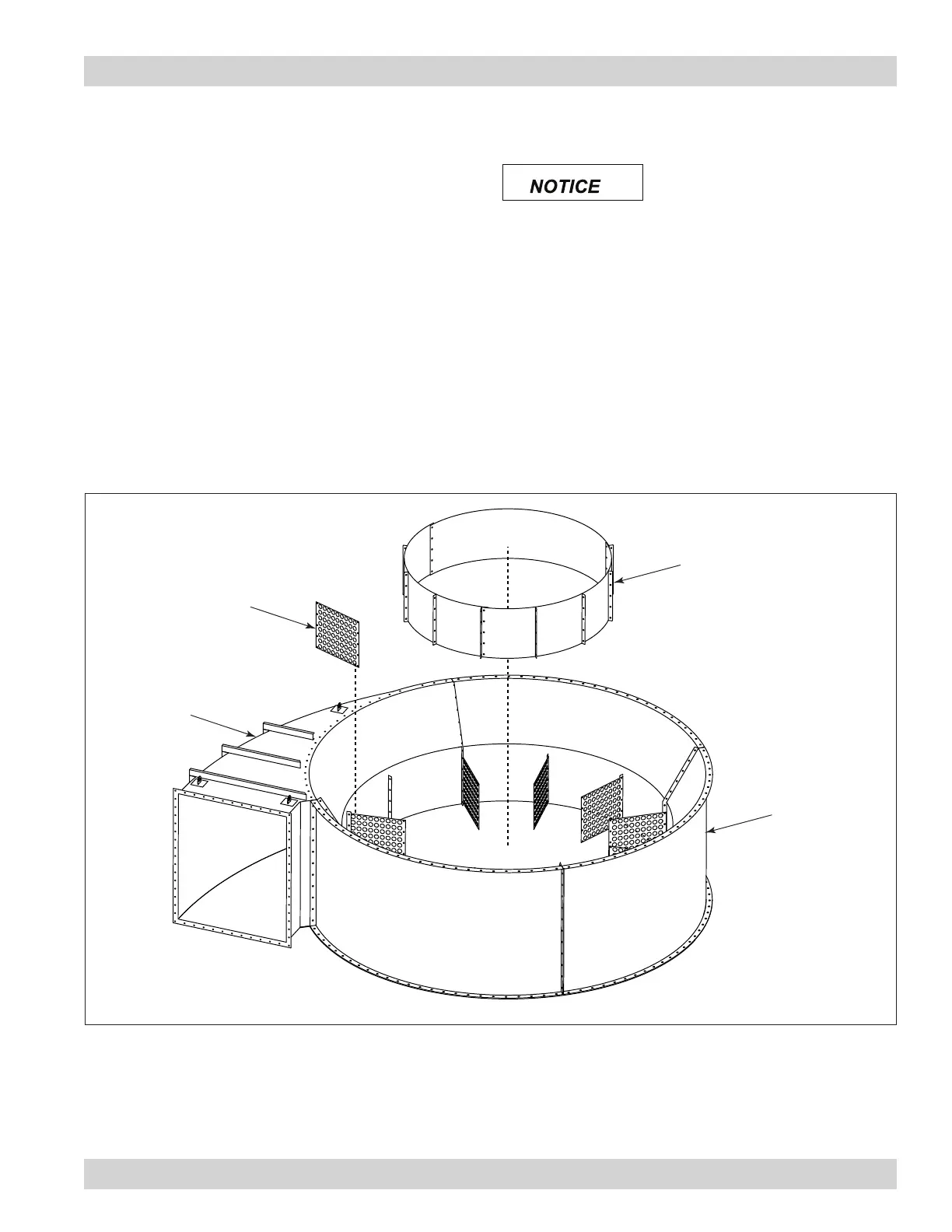

straightener ring into the center of the inlet as shown.
inlet assembly
interior baffle
inner flow
straightener ring
90 body
involute inlet
o
Improper installation of internal
bafes and inner ow straightener
ring will compromise structural integrity. Ensure
proper installation of the internal bafes and
inner ow straightener ring.
4. Rotate the inner ow straightener ring until all adjoining
anges make contact. Bolt together and tighten all bolts.
Inner Flow Straightener Ring Installation
