RF Baghouse, Models RFWP and RFWPH
20
4. After completing the rst body panel ring assembly, apply
sealant to the top ange. See Detail A.
Note: The vertical seams between body panel
assemblies must be spaced by a minimum
of 4 bolt spaces as shown in Detail B. Insert
hardware and hand-tighten.
5. Assemble the second ring on top of the rst. For a 12-ft
bag length collector, the next ring will be a 24-in tall ring.
For a 10-ft bag length collector, the next ring will be a 66-
in tall ring. This ring of the Dirty Air
Detail C: Gusset Panel
Orientation
12-ft Bag Dirty Air Plenum - Involute Inlet 10-ft Bag Dirty Air Plenum - Involute Inlet
Detail A: Sealant Application
Detail B: Panel Installation
adjoining
panels
sealant pattern
upper flange
bolt hole
third ring
second ring
first ring
See Detail C
See Detail B
first ring
second ring
See Detail B
vertical
seam
spaced by a
minimum of
4 bolt spaces)
vertical
flange
vertical
flange
welded
gusset
top panel
flange

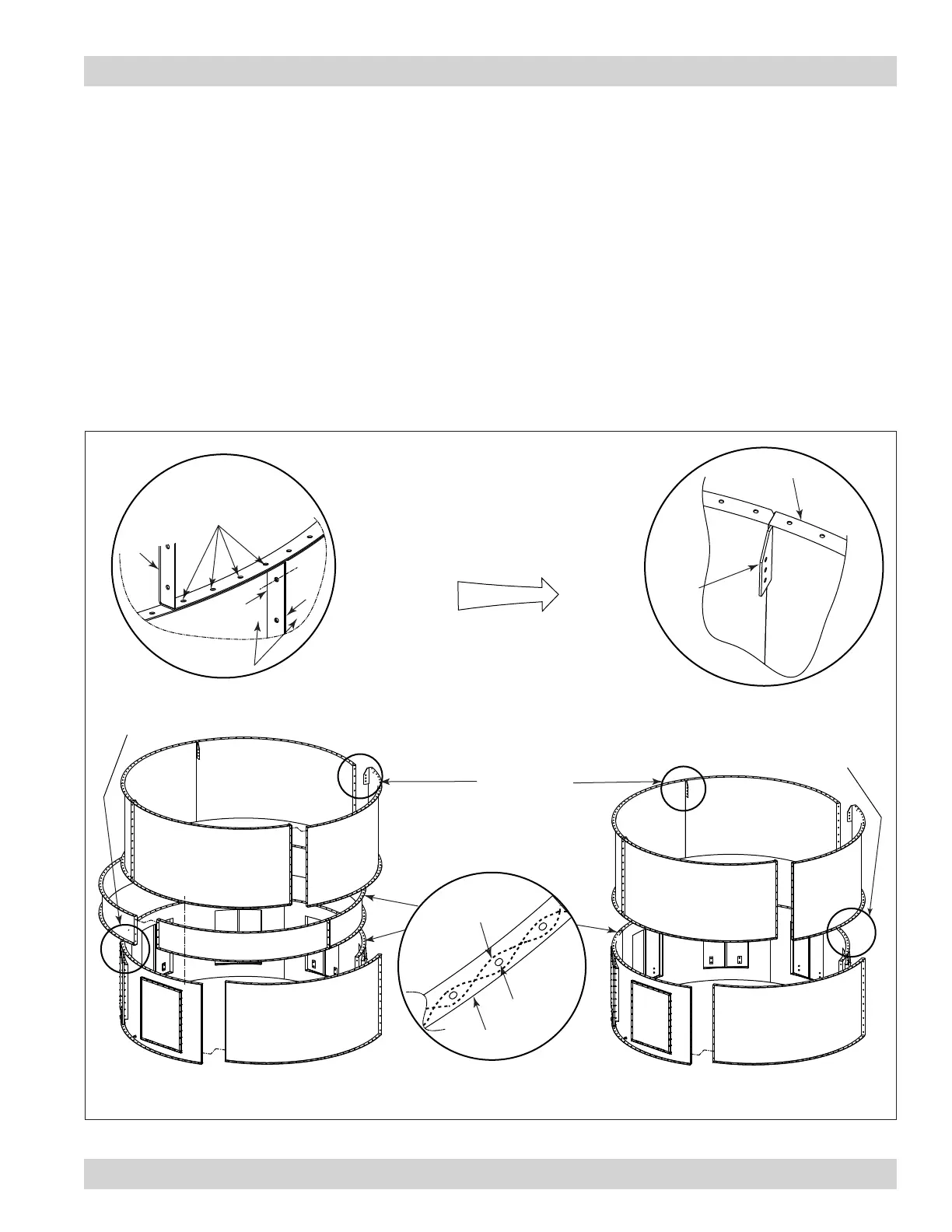

Dirty Air Plenum Panel Assembly - Involute Inlet
Plenum and additional rings will be assembled using the
prior ring as a template. Lift a panel into place taking
note that vertical seams must be spaced by a minimum
of 4 bolt spaces. See Detail B. Insert hardware and hand
tighten.
Note: The upper most ring of the dirty air assembly
uses panels with gussets welded to them.
Gussets must be oriented to the top of the ring.
These will be used to secure the tube sheet in
later steps. See Detail C.
