25
Donaldson Company, Inc.

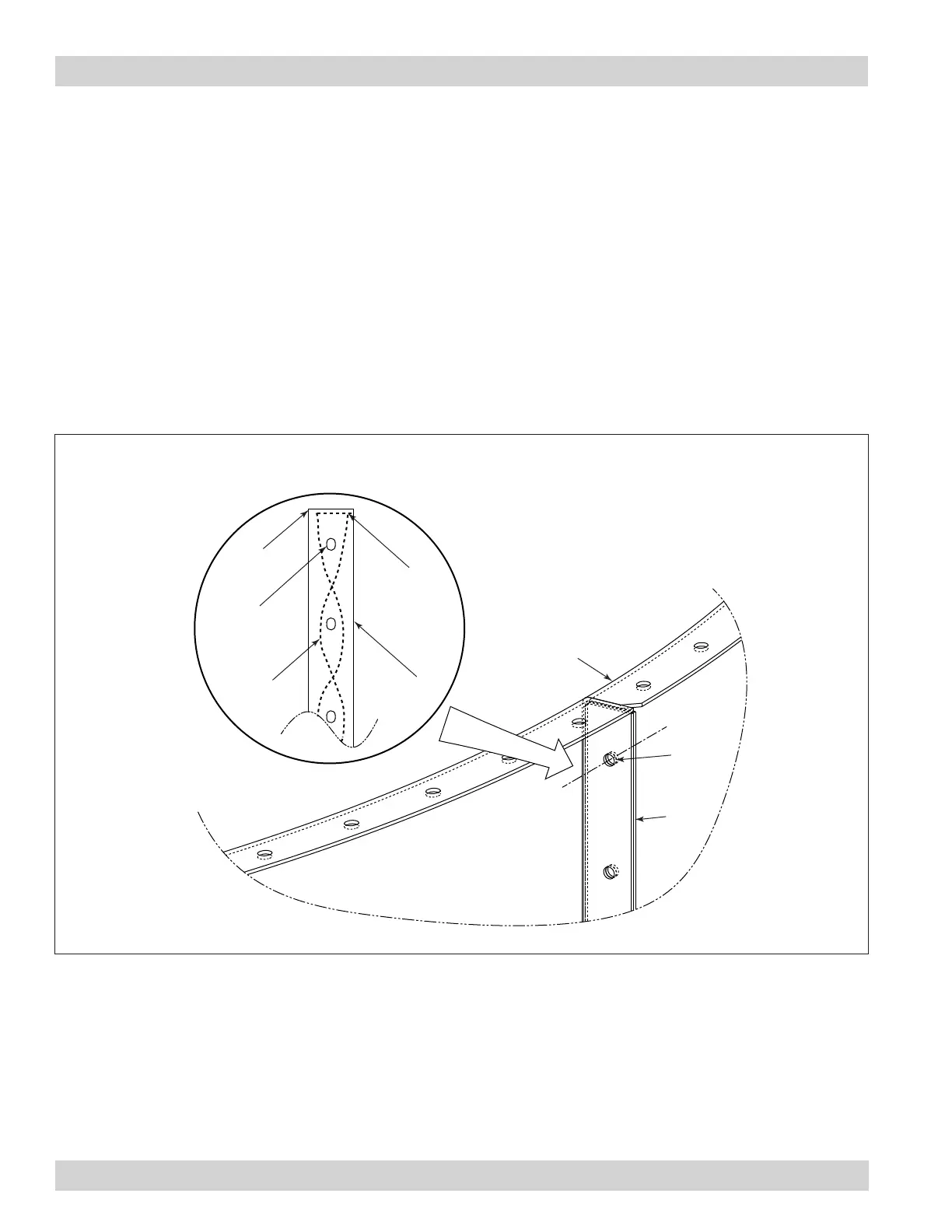

body
panel
bolt hole
sealant
pattern
vertical
flange
bolt
hole
flange
edge
sealant
1/8-in
from flange
edge
Sealant Application
vertical
flange
Panel Installation
instructions below. Continue by placing explosion vent
panels until reaching the high inlet. Donaldson-supplied
customer drawing takes precedence over these manual
instructions.
For the 776RFWPH and 851RFWPH, the next (2)
panels will be standard, non-explosion vent panels. The
remaining (2) panels in that ring will have (3) explosion
vents each. Donaldson-supplied customer drawing takes
precedence over these manual instructions.
6. Once two or more panels are side by side, apply sealant
to the vertical ange of the panel within 1/8-in of the
vertical ange’s top and bottom edge as shown and press
it up against the adjoining panel. Align the holes and
insert the 1/2-in bolt hardware. Keep hardware hand-
tightened.
