foam explosion vent
align holes
1.75-in
(2x)
1.81-in
(2x)
explosion vent plate,
paint-side out

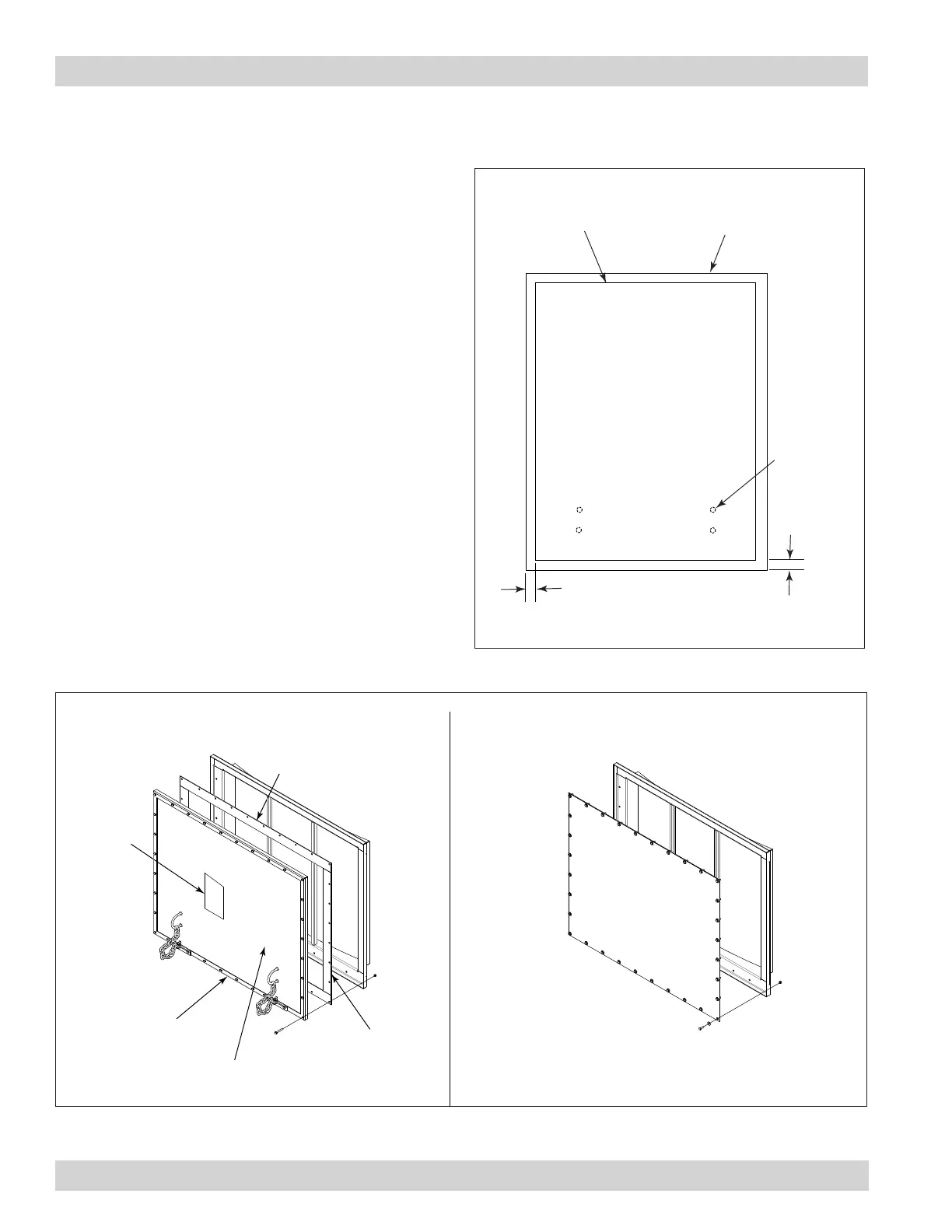

Explosion Vent Assembly - Sealant Application
11. Properly attach lifting lugs and lift dirty air plenum with the
lifting lugs per note on page 13.
12. Set the dirty air plenum off to the side but within reach of
the crane. Use standoffs under the anges to keep the
plenum off of grade.
13. If applicable, install optional explosion vents by referring
to the Donaldson-supplied drawing to nish explosion
vent assembly and vent installation to the collector.
Explosion Vent
explosion vent
label
explosion vent
gasket- side
explosion vent door assembly
explosion vent frame
IEP KER VentFoam-in-Shear Vent
