7. Once the second ring assembly is complete, tighten the
bolts between the rst and second ring, followed by the
vertical anges and lifting lugs.
8. For a 12-ft bag length collector, the third and nal clean
air plenum ring will be 24-in tall. Assemble ring following
step 2. Attach the 4 hole 3/4-in lifting lugs on the outside
of the collector using the grade 8, 1/2-in diameter
hardware per print.

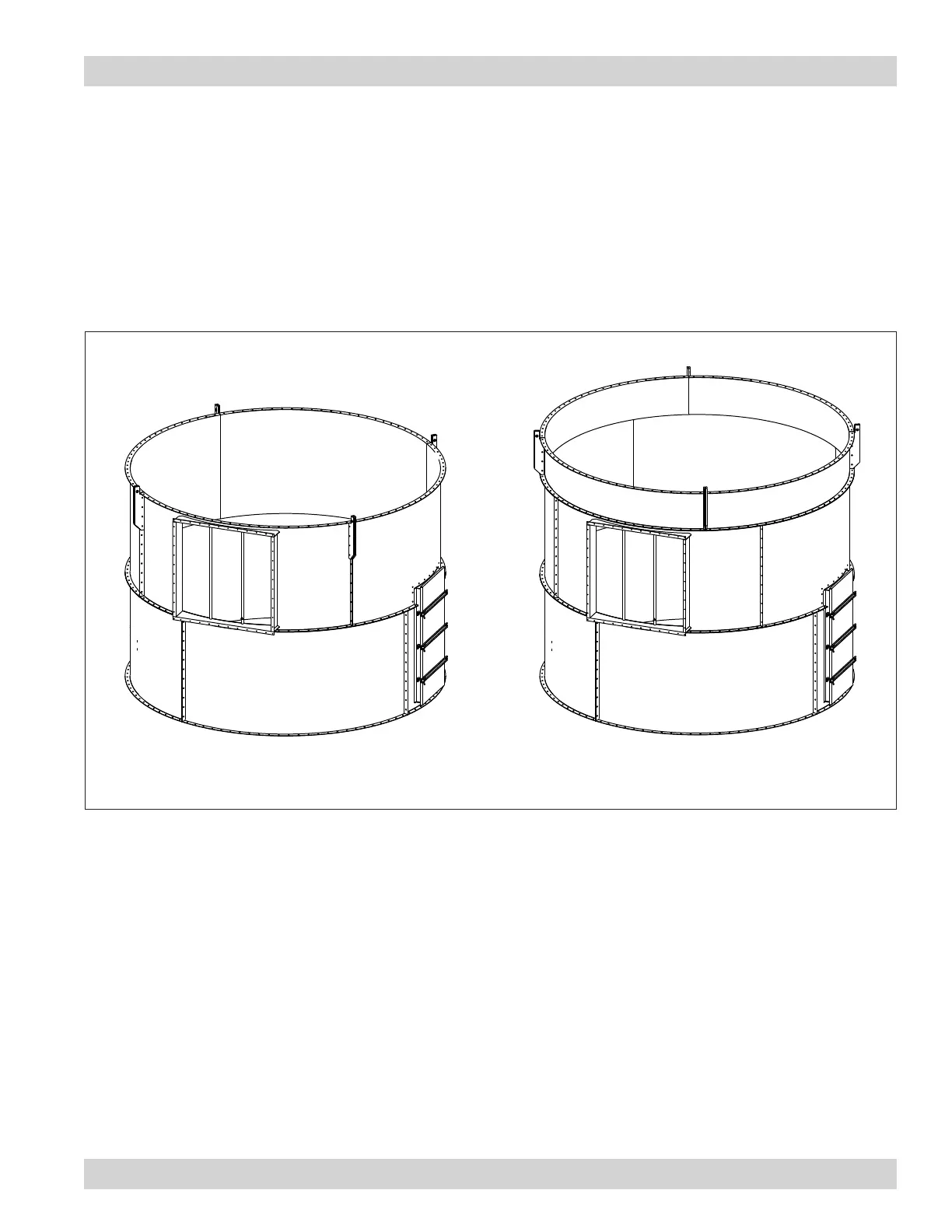

Clean Air Plenum
10-ft Bag Clean Air Plenum 12-ft Bag Clean Air Plenum
first ring
second ring
first ring
second ring
third ring
To Next Page
