33
Donaldson Company, Inc.
6. Install the cleaning arms to the Air Tank Assembly
(reference the included Cleaning Assembly drawing
AD3627301 or AD3627302 depending on size). The
Centering Plate found at the bottom of the shaft of the
rotating Air Chamber Weld will later be installed to the
tube sheet (after collector installation).
air tank
assembly
door panel
cleaning arm
first ring
clean air
plenum
centering plate

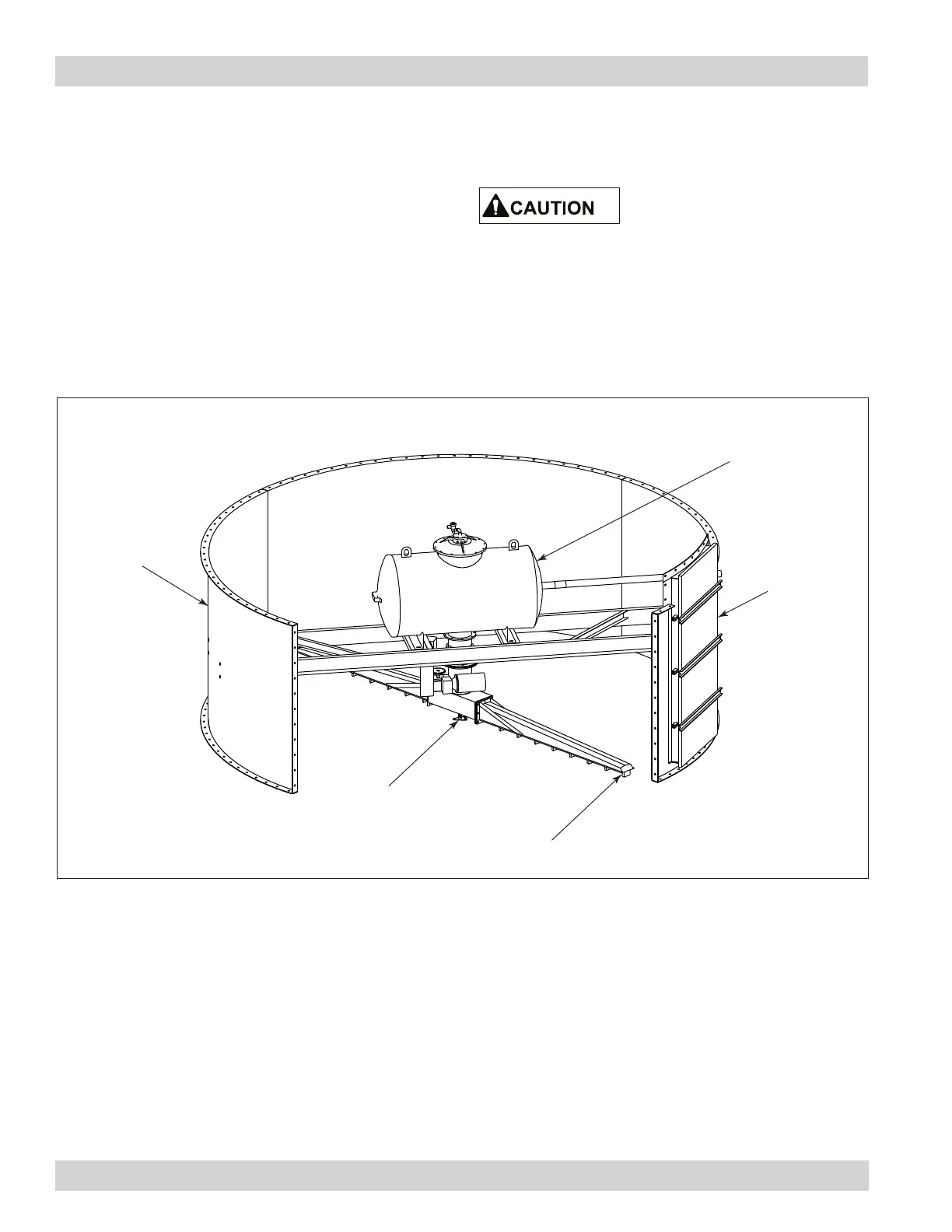

Cleaning Arm Installation
Damage may occur to the rotating
arms if interference is made while
lifting or assembling body sections.
Take precaution against pinching when handling
and installing the cleaning system components.
