RF Baghouse, Models RFWP and RFWPH
46
Air Supply Pipe Sizing
Model Pipe Diameter
570-905 2-in

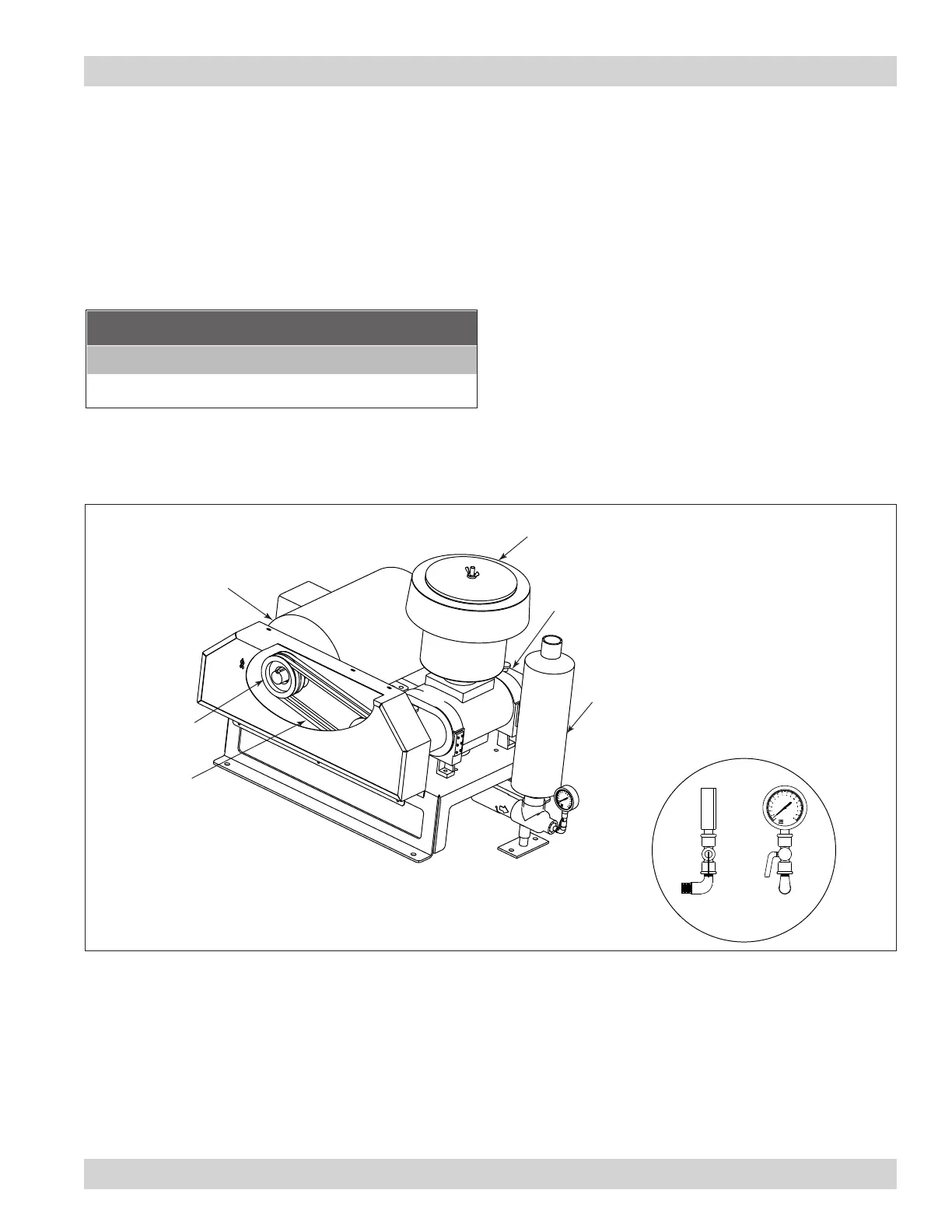

Positive-Displacement Blower Assembly (Isometric View)
Gauge Detail
intake filter/silencer
positive-displacement blower
discharge silencer
motor
sheave
v-belt
Air Supply
A positive-displacement (PD) blower provides the air used
for lter cleaning and is sized for each model‘s cleaning air
requirements. The PD blower should be installed on a level
surface. Follow the installation instructions provided with the
positive-displacement blower.
