REMOTE CONTROLLER PROGRAMMING

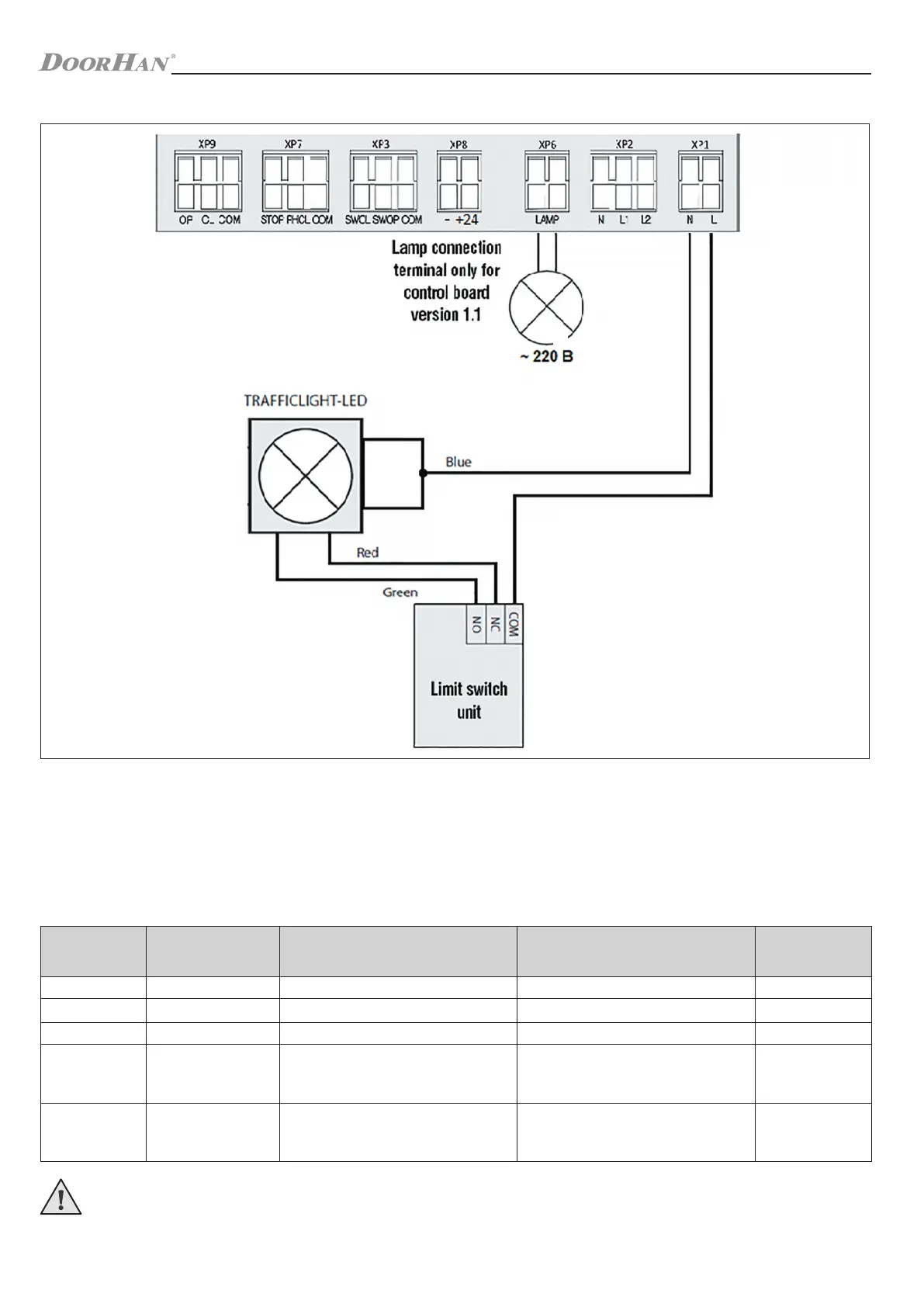

Diagram of PCB-SH, traffic light and lamp
2. REMOTE CONTROLLER PROGRAMMING
2.1. SELECTING THE OPERATING MODE
Selection of operating mode is by pressing of button “P”. Number of clicks will correspond to number of selected operat-
ing mode. The Program indicator shows the selected operation mode, the number of flashes corresponds to the number of the
preset mode:
Operating
mode
Program indicator
flashes
Gate
opening
Gate
closing
Automatic
closing
1 one time pulse pressing of Open button pulse pressing of Close button no
2 two times pulse pressing of Open button pulse pressing of Close button no
3 three times holding of Open button holding of Close button no
4 four times
pulse pressing of Open button;
stepped behaviour
(open–stop–close)
pulse pressing of Close button no
5 five times
pulse pressing of Open button;
stepped behaviour
(open–stop–close)
pulse pressing of Close button yes
NOTE: it is recommended to use pulse operation mode for door closing (modes 2, 4, 5) only when safety photocells are
available. It is possible to use an external radio receiver only in modes 4 or 5.
