Maintenance Section
G 96
In diagnostic mode selected parameter is visualized
as follows:
- In the area dedicated to speed and alarm
signals, appears parameter number( flashing)
- Its actual value is displayed in the area reserved
to the time meter.
In particular, if the selected parameter is:
Analogue input: COMPACT display shows the
parameter value, expressed in the
unit of Table 11
Digital input: if the command activated by the
operator corresponds to the
parameter selected, the value of the
quantity is visualized.
Other way the symbol e (error)
appears, except in following case:
- Seat switch active, for any selected
digital input..
To exit diagnostic mode, type ENTER key again.
NOTE: If an alarm occurs when diagnostic mode is
enabled, and the system is working as
usual, display returns automatically to its
typical visualization mode. However you
can enter diagnostic mode again, pressing
ENTER key (for 3 consecutives), until the
last parameter displayed before exiting is
visualized.
If the selected parameter is a temperature, also
thermal alarm symbol is visualized.

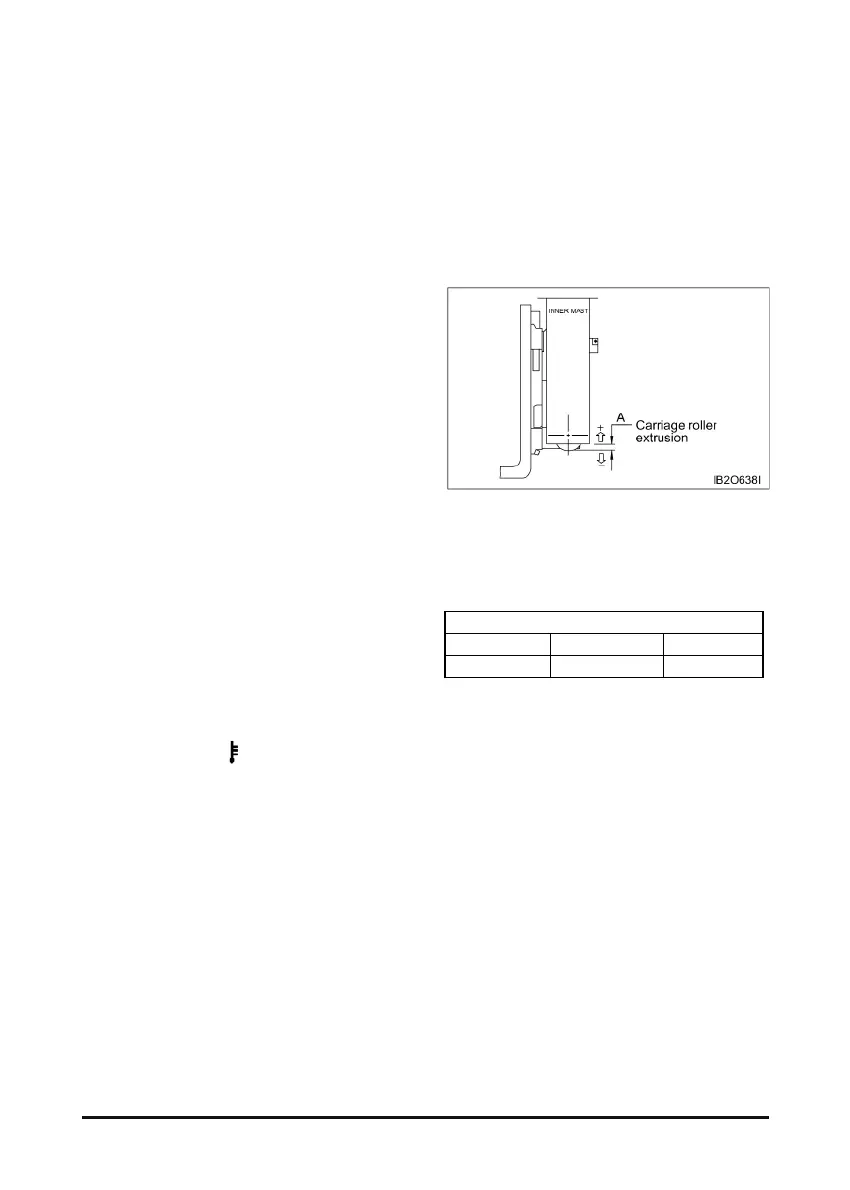

Carriage Roller Extrusion – Adjust
1. Set the mast vertical.
2. Lower the carriage completely.
3. On full free lift and full free triple lift models, the
bottom of the inner mast must be flush with the
bottom of the stationary mast.
4. Measure the distance from the bottom of the
inner upright to the bottom of carriage bearing.
5. The measurement (A) must be as follows in
Chart below..
Height of carriage roller extrusion (A)
STD mast FF mast FFT mast
-6 8 8
