Power Train Disassembly & Assembly

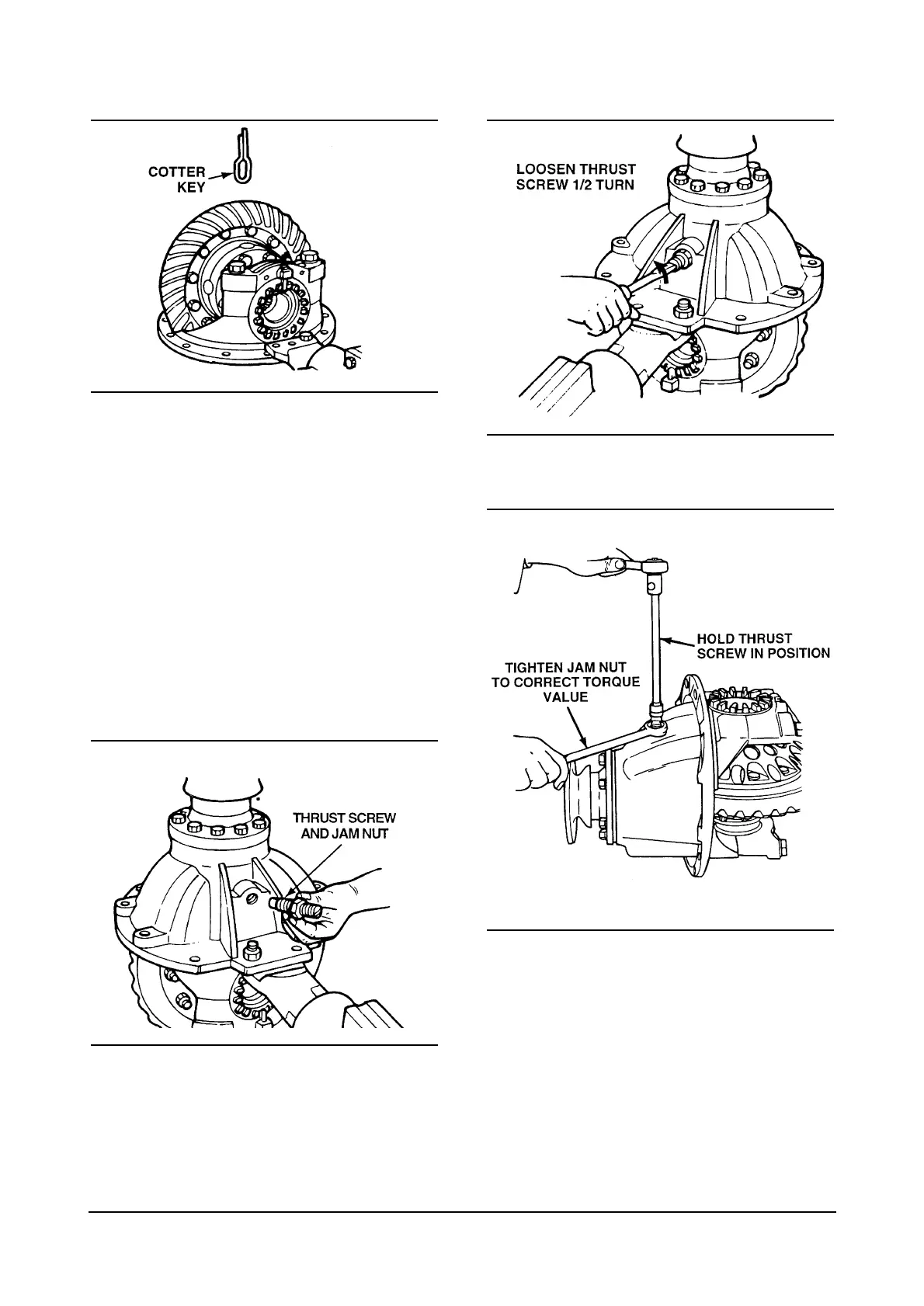

Install cotter keys between lugs of the adjusting ring
and through the boss of the bearing cap. Bend the
two ends of the cotter key around the boss.
Install and Adjust the Thrust
Screw
Specification
•
Clearance between thrust screw and ring gear
– 0.025 to 0.045 inch (0.65-1.14 mm).
•
Loosen the thrust screw 1/2 turn or 180˚.
1. Rotate the carrier in the repair stand until the back
surface of ring gear is toward the top.
2. Install the jam nut on the thrust screw, one half the
distance between both ends.
3. Loosen the thrust screw 1/2 turn,180˚.
4. Tighten the jam nut to the correct torque value
against the carrier. Tightening torque : 148 to 210
lb•ft (200 to 285 N•m).
41
